page 12
Tools Needed Qty
Hardware Needed Qty
To connect the resaw to the power source:
1. Section 2: Circuit Requirements
page 12
When using a phase converter, the power
from the manufactured power leg (sometimes
called the wild wire) can fluxuate. Connect the
manufactured power leg to the S terminal to pre-
vent damage to the transformer. The wire from the
S terminal can handle some fluxuation because it
goes directly to the motor. The power going to the
R and T terminals goes to the transformer and
must be consistent to prevent damage.

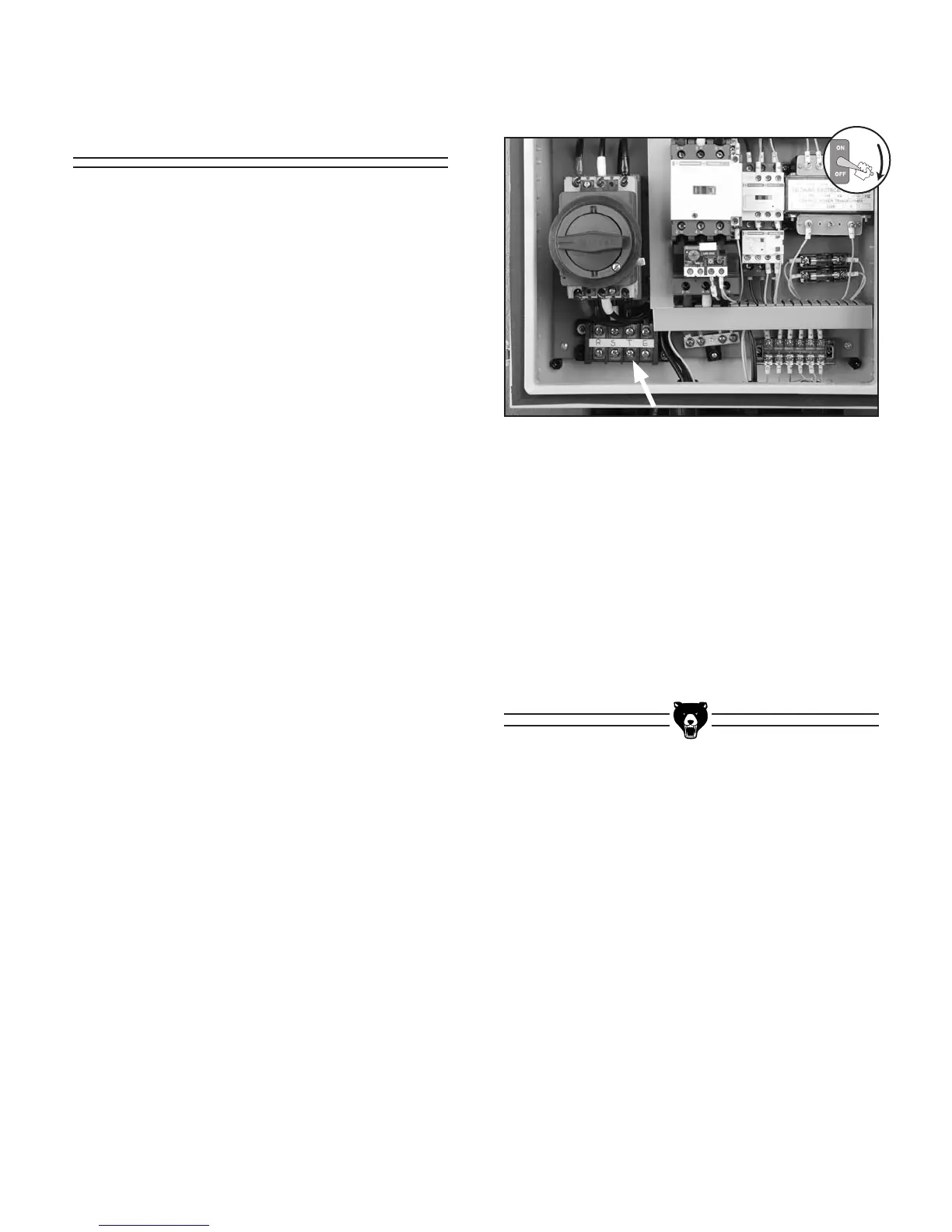

Figure 23.
3.
4. Shut off the main power at the power
source circuit breaker.
5.
6.
Connecting to
Power
2.
Figure 23
