G0548 2 HP Dust Collector -13-

Components and Hardware Needed: Qty

Base ..................................................................1

Casters ..............................................................4

Flange Bolts

⁄16"-18 x

⁄2"..................................16

Tools Needed:

Wrench or Socket 12mm....................................1

To assemble the dust collector base:

1. Position the base upside down.

2. Secure the casters into the mounting brack-

ets under the base with the flange bolts

(Figure 7).

Components and Hardware Needed: Qty

Base ..................................................................1

Motor and Impeller ............................................1

Flange Bolts

⁄16"-18 x

⁄2"....................................4

Tools Needed:

Wrench or Socket 12mm....................................1

To assemble the motor and impeller:

1. Flip the base over on the casters and locate

the mounting holes for the motor and

impeller.

2. Position the motor and impeller on the base

and secure them with the flange bolts

(Figure 8).

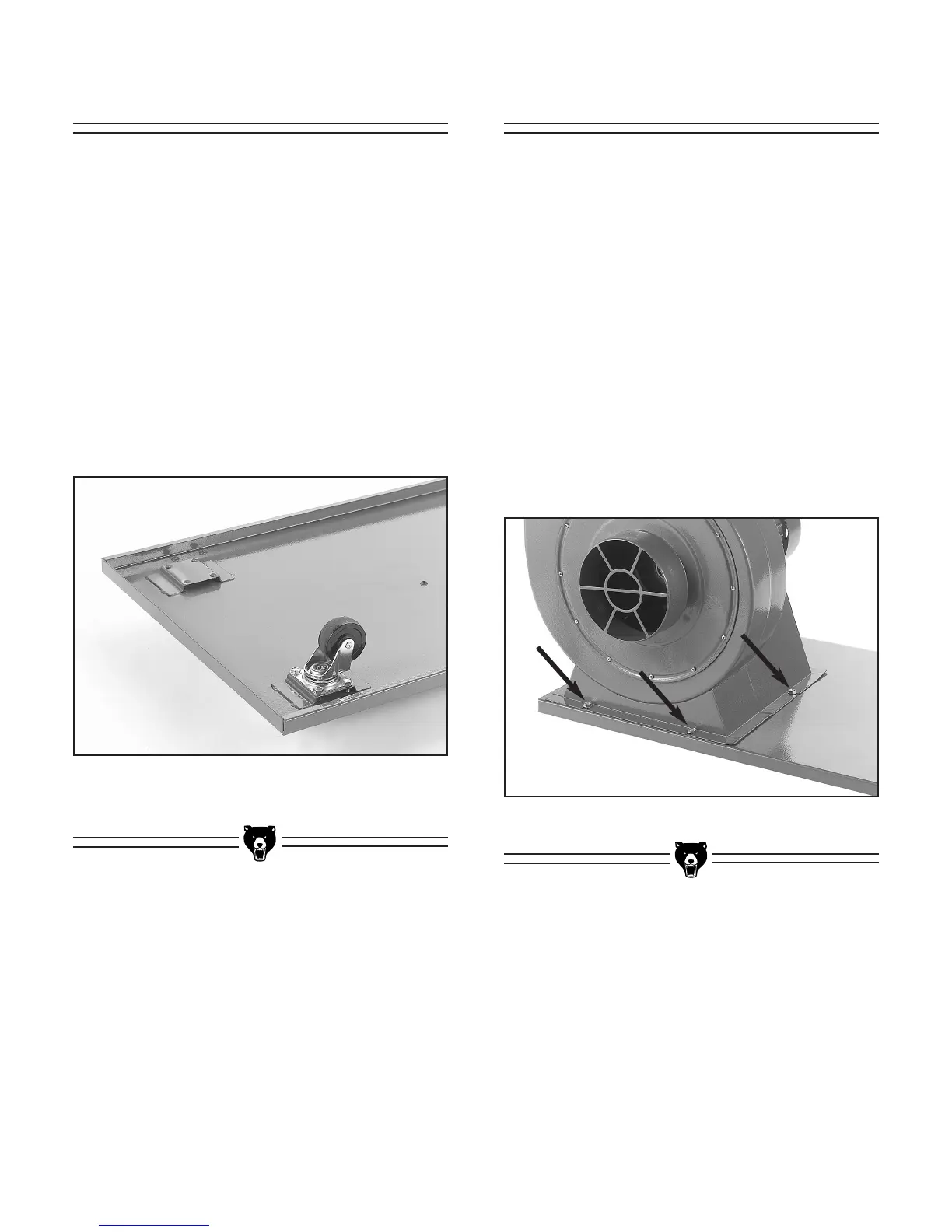

Figure 7. Caster installed on the base

mounting bracket.

Figure 8. Motor and impeller attached to base.

Motor and ImpellerBase
