-6- G0548 2 HP Dust Collector
The Model G0548 features a single phase 220V
2 HP motor.
Amperage Draw
220V .................................................... 12 Amps
Use the following guidelines when choosing a cir-
cuit breaker (circuit breakers rated any higher are
not adequate to protect the circuit):
Circuit Breaker
220V ..........................................15 Amp, 2 Pole

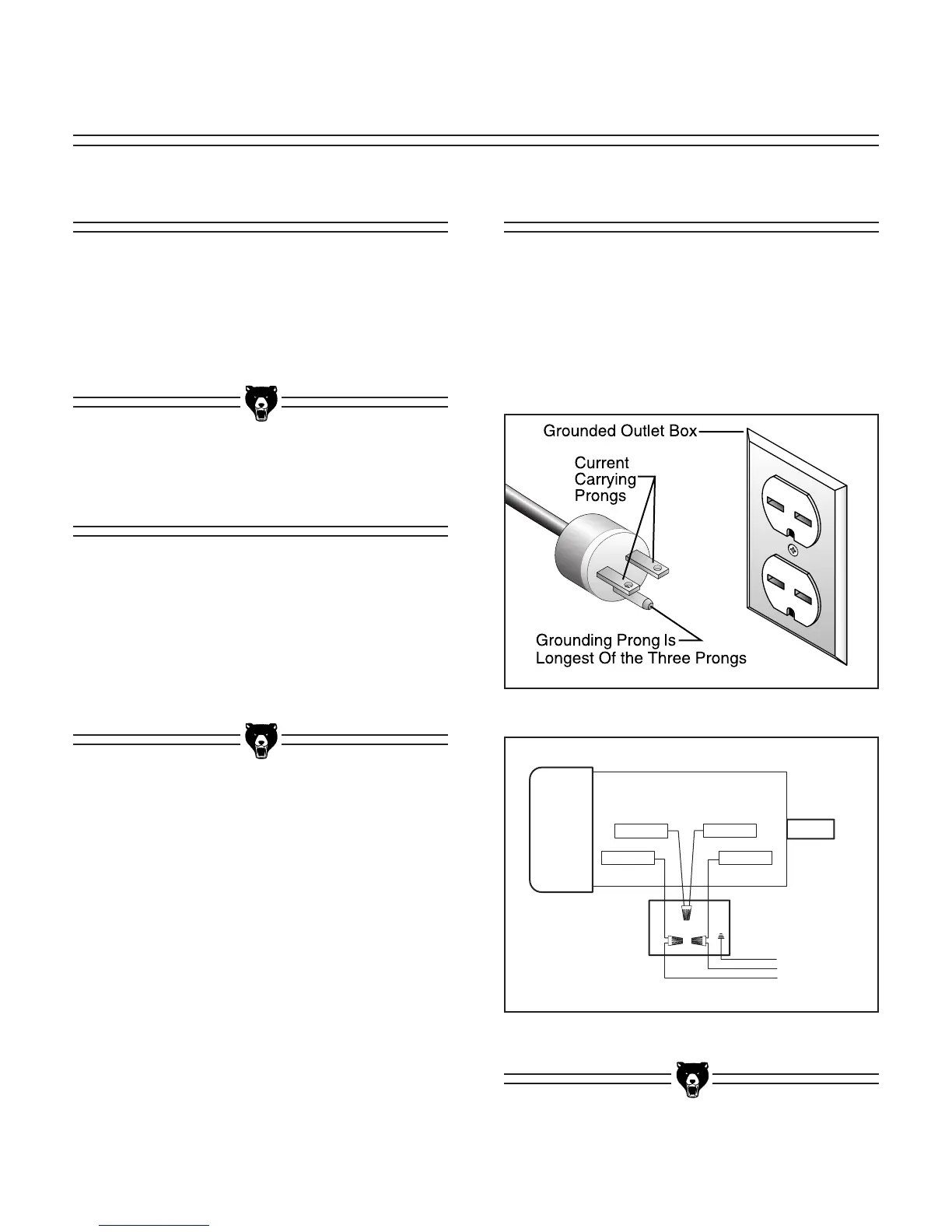

Figure 1. NEMA 6-15 plug and receptacle.
We recommend using a NEMA 6-15 plug (Figure
1). You may also “hard-wire” the dust collector
directly to your panel, provided you place a dis-
connect near the machine. Check the electrical
codes in your area for specifics on wiring require-
ments. The motor is wired according to the dia-
gram in Figure 1a.
Plug-Type
Circuit Breaker
Amperage Draw
SECTION 3: CIRCUIT REQUIREMENTS
Figure 1a. 220 wiring diagram.
