G0548 2 HP Dust Collector -17-

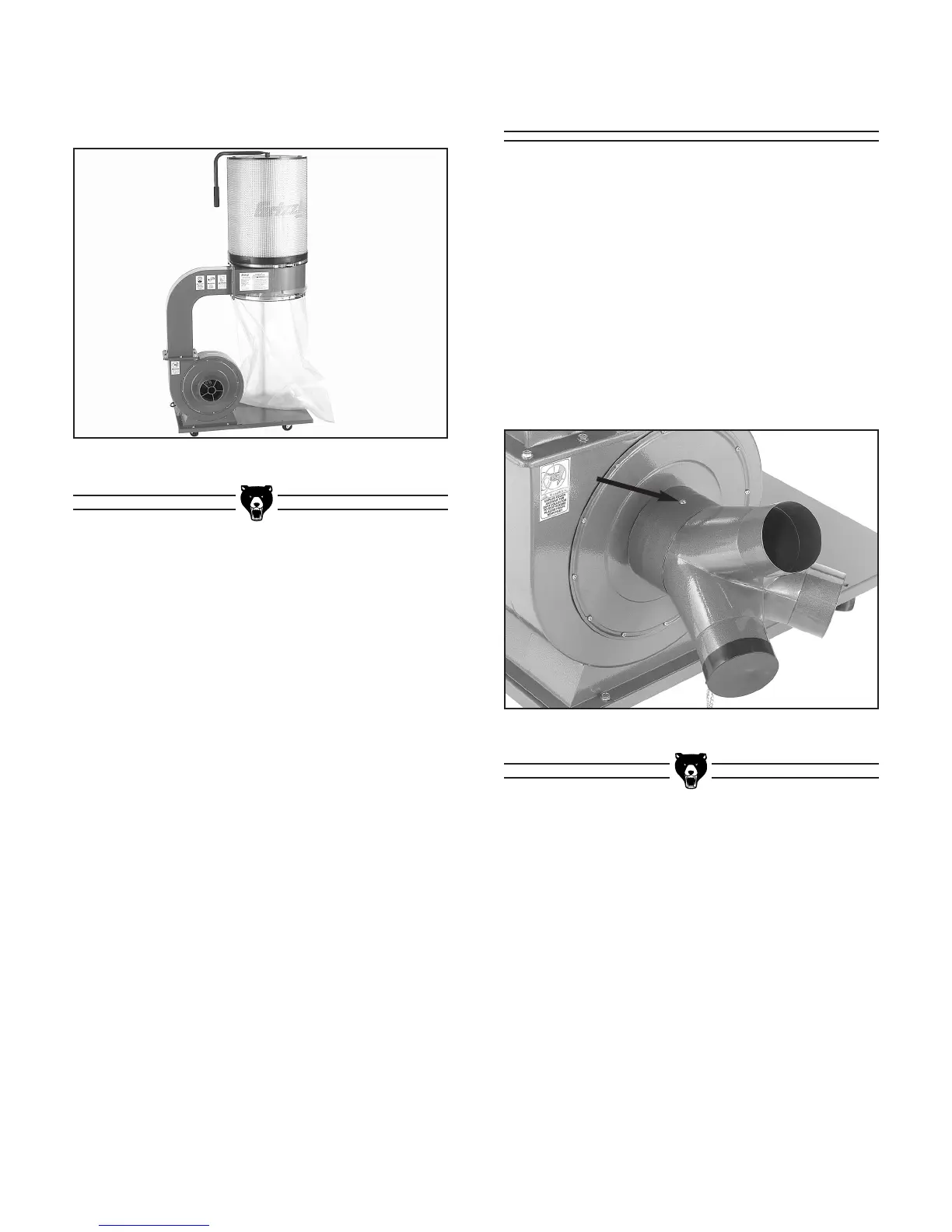

Figure 19. Lower collection bag installed.
3. Tighten the metal belt clamp around the nar-
row foam strip to seal and secure the lower
collection bag (Figure 19).
Inlet
Components and Hardware Needed: Qty
6" Inlet with Three 4" Ports ................................1
Phillips Head Tap Screw #10 x
3
⁄8" ....................1
Tools Needed:
Phillips Screwdriver ............................................1
To install the inlet:
1. Insert the inlet over the impeller intake hole.
2. Secure the inlet in place with the Phillips
head tap screw, (Figure 20).
Figure 20. Installed inlet.
To Next Page
