-16- G0548 2 HP Dust Collector

Collection Bag

Components and Hardware Needed: Qty

Clear Collection Bag ..........................................1

Metal Belt Clamp................................................1

Narrow Foam Strip ............................................1

Tools Needed:

Wrench or Socket 10mm....................................1

To install the collection bag:

1. Secure the narrow foam strip around the out-

side bottom rim of the collector and trim the

excess.

2. Hook the clear collection bag on the hooks

around the bottom of the collector. (Figure

18).

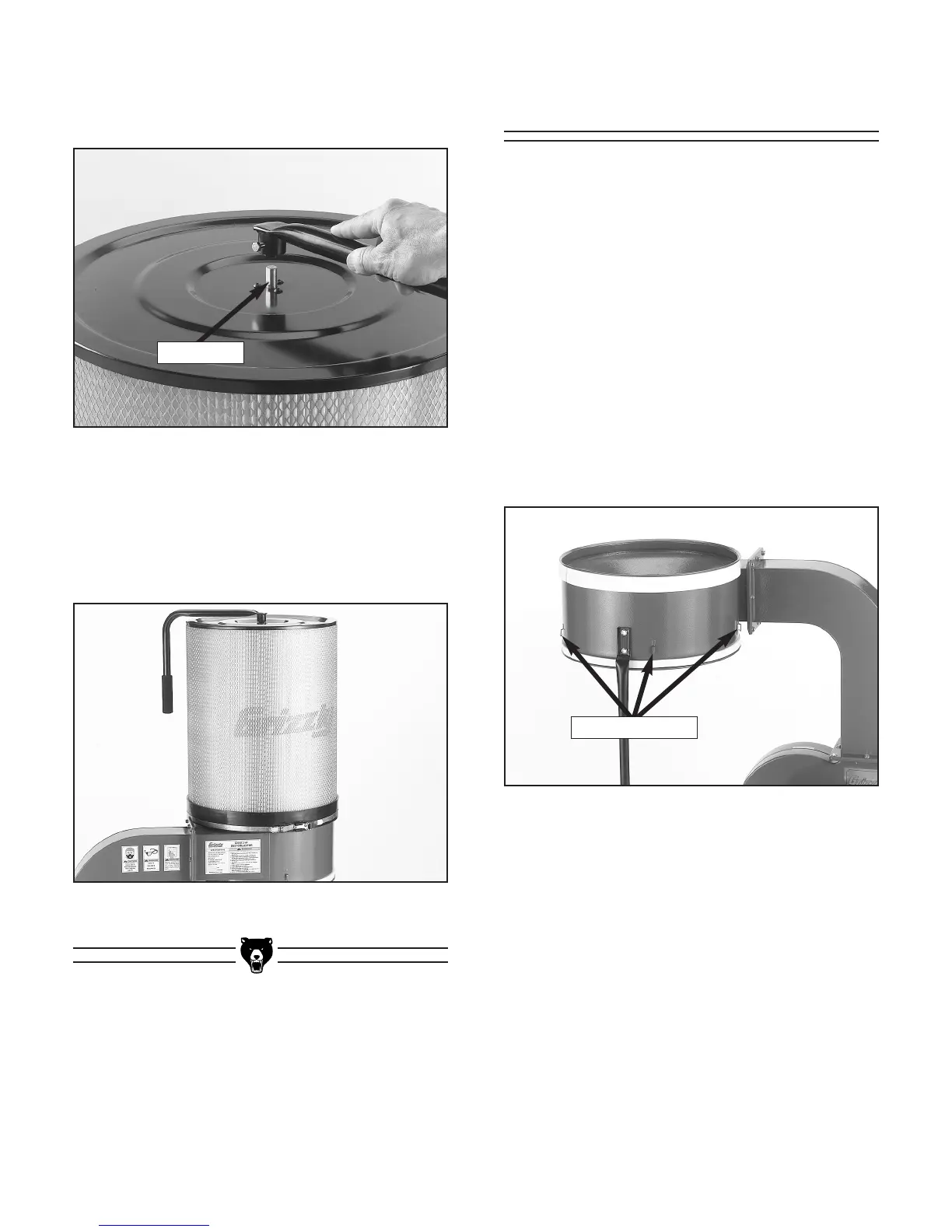

Figure 16. Installing canister handle.

Figure 18. Trimmed foam strip and collector

hook locations.

Figure 17. Installed and secured canister filter.

4. Place the canister filter on top of the collec-

tor.

5. Position the metal belt clamp around the bot-

tom of the canister filter so it will compress

around the foam strip (Figure 17).

3. Install the handle onto the top of the canister

filter by tightening the hex bolt against the

flat of the shaft (Figure 15).

Shaft Flat

Collector Hooks
