G0548 2 HP Dust Collector -15-

Components and Hardware Needed: Qty

Collector ............................................................1

Flange Bolts

⁄16"-18 x

⁄2"..................................10

Rubber Gasket ..................................................1

Tools Needed:

Wrench or Socket 12mm....................................1

To install the collector:

1. Place the rubber gasket in the outlet of the

collector.

2. Secure the collector to the metal intake with

8 flange bolts, (Figure 12).

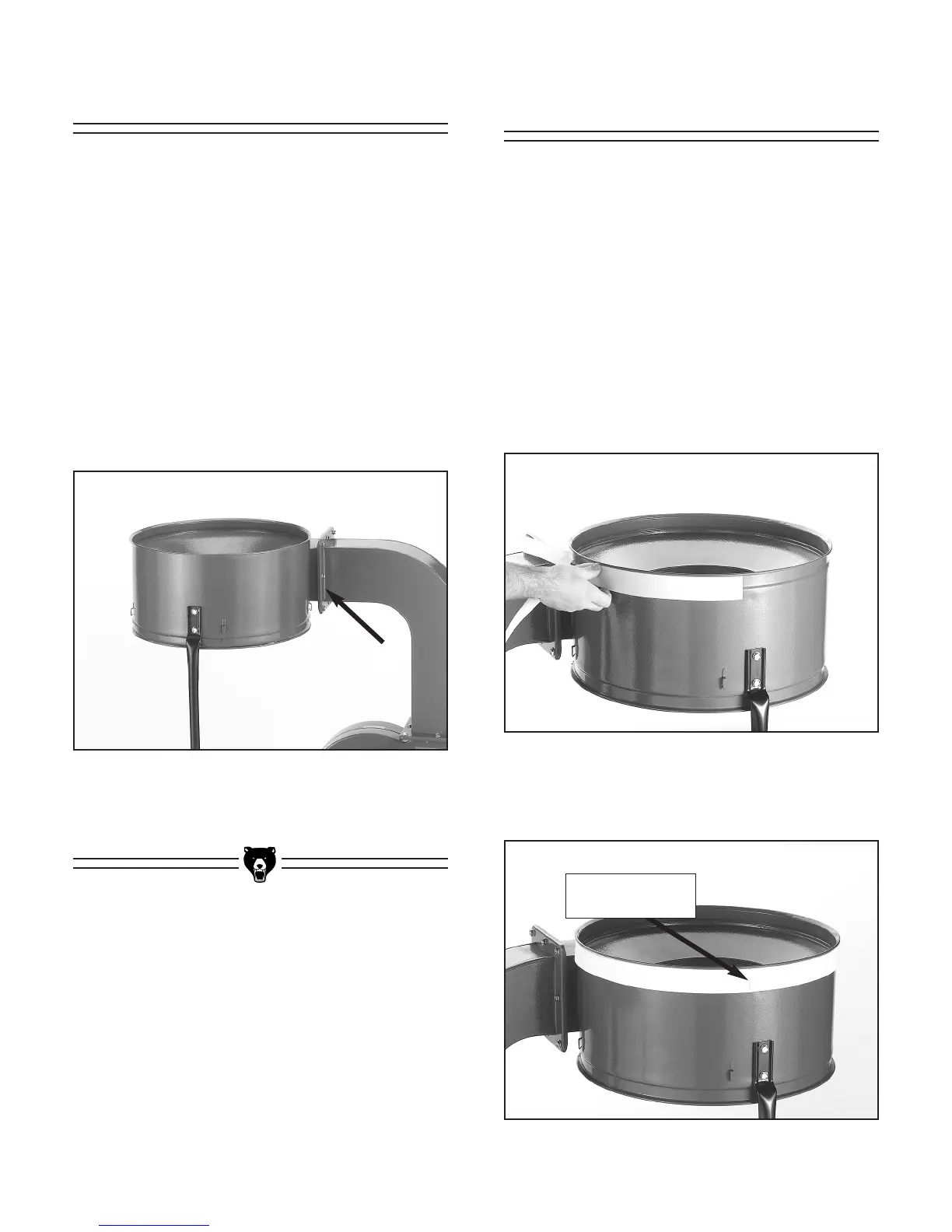

Figure 12. Collector installed.

Components and Hardware Needed: Qty

Canister Filter ....................................................1

Canister Filter Cleaning Handle ........................1

Belt Clamp..........................................................1

Wide Foam Strip ................................................1

Tools Needed:

Wrench or Socket 10mm....................................1

To install the canister:

1. Secure the wide foam strip around the out-

side top rim of the collector as shown in

Figure 14.

Figure 14. Installing wide foam strip.

Figure 15. Trimmed foam strip.

2. Trim the excess foam strip so the ends come

together evenly, (Figure 15).

3. Attach the canister support to the side of the

collector with the 2 remaining flange bolts.

Canister FilterCollector Ring

Ends Matched

Together Evenly
