Grizzly G0602 User Manual

-80-
Model G0602/G0752 (Mfg. Since 11/12)

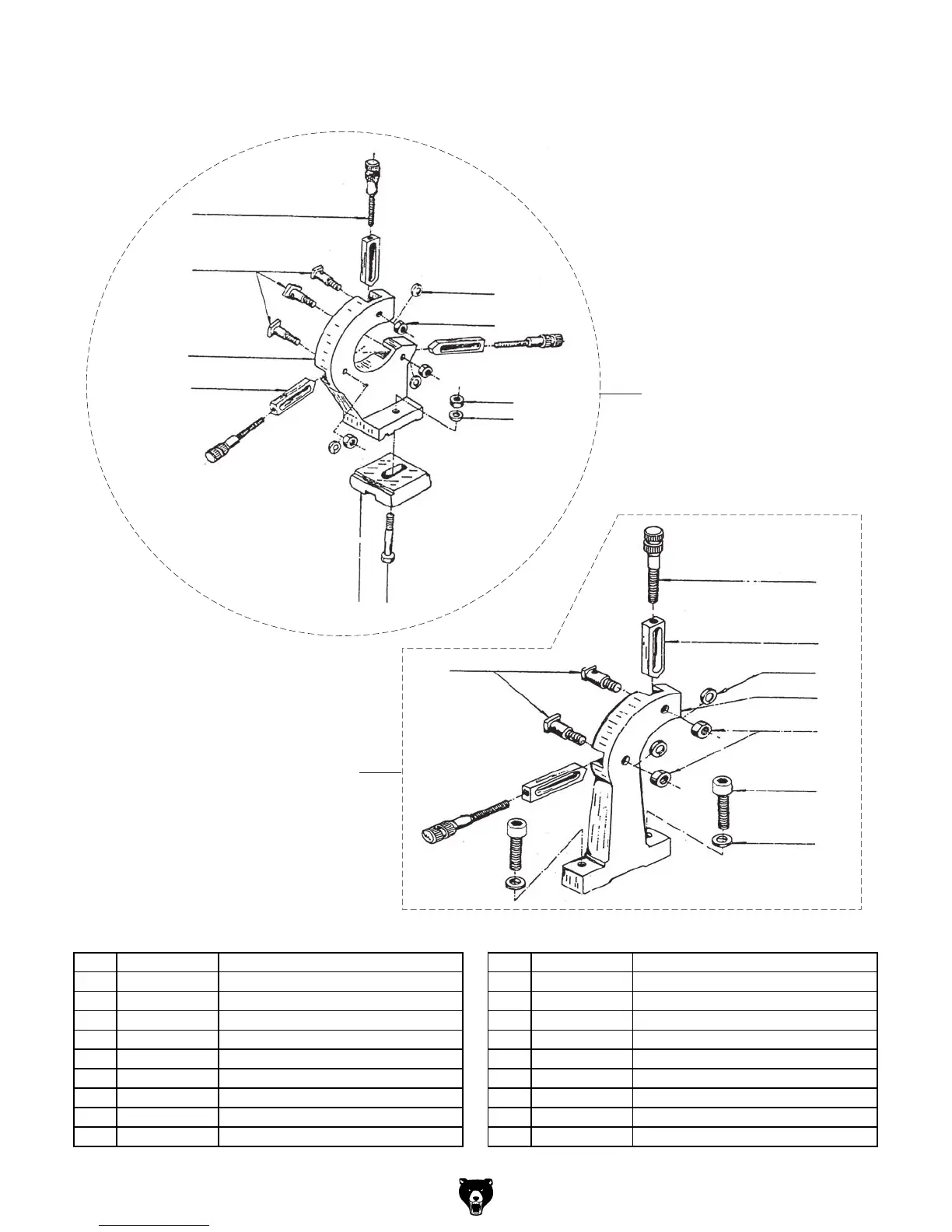

Steady Rest & Follow Rest
501
502
503
504
505
506
507
508
509
511
512
513
514
511A
515
516
517
518
510
501A
REF PART # DESCRIPTION REF PART # DESCRIPTION
501A P0602501A STEADY REST ASSEMBLY 510 PN09M HEX NUT M12-1.75
501 P0602501 STEADY REST CASTING 511A P0602511A FOLLOW REST ASSEMBLY
502 P0602502 FINGER 511 P0602511 FOLLOW REST CASTING
503 P0602503 SHOULDER T-BOLT 512 P0602502 FINGER
504 PLW03M LOCK WASHER 6MM 513 P0602503 SHOULDER T-BOLT
505 PN01M HEX NUT M6-1 514 P0602506 ADJUSTING SCREW
506 P0602506 ADJUSTING SCREW 515 PN01M HEX NUT M6-1
507 P0602507 CLAMPING PLATE 516 PLW03M LOCK WASHER 6MM
508 PB125M HEX BOLT M12-1.75 X 65 517 PCAP40M CAP SCREW M8-1.25 X 35
509 PW06M FLAT WASHER 12MM 518 PW01M FLAT WASHER 8MM

Grizzly G0602 Specifications

General

Number of Spindle Speeds	6
Motor	1 HP
Voltage	110V
Swing Over Bed	10 inches
Spindle Bore	1 inch
Spindle Speed	70-2000 RPM
