G0612 6" Jointer
-17-
Damage to your eyes, lungs, and ears could
result from using this machine without
proper protective gear. Always wear safety
glasses, a respirator, and hearing protection
when operating this machine.
Loose hair and cloth-
ing could get caught in
machinery and cause seri
-
ous personal injury. Keep
loose clothing and long
hair away from moving
machinery.
Operation Safety
SECTION 4: OPERATIONS
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY REC
-
OMMEND that you read books, trade maga
-
zines, or get formal training before begin
-
ning any projects. Regardless of the con
-
tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.
Basic Parts and
Controls
This section covers the basic parts and controls
used during routine operations. Refer to Figures
21
and 22 for basic parts and control locations.

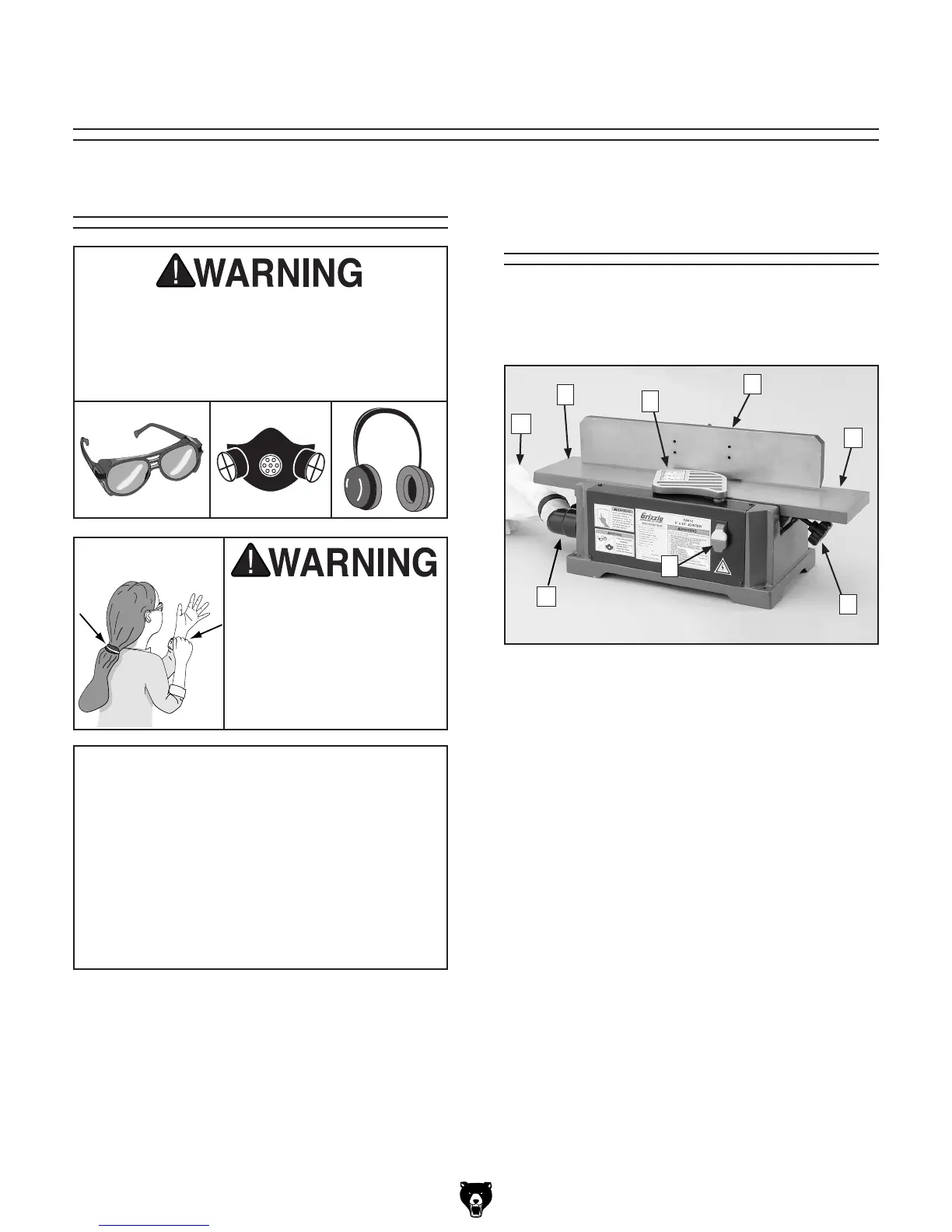

Figure 21. G0612 parts and controls (front view).
A. Outfeed Table
B. Cutterhead Guard
C. Fence
D. Infeed Table
E. Depth of Cut Adjusting Knob
F. ON/OFF Switch
G. Dust Collection Chute
H. Dust Collection Bag
E
G
A
B
C
D
F
H
