Model G0885 (Mfd. Since 04/19)
-27-

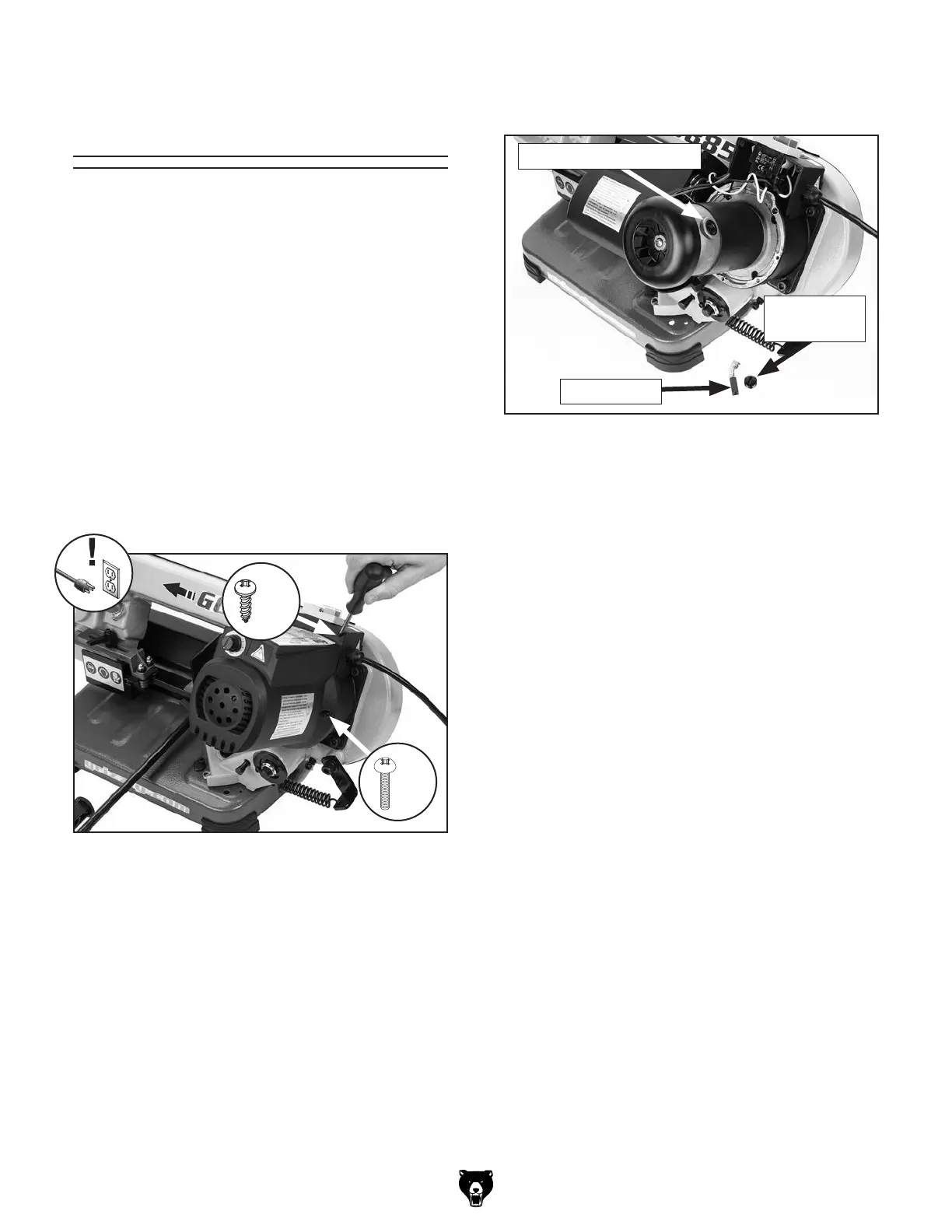

Figure 31. Motor brush cap location.
Replacing Motor
Brushes
The motor brushes wear with use. When they
require replacement, the motor will stop operat-
ing correctly, fail to start, or cut in and out during
operation. Always replace both brushes at the
same time.
Item(s) Needed Qty
Flat Head Screwdriver ....................................... 1
Phillips Head Screwdriver #1 ............................. 1
Phillips Head Screwdriver #2 ............................ 1
To inspect/replace motor brushes:
3. Remove upper and lower motor brush caps
and motor brushes, as shown in Figure 31.
4. Replace brushes (2) and re-install brush
caps.
5. Re-attach motor cover and secure with
screws.
Figure 30. Removing motor cover.
1. DISCONNECT MACHINE FROM POWER!
2. Take off motor cover by removing 5 screws
(see Figure 30).
x 2
x 3
Brush Location (1 of 2)
Motor Brush
Motor Brush
Cap
