-4-
Model G0885 (Mfd. Since 04/19)
Controls &
Components
C. Trigger Switch: Power switch must be
turned ON and the trigger must be pulled to
move blade.
D. Power Switch: Supplies power to the
bandsaw.
E. Variable-Speed Blade Dial: Adjusts blade
speed from 100-260 FPM.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.

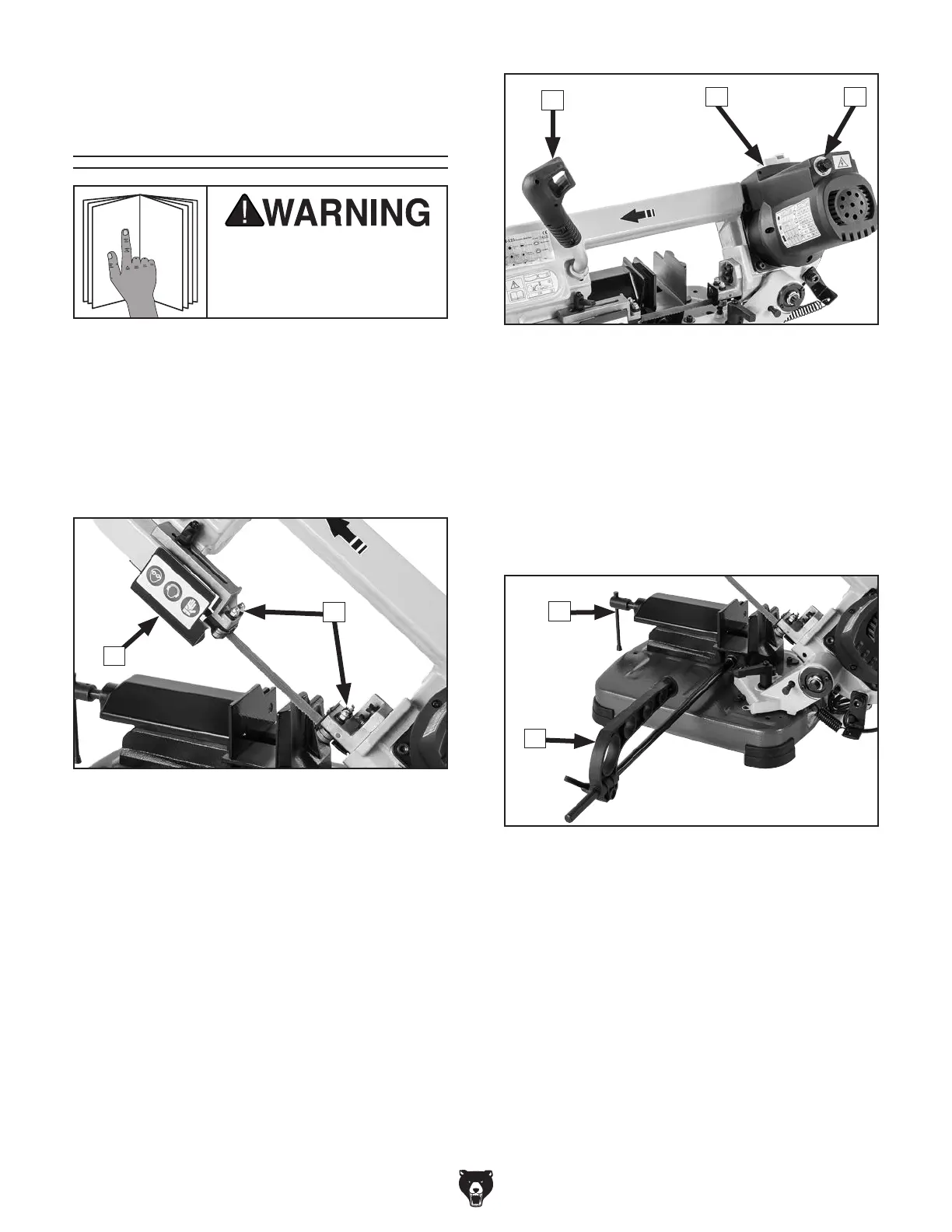

Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
A. Blade Guard: Guard covers unused part
of blade to minimize operator exposure to
blade.
B. Blade Guide Bearing Assemblies: Keeps
the cut perpendicular to the cutting sur-
face. There are two assemblies—a left
and a right assembly. The blade guide lock
handle secures the left-hand blade guides in
position.
Control or Component Description
Figure 1. Blade guard & blade guide bearing
assemblies.
A
B
F. Vise: Secures workpiece material in position
for cutting operation.
G. Work Stop: Positions for repeatable cuts.
The work stop lock handle secures work stop
position.
Figure 3. Vise components.
F
G
Figure 2. Power and speed controls.
D E
C
