Grizzly G0885 User Manual

Model G0885 (Mfd. Since 04/19)
-33-
READ ELECTRICAL SAFETY
ON PAGE 32!

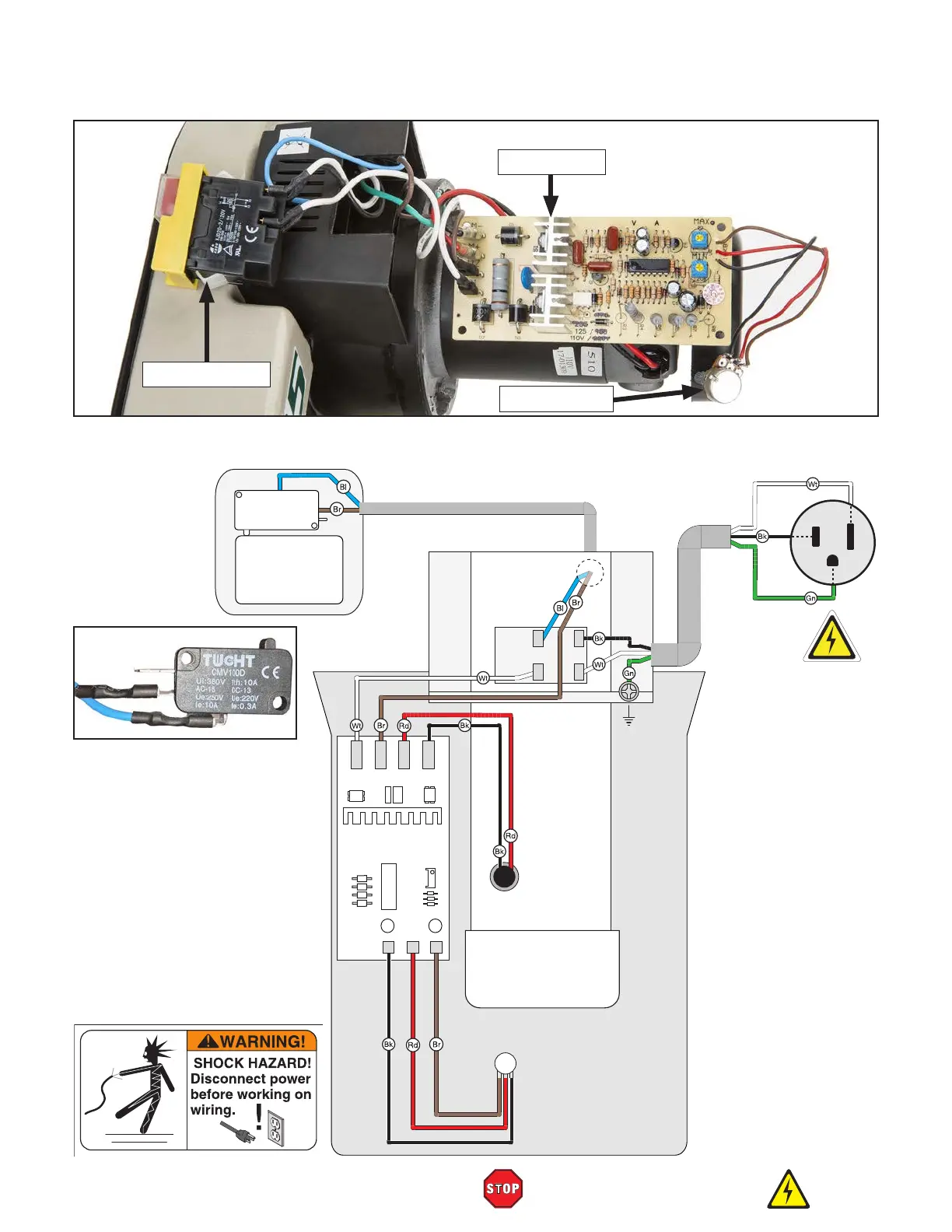

Wiring Diagram
COM
1/2HP
Motor
Ground
Neutral
Hot
Ground
120 VAC
5-15 Plug
ON/OFF Switch
KEDU KJD20-2
120V
P1 P2 M+ M-
Circuit Board
14
24 23
13
Trigger Switch
TWCHT
CMV100D
220V
Handle
Motor Cover
Potentiometer
B10K
NO
NC
Figure 36. Trigger switch.
Figure 35. ON/OFF switch connected to circuit board and potentiometer.
Circuit Board
Potentiometer
ON/OFF Switch
