Setting 45° Stop Collar
1. DISCONNECT MACHINE FROM POWER!
2.
Raise blade as high as it will go, then tilt it
towards 45° until it stops and cannot be tilted
any more.
3. Place a 45° square against table and blade
so it contacts blade evenly from bottom to
top, as shown in Figure 115. Make sure a
blade tooth does not obstruct placement of
square.

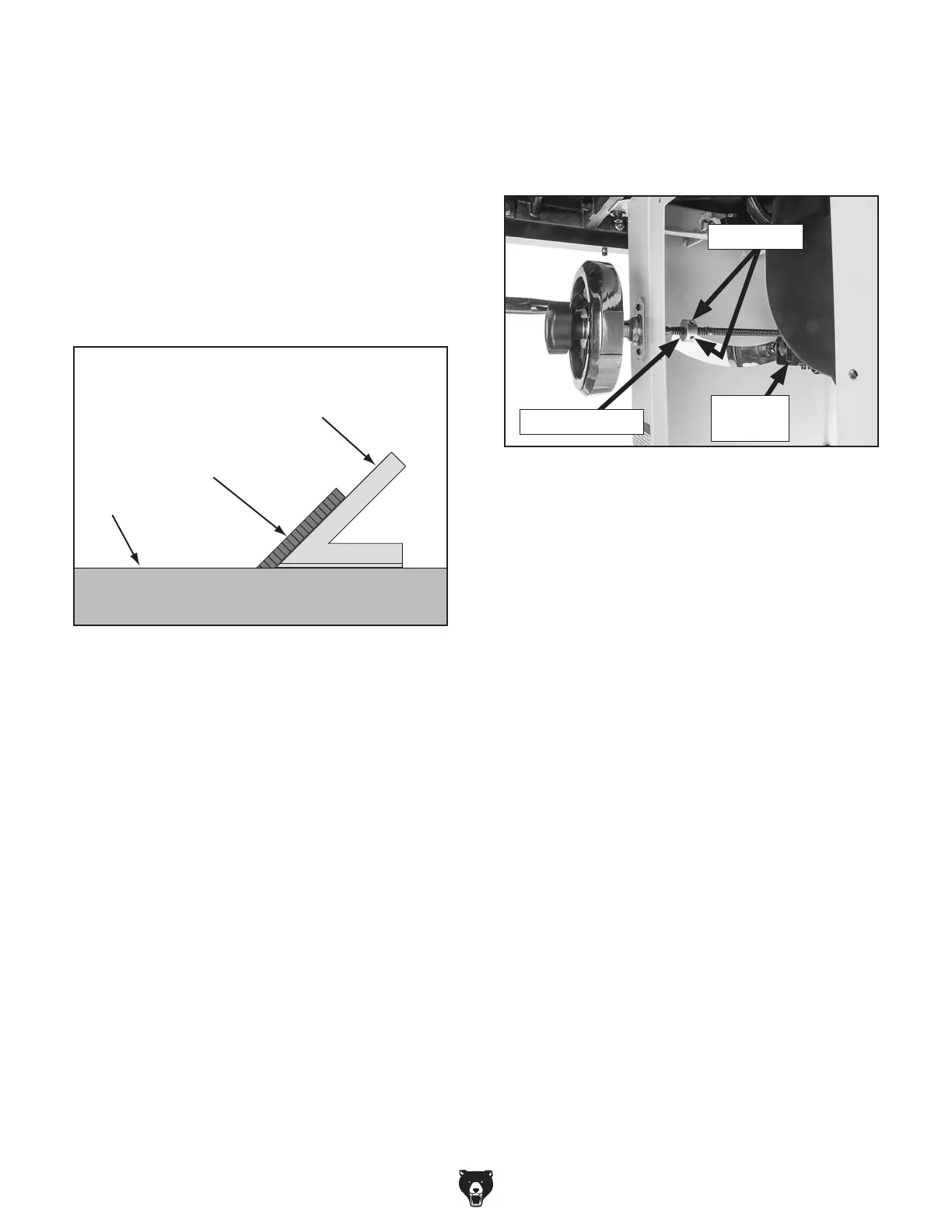

Figure 115. Checking blade at 45°.
Blade
45° Square
Table
— If blade is 45° to table, then adjustments
do not need to be made.
— If blade is not 45° to table, you will need
to adjust 45° stop collar. Proceed to next
step.
4.
Tilt blade to 30°, so there is room for stop
collar to move.
6. Place a 45° square against blade, as shown
in Figure 115, then adjust blade until it is
exactly 45° to table.
7.
Without turning blade tilt leadscrew, finger-
tighten 45° stop collar against trunnion brack-
et, then tighten two set screws to secure col-
lar position.
8. Repeat Steps 2–3 to verify that collar adjust-
ment you made was correct. When adjust-
ment is satisfactory, close right access cover.
5.
Open right access cover, loosen set screws
on 45° stop collar (see Figure 116), then turn
collar one turn away from trunnion bracket.
This will allow you to adjust blade to exactly
45° in next step.
Figure 116. Location of 45° stop collar (right
access cover removed).
Trunnion
Bracket
45° Stop Collar
Set Screws
