Grizzly G0899 - Wiring Diagram

-78-
Model G0899 (Mfd. Since 10/20)
READ ELECTRICAL SAFETY
ON PAGE 77!

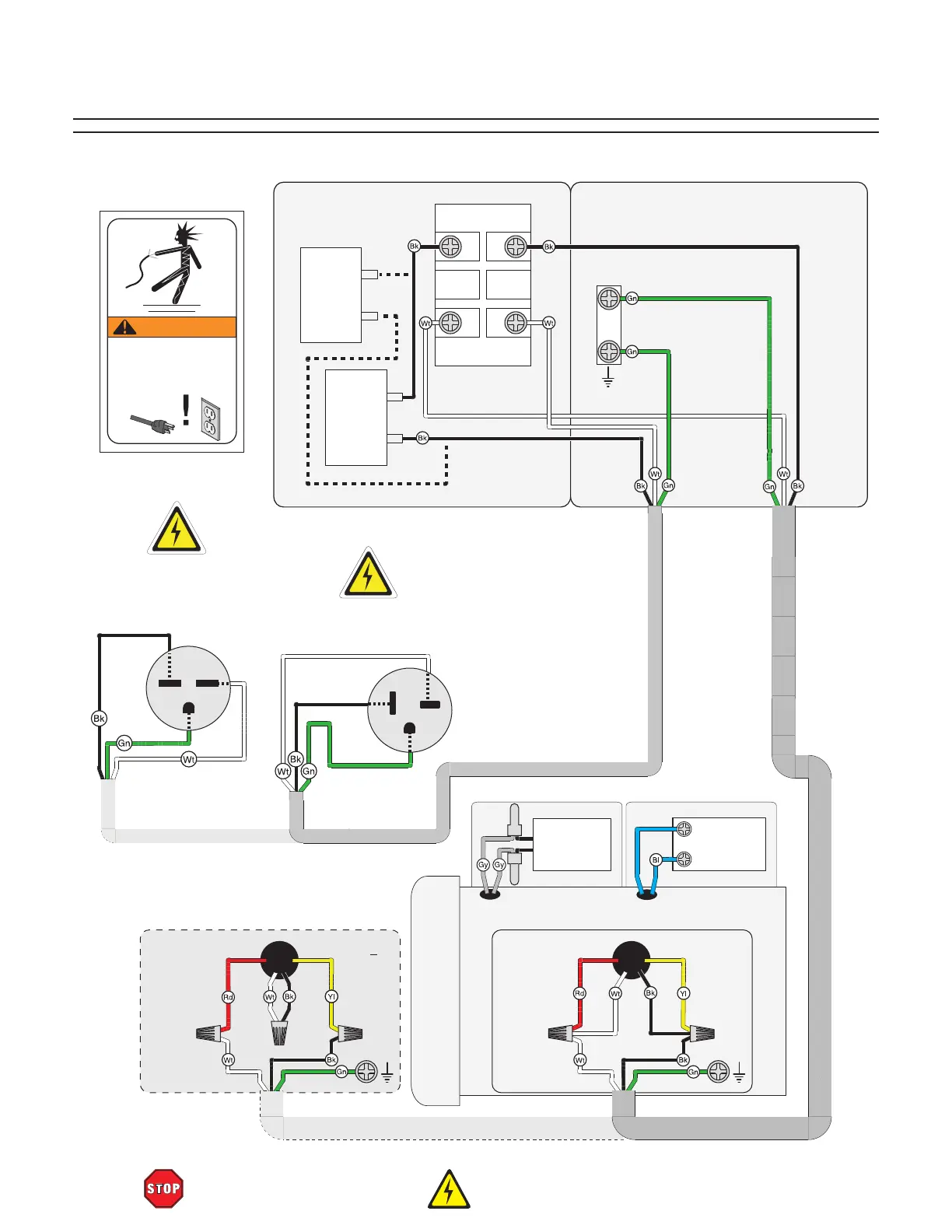

Wiring Diagram
Motor Rewired
for 230V
GND
Start
Capacitor
200MFD
125VAC
115V/230V MOTOR
(Rewired for 230V)
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
Motor Prewired
for 115V
GND
Run
Capacitor
30uF-d
350VAC
Neutral
Hot
Ground
115 VAC
5-20 Plug
Ground
Hot
Hot
6-15 PLUG
(As Recommended)
230 VAC
Rewired for 230V
SWITCH BOX
ON/STOP
SWITCH
Rewired
for 230V
GND
Circuit Breaker
KUOYUH 88
20A 125V/250V
Circuit Breaker
KUOYUH
10A 125V/250V
A1B1
B2
B3 A3
A2
