Grizzly G1026 Parts List

G1026 3 H.P. Shaper -C-
REF PART # DESCRIPTION
029 P1026029 MAIN FENCE HOUSING
030 PSB14 CAP SCREW
3
⁄8"-16 x 1"
031A
P1026031A
FENCE MOUNT LEFT
032 P1026032 SWITCH MOUNT BRACKET
033 PSW01 3 H.P. MAGNETIC SWITCH
035 PSW03 FWD/REV SWITCH
036 P1035034 BRACKET
037 P1035031 SWITCH BOX
038 P1071075 STRAIN RELIEF
039 P1035033 SWITCH BOX COVER
040 PHTEK1 SELF-TAPPING SCREW
041 P1026041 SCALE
042 P1026042 GROMMET
043 P1026043 MOTOR CORD
044 P1026044 POWER CORD
045 PSW01-1 REPLACEMENT SCREW
046 P1026046 LOCK HANDLE
047 G8588 GRIZZLY NAMEPLATE
048
P1026048
ID/WARNING LABEL
049 PB16 HEX BOLT
3
⁄8"-16 X 1
1
⁄4"
050 P1026050 ELECTRICITY LABEL
051 P1026051 SAFETY GLASSES LABEL
052 P1026052 READ MANUAL LABEL
053 P1026053 HAND/CUTTER LABEL
054 P1026054 UNPLUG MACHINE LABEL
001 P1026001 STAND BODY
002 P1026002 EXTENSION WING
003 PB18 HEX BOLT
3
⁄8"-16 x 1
1
⁄4"
004 PLW04 LOCK WASHER
3
⁄8"
005 PS07 PHLP HD SCR
1
⁄4"-20 x
3
⁄8"
006 P1026006 COVER
007 PB21 HEX BOLT
3
⁄8"-16 x
3
⁄4"
008 PW02 FLAT WASHER
3
⁄8"
009 P1026009 TABLE INSERT
010 P1026010 TABLE INSERT
011 P1026011 TABLE INSERT
012 P1035012 STARTING PIN
013 PFH02 FLAT HD SCREW 10-24 x 1"
014 1035010 BARREL SCREW
015 P1026015 TABLE
016 PFH07 FLAT HD SCREW
5
⁄16"-18 x 1
1
⁄2"
018A
P1026018A
FENCE MOUNT RIGHT
021 PW07 FLAT WASHER
5
⁄16"
022 PN02 HEX NUT
5
⁄16"-18
023 PSS07 SETSCREW
1
⁄4"-20 x
1
⁄2"
024 PSB16 CAP SCREW
3
⁄8"-16 x
3
⁄4"
025 P1026025 HAND KNOB
3
⁄8"
026 PSS17 SETSCREW
5
⁄16"-18 x
5
⁄16"
027A
P1026027A
FENCE ADJ SCREW
028 P1026028 ADJ SCREW BRACKET
REF PART # DESCRIPTION

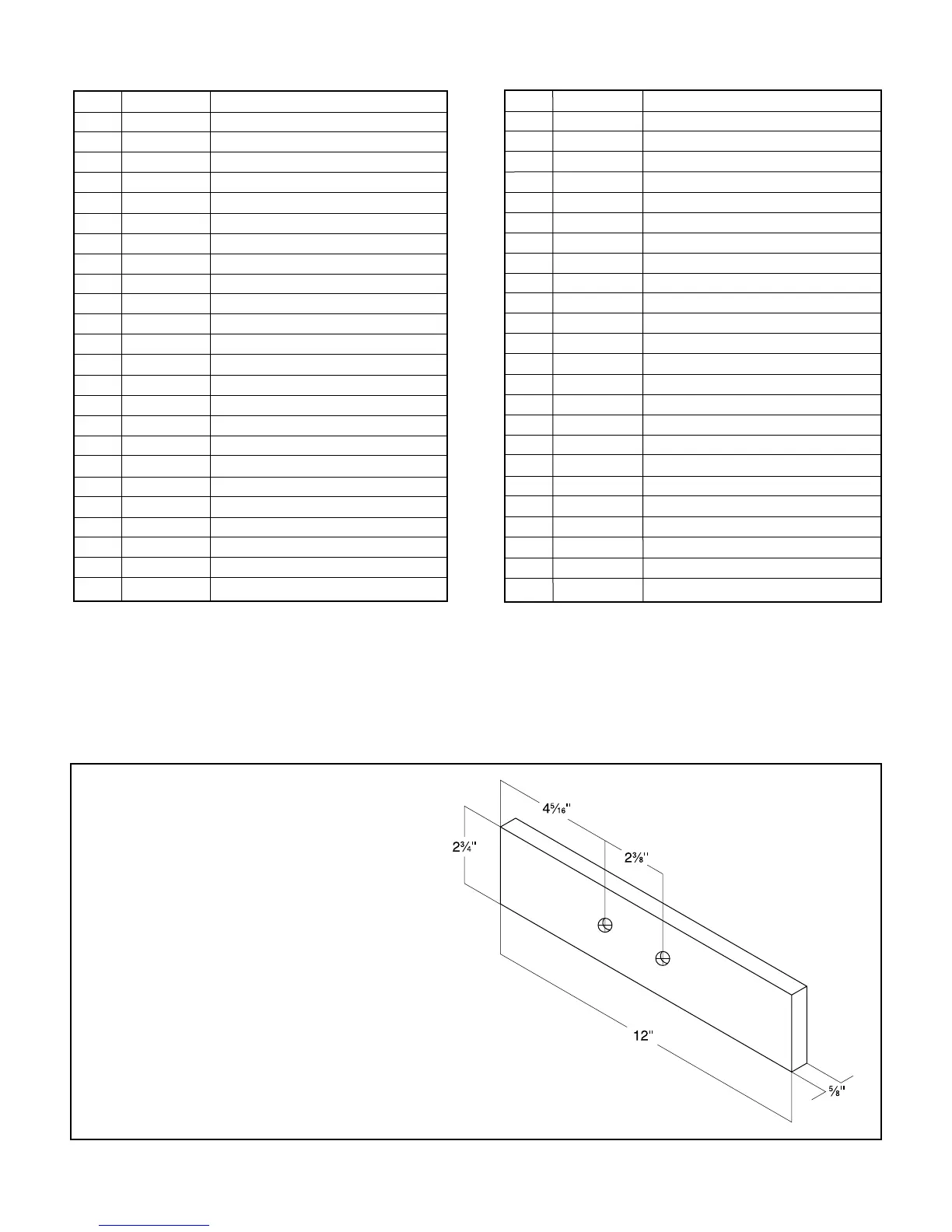

We regret to inform you that the wood
facing for the G1026 Shaper fences are
no longer available as a replacement
part. For your convenience we have
included a measured drawing so you may
construct you own. We apologize for any
inconvenience this may cause you.
