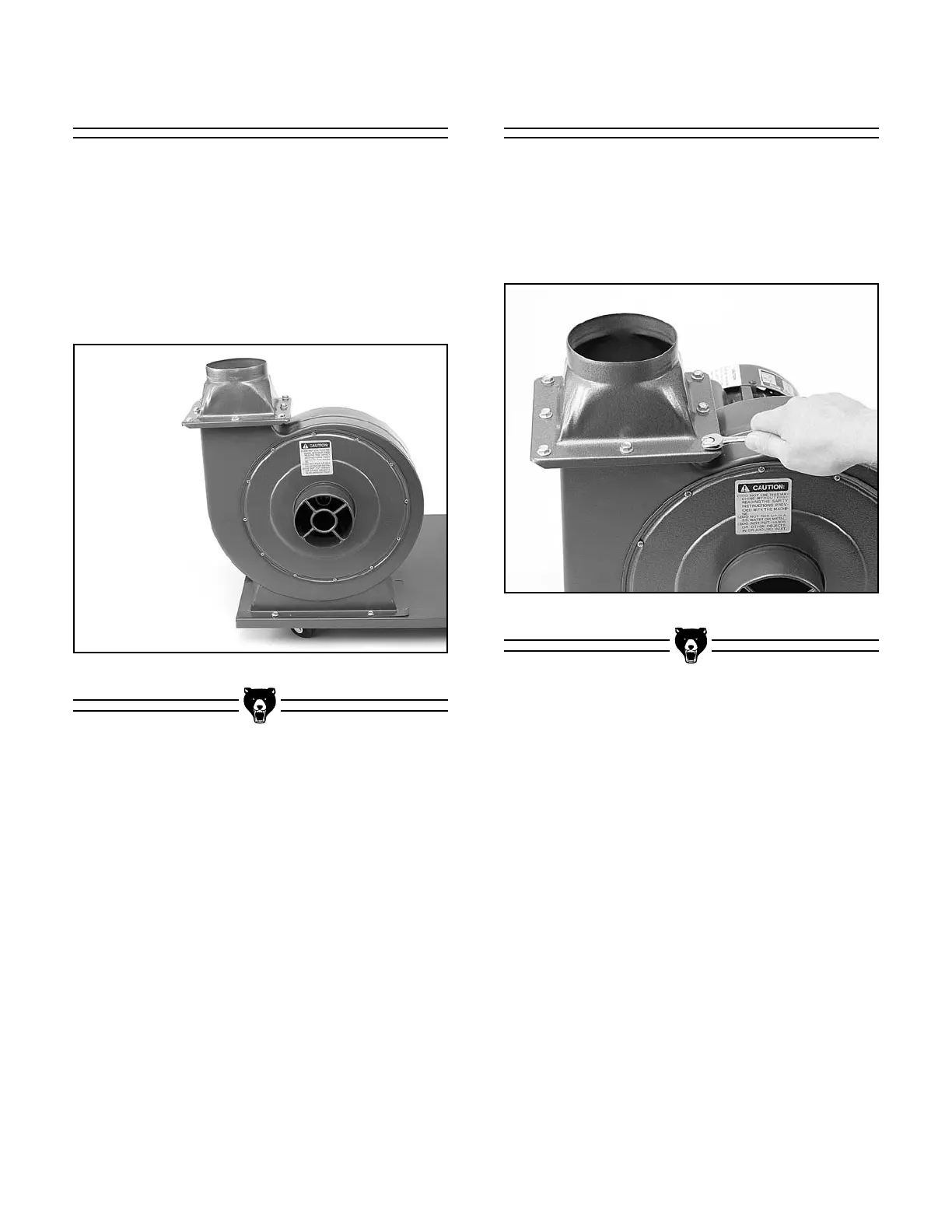

Figure 4. Mounting collector to base.
Figure 5. Mounting outlet to collector body.
-10- G1028/G1029 Dust Collector
Collector Body
The collector body includes the fan assembly,
switch, and motor which are preassembled at the
factory. Set the collector body on top of the base
plate so the intake portion is near the edge of the
base plate and the bolt holes are lined up as
shown in Figure 4. Secure the collector body to
the base plate with four (4)
5
⁄16" - 18 x
1
⁄2" bolts
provided.
Outlet
The outlet can now be attached to the main col-
lector body. Insert the rubber gasket between
the collector and lower outlet flange and secure
using eight (8)
5
⁄16" - 18 x
1
⁄2" bolts provided.
Figure 5.
