Grizzly G1163P User Manual

-14-
Model G1163P (Mfd. Since 7/15)

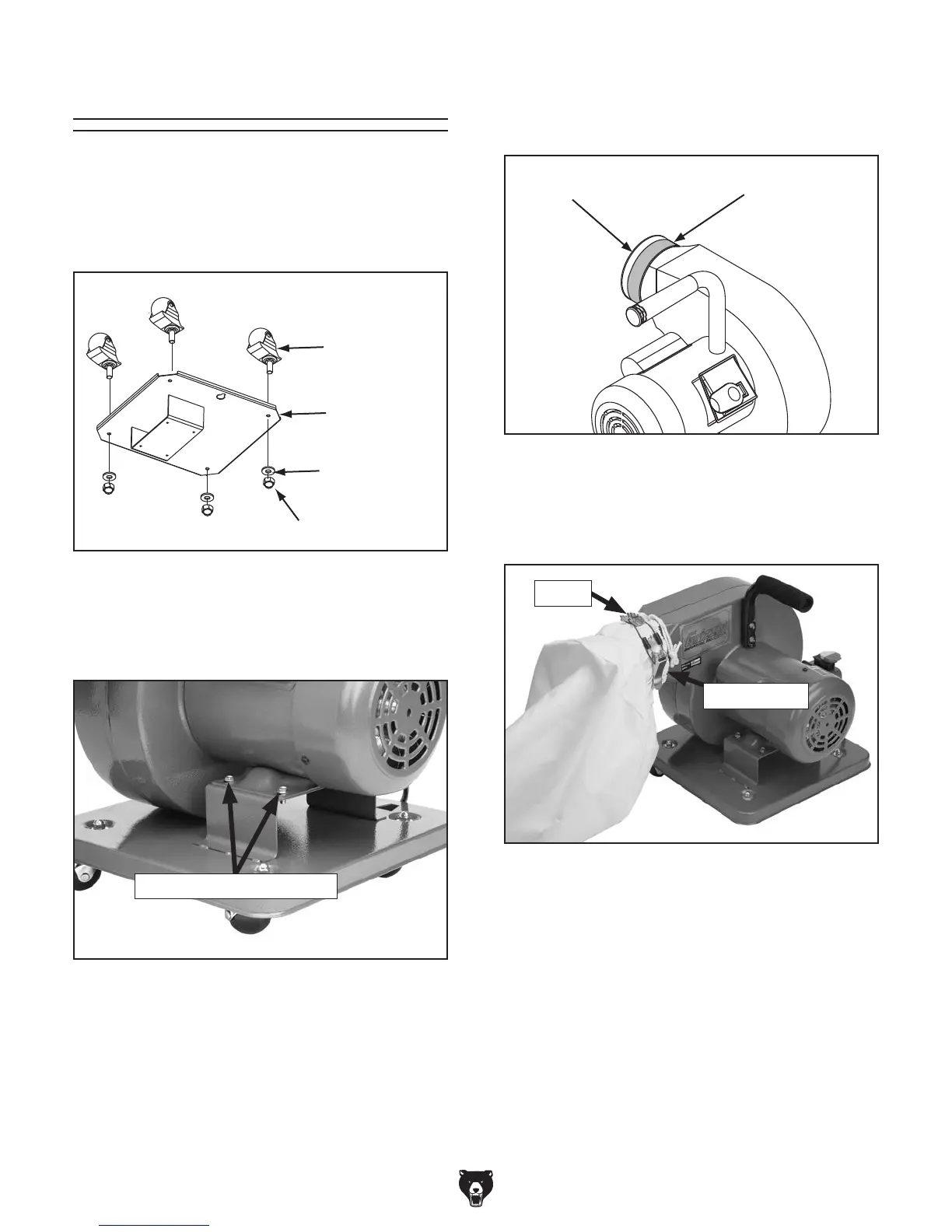

Assembly
To assemble your machine:
1. Position the base plate upside down and
mount the casters using the (4)
5
⁄16" flat wash-
ers and acorn nuts, as shown in Figure 7.
3. Wrap the foam strip around the outfeed port
of the collector body, as shown in Figure 9.
Cut to fit if necessary.
2. Position the collector body and fan/motor
assembly on the base, then secure it with the
flange bolts, as shown in Figure 8.
Figure 8. Mounting the collector body assembly
to the base.
Flange Bolts
1
⁄4"-20 X
1
⁄2"
Acorn Nut
5
/
16
"-18
Flat Washer
5
/
16
"
Base
Caster
Figure 7. Mounting the casters.
Figure 10. Attaching the collection bag.
Clamp
Outfeed Port
4. Fit the collection bag over the outfeed port,
and secure it with the provided clamp, as
shown in Figure 10.
Figure 9. Location to install foam strip.
Outfeed Port
Foam Strip
