-26-
Model G1163P (Mfd. Since 7/15)
SECTION 9: PARTS
27
22
16V2
17
14
18
17
15
28
17
16V2-2
16V2-1
16V2-3
16V2-4
16V2-5
16V2-6
20
21
23
34
25
2
1
26
12
11V2
10
9V2
7
8
29
30
31
32
33
35
36

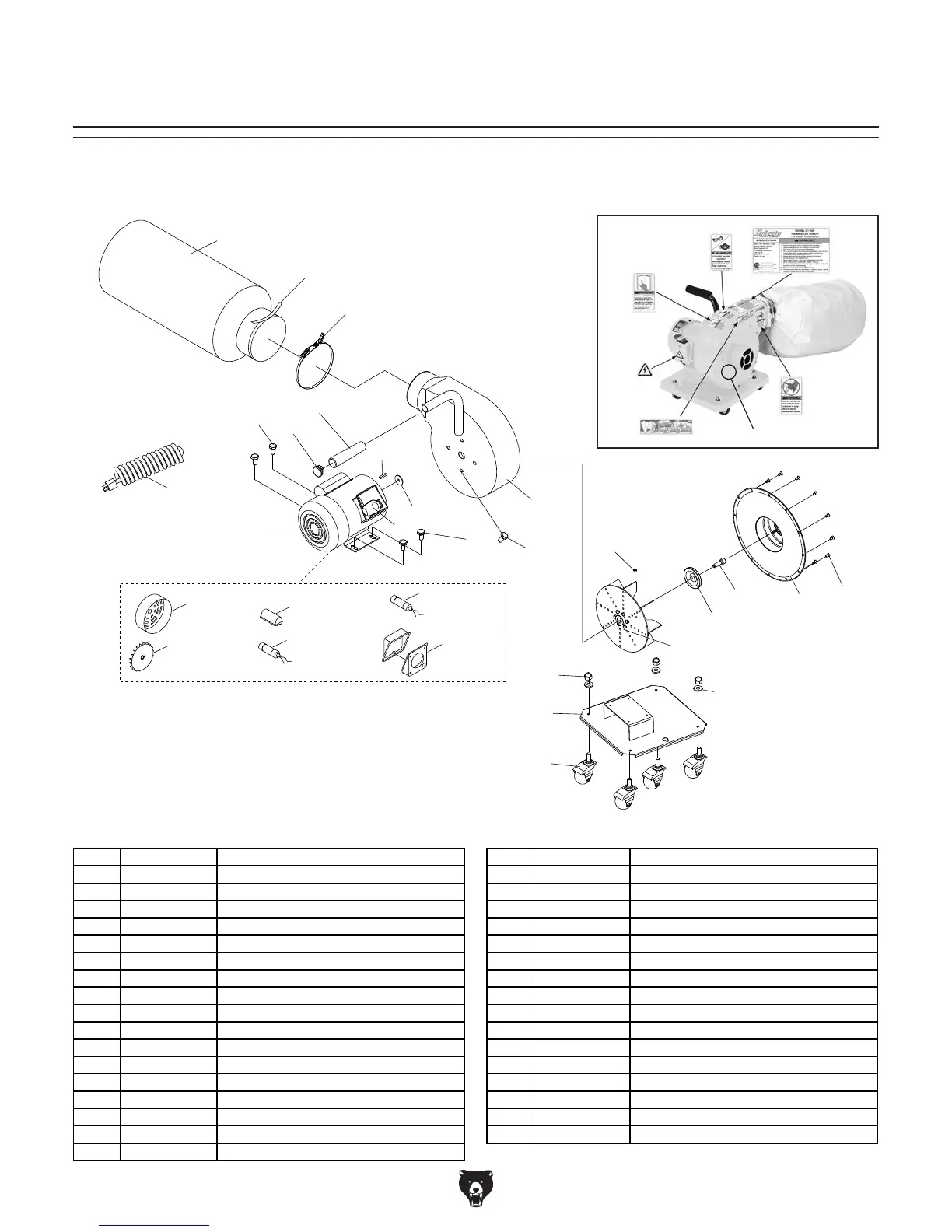

G1163P Main Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P1163P001A CASTER 18 P1163P018 PADDLE SWITCH 110V/220V W/KEY
2 P1163P002 BASE 20 P1163P020 POWER CORD 16AWG X 3W 73"L 5-15
7 P1163P007 PHLP HD SCR M5-.8 X 10 21 P1163P021 REPLACEMENT BAG FOR G1163
8 P1163P008 INLET COVER 22 P1163P022 KEY 5 X 5 X 25
9V2 P1163P009V2 CAP SCREW M6-1 X 30 (LH) V2.07.15 23 P1163P023 CLAMP
10 P1163P010 MOTOR FAN WASHER 25 P1163P025 ACORN NUT 5/16-18
11V2 P1163P011V2 IMPELLER 10", CAST ALUMINUM V2.09.12 26 P1163P026 FLAT WASHER 5/16
12 P1163P012 SET SCREW 5/16-18 X 3/8 27 P1163P027 HANDLE COVER
14 P1163P014 COLLECTOR BODY W/ HANDLE 28 P1163P028 HANDLE CAP
15 P1163P015 GASKET 29 P1163P029 ELECTRICITY LABEL
16V2 P1163P016V2 MOTOR 1HP 120V/240V 1-PH V2.09.11 30 P1163P030 HANDS/OUTLET LABEL
16V2-1 P1163P016V2-1 FAN COVER 31 P1163P031 READ MANUAL LABEL
16V2-2 P1163P016V2-2 MOTOR FAN 32 P1163P032 MACHINE ID LABEL CSA
16V2-3 P1163P016V2-3 CAPACITOR COVER 33 P1163P033 GLASSES/RESPIRATOR LABEL
16V2-4 P1163P016V2-4 S CAPACITOR 200M 125V 1-3/8 X 2-3/4 34 P1163P034 FOAM STRIP 4 X 20 X 430MM
16V2-5 P1163P016V2-5 JUNCTION BOX 35 P1163P035 POLAR BEAR WHITE PAINT
16V2-6 P1163P016V2-6 R CAPACITOR 30M 250V 1-3/8 X 2-1/2 36 P1163P036 POLAR BEAR LOGO 1 X 3-3/4
17 P1163P017 FLANGE BOLT 1/4-20 X 1/2
