-8- G5979 Wood Lathe
NOTICE
A full parts list and breakdown can be found
toward the end of this manual. For easier
assembly, or to identify specific parts,
please refer to the detailed illustrations at
the end of the manual.

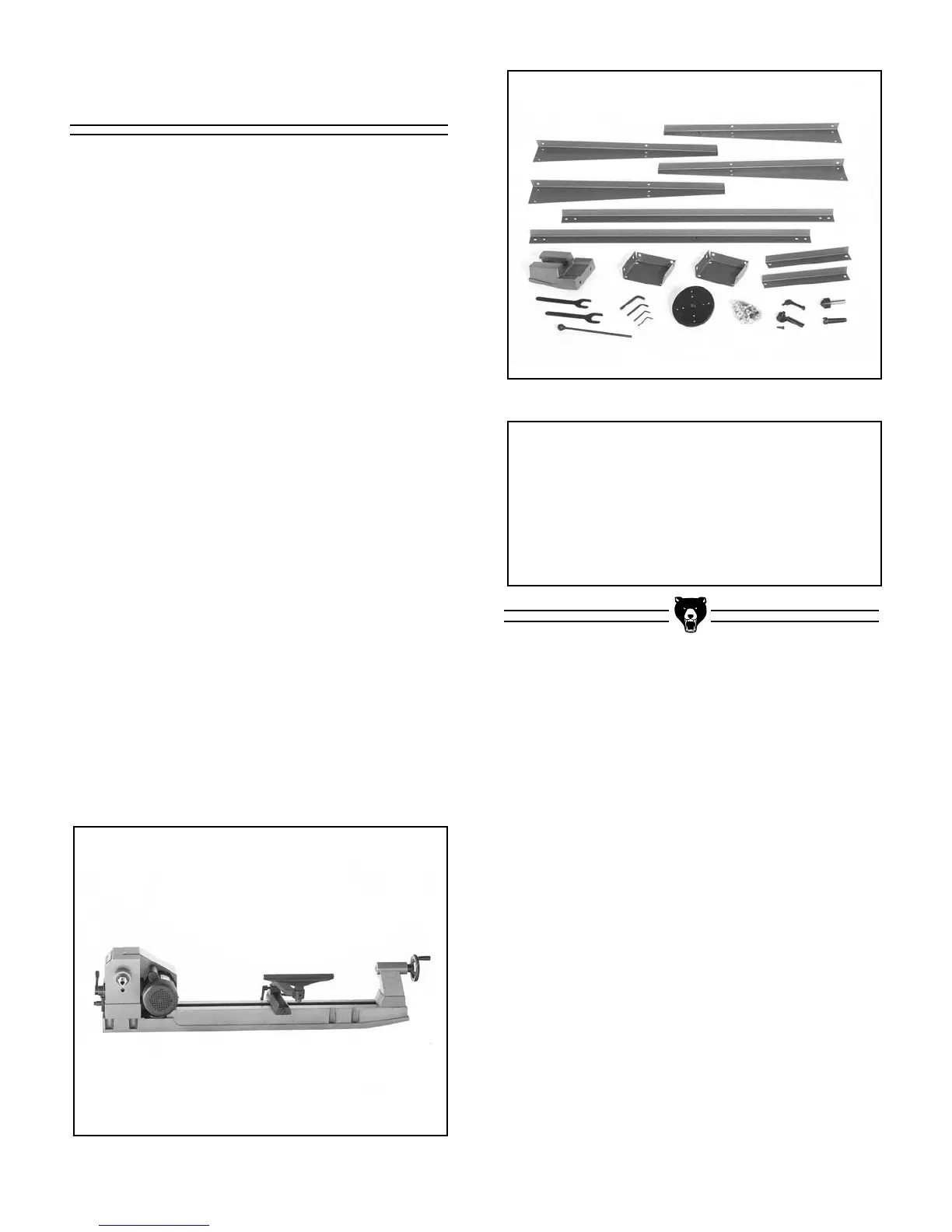

Figure 3. Parts layout.
Piece Inventory
After all the parts have been removed from the
carton, you should have:
• Lathe Unit
• Extension Bed
• Rear Legs (2)
• Front Legs (2)
• Long Leg Supports (2)
• Top Leg Plates (2)
• 4" Faceplate
• Live Center
• Spur Center
• Lock Handle
• Headstock Lock Handle
(w/Spring and Cap Screw)
• 3, 4, 6 and 8mm Allen
®
Wrenches
• Push Rod
• 32mm Open End Wrench (2)
• Hardware Bag
- M8-1.25 x 10 Carriage Bolts (24)
- M8-1.25 Hex Bolts (32)
- M8 Flat Washer (24)
- M8-1.25 x 35 Cap Screws (8)
- M8 Lock Washers (8)
- M10-1.5 x 25 Cap Screws (2)
- M10 Lock Washers (2)
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be glad
to replace them, or for the sake of expediency,
replacements can be obtained at your local hard-
ware store.
