Grizzly T28048 - Inventory Check

Model T28048 (Mfd. Since 06/17)
-13-
Hardware (Figure 5) Qty
O. Tube Clamps
— Inner Tube Clamps ................................. 8
— Outer Tube Clamps ................................. 8
P. Tube Clamp Hardware
—Flat Head Cap Screws M6-1 x 50 ........ 16
— Hex Nuts M6-1 ...................................... 16
Q. Mounting Plate Leveling Hardware
— Set Screws M6-1 x 30 .......................... 12
— Hex Nuts M6-1 ...................................... 12
R. Starter Pin M6-1 x 25 ................................. 1
S. Router Table Feet ....................................... 4
T. Router Bit Guard Hardware
— Thumb Screws M6-1 x 15 ....................... 2
—Square Nuts M6-1 ................................... 2
U. Mounting Plate Hardware
— Flat Head Cap Screws M6-1 x 35 ........... 4
V. Hex Wrenches 3, 4, 5mm .....................1 Ea.
W. Fence Hardware
— Knob Bolts M8-1.25 x 90 ........................ 2
— Plastic Spacers ....................................... 2
—Extra-Wide Hex Nuts M8-1.25 ................ 2
X. Frame Hardware
— Tap Screws M5 x 20 ............................. 10
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Box Contents (Figure 4) Qty
A. Table ........................................................... 1
B. Mounting Plate............................................ 1
C. Fence Assembly ......................................... 1
D. Fence Board Spacers ................................ 2
E. Table Insert Wrench ................................... 1
F. Table Inserts:
1
⁄2", 1
3
⁄8", 2" .....................1 Ea.
G. Front Frame ................................................ 1
H. Router Bit Guard ........................................ 1
I. Rear Frame ................................................ 1
J. Frame Connector Tubes ............................. 4
K. Side Frame Support Brackets .................... 2
L. Dust Collection Bag .................................... 1
M. Side Pockets .............................................. 2
N. Miter Gauge ................................................ 1
O
P

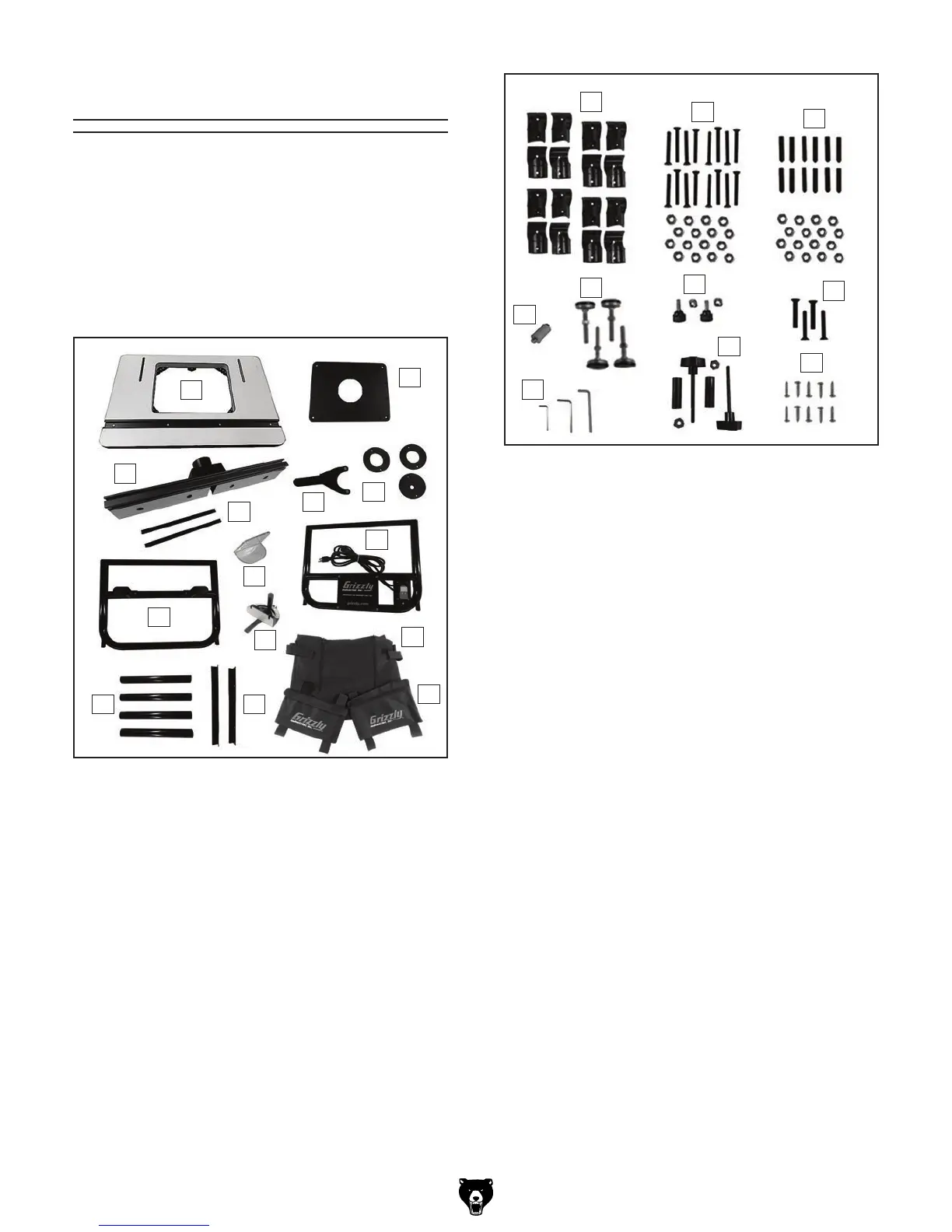

Figure 5. T28048 hardware inventory.
Q
R
S
T
U
V
W
P
A
B
C
M
E
F
G
H
I
Figure 4. T28048 inventory.
K
L
J
D
N
X
