Model T28048 (Mfd. Since 06/17)
-3-

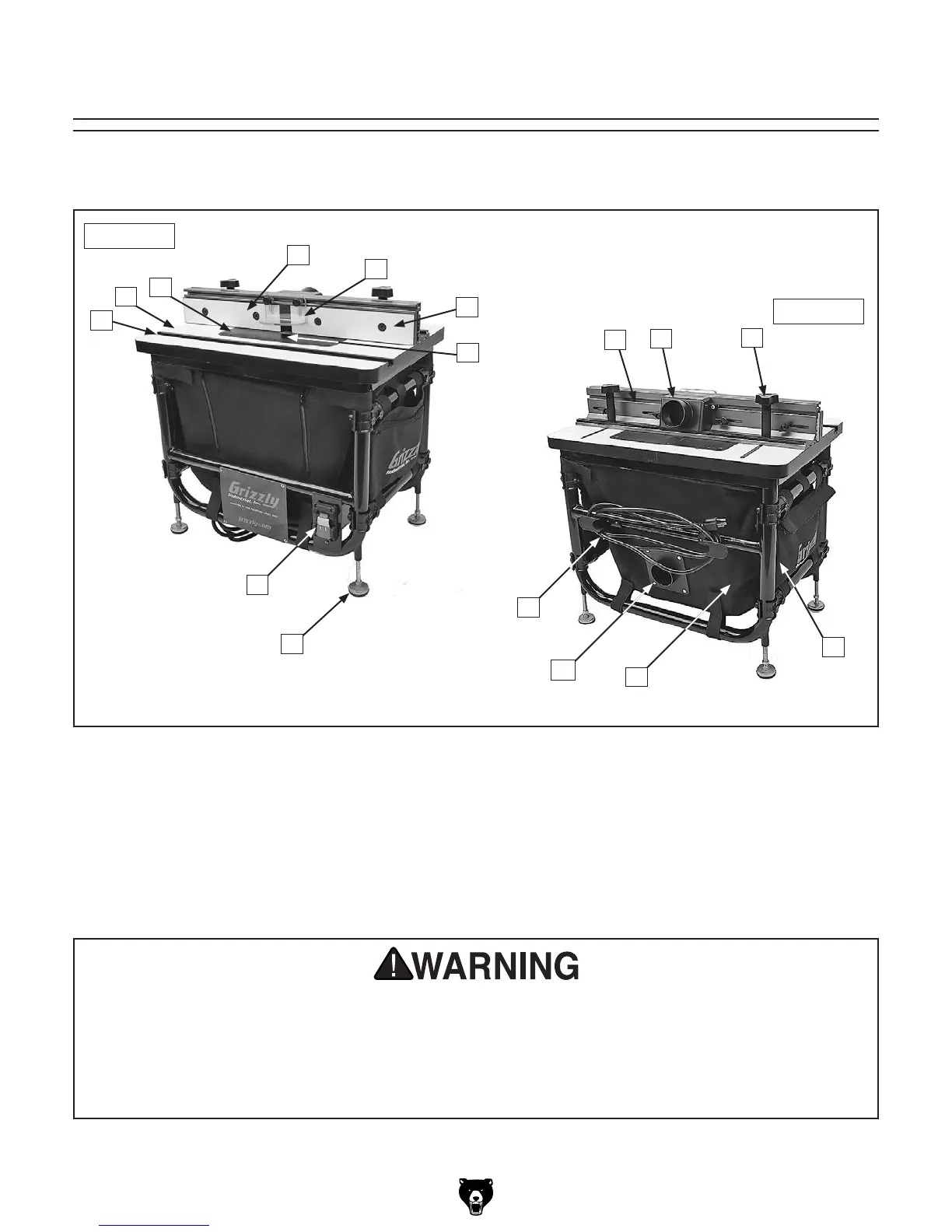

Identification
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
A. T-Slot Track
3
⁄4"
B. Table
C. Mounting Plate
D. Outfeed Fence
E. Router Bit Guard
F. Infeed Fence
G. Table Insert
H. Fence Support
I. Fence Dust Port 2
1
⁄2"
J. Fence Lock
K. Side Storage Pocket (1 of 2)
L. Dust Collection Bag
M. Bag Dust Port 2
1
⁄2"
N. Power Cord
O. Adjustable Feet (1 of 4)
P. ON/OFF Paddle Switch w/Disabling Key
For Your Own Safety Read Instruction Manual Before Operating Router Table
a) Wear eye protection.
b) Always keep router bit guard in place and in proper operating condition.
c) Feed workpiece AGAINST rotation of router bit.
d) Keep fingers away from revolving bit–use fixtures when necessary.
e) Do not use awkward hand positions.
H
N
G
C
E
F
M
Front View
Rear View
P
B
D
J
I
K
L
O
A
