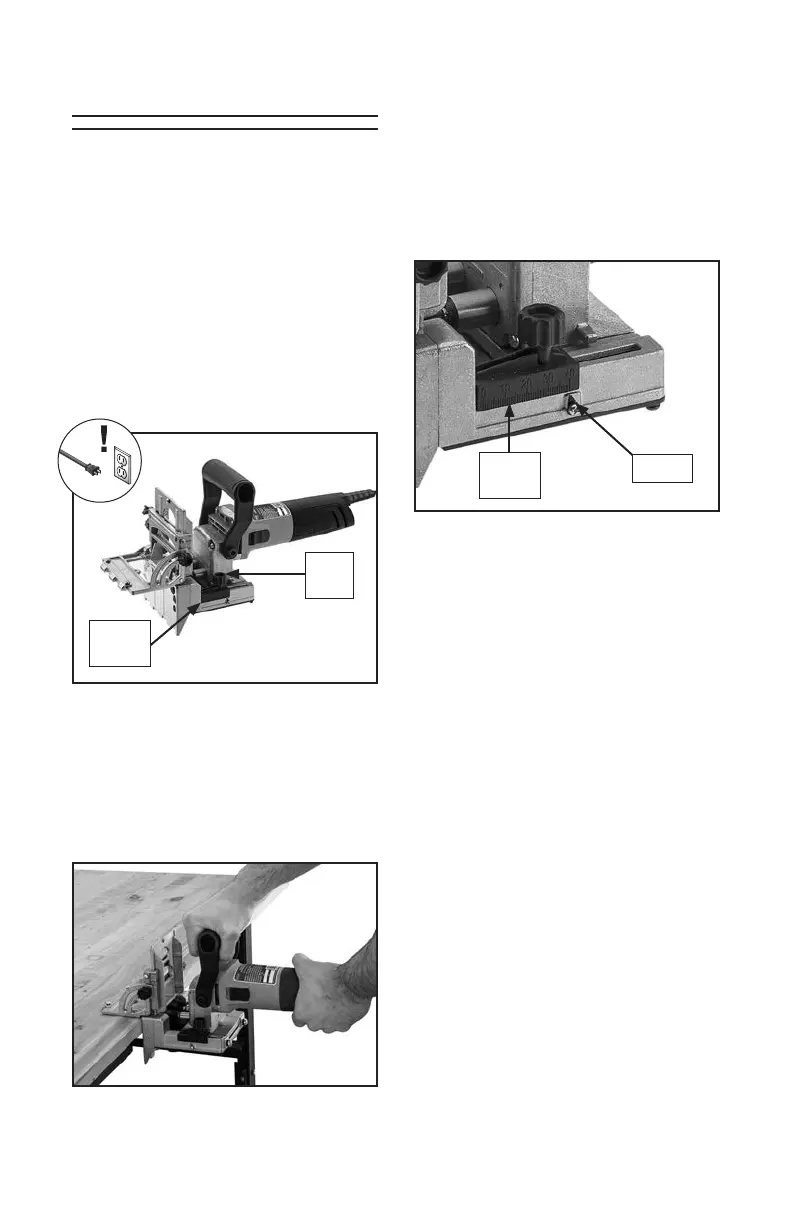

Grizzly T32540 User Manual

Figure 11. Adjusting pointer alignment
with depth gauge.
Figure 9. Depth gauge and lock knob.
Figure 10. Positioning tool against flat
wood surface.
Model T32540 (Mfd. Since 10/20)-16-
4. Slide depth gauge as far back as pos-
sible, and tighten lock knob while still
holding position from Step 3.
5. Loosen screw holding pointer, rotate
pointer until it aligns with "0" on depth
gauge, and tighten screw to secure
pointer in position (see Figure 11).
Depth
Gauge
Pointer
6. Release holding position.
7. Position tool face against a flat piece
of scrap wood, and push tool body for-
ward until cutting point of drill bits stop
against wood. Verify pointer is aligned
with "0" on depth gauge.
Calibrating Depth
The depth gauge must be calibrated every
time new drill bits are installed. Aligning
the depth gauge to the pointer keeps the
drilling depth consistent during operations.
Depth
Gauge
Lock
Knob
To calibrate drilling depth:
1. DISCONNECT TOOL FROM POWER!
2. Loosen depth gauge lock knob (see
Figure 9) until depth gauge moves
freely.
3. Position tool against a flat piece of
scrap wood (see Figure 10), and push
tool body forward until cutting point of
drill bits stop against wood. Hold this
position.
