-4-
Model T32720 (Mfd. Since 06/21)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.

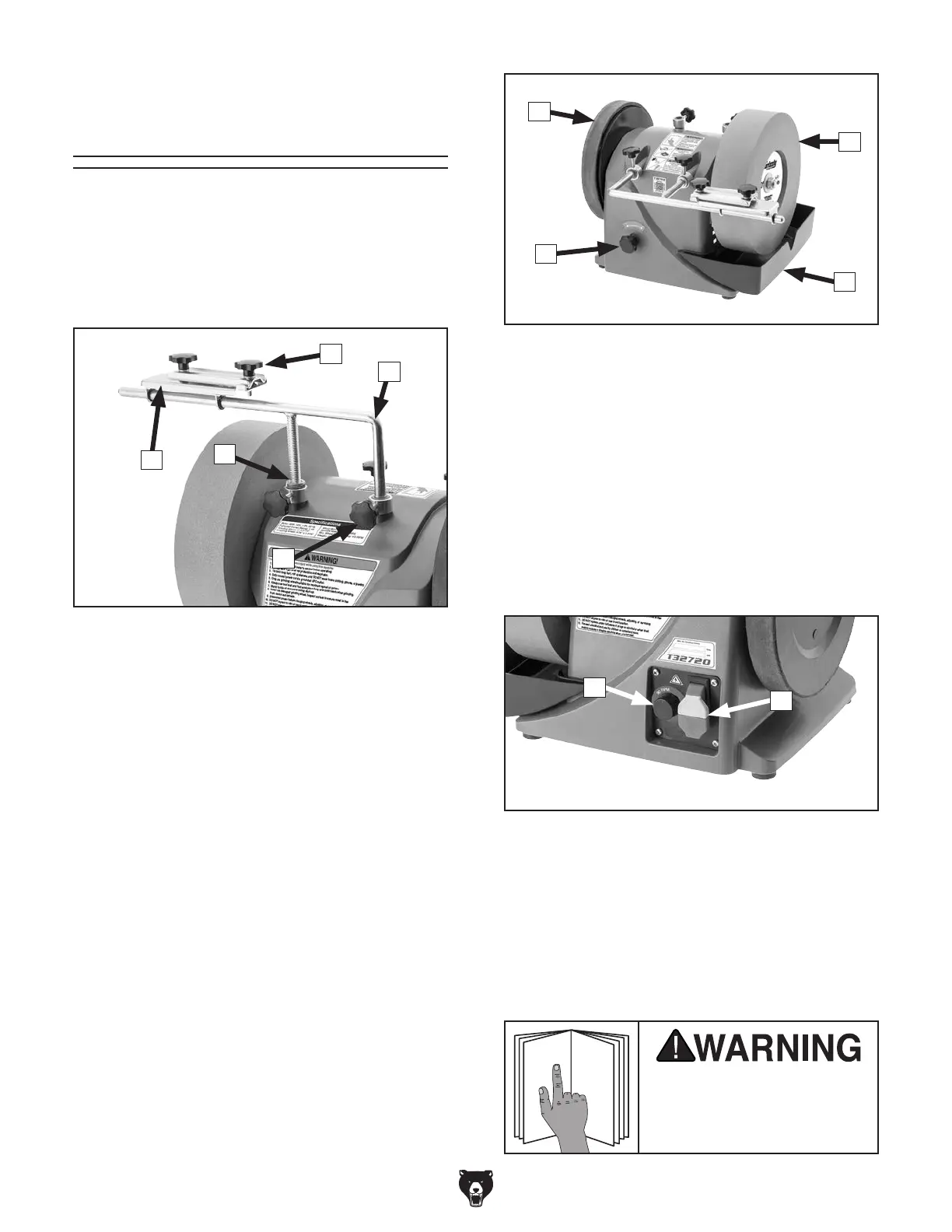

Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
J. Variable-Speed Dial: Rotates to adjust
grinding/stropping wheel speed.
K. ON/OFF Switch w/Disabling Key: Turns
motor ON when moved up; turns motor OFF
when moved down. When key is removed,
switch is disabled and machine cannot start.
Figure 3. Control panel components.
J
K
A. Tool Jig Lock Knob (1 of 2): Loosens to
adjust tool jig position or angle and tightens
to secure.
B. Tool Rest: Mounts in three different posi-
tions to support tool or tool jig as required for
operation.
C. Tool Rest Lock Knob (1 of 4): Secures tool
rest at desired mounting position.
D. Tool Rest Micro-Adjustment Nut: Adjusts
position of tool rest, in relation to grinding or
stropping wheel.
E. Tool Jig: Securely clamps workpiece at
desired angle and position.
Figure 1. Tool rest components.
E
A
B
C
D
F. Stropping Wheel: Spins to sharpen or "strop"
workpiece.
G. Grinding Wheel: Spins to grind workpiece.
H. Water Reservoir: Holds water to cool grind-
ing wheel during operation, preventing exces-
sive heat and sparks.
I. Torque Adjustment Knob: Adjusts drive
wheel tension to adjust torque.
Figure 2. Grinding and stropping components.
F
G
I
H
To Next Page
