Groen Vortex 100 Series User Manual

14 OM-VRC-3E/VRC-6E 148673 REV. G
PAN RACKS FOR SINGLE STANDS ONLY
INSTALLATION INSTRUCTIONS

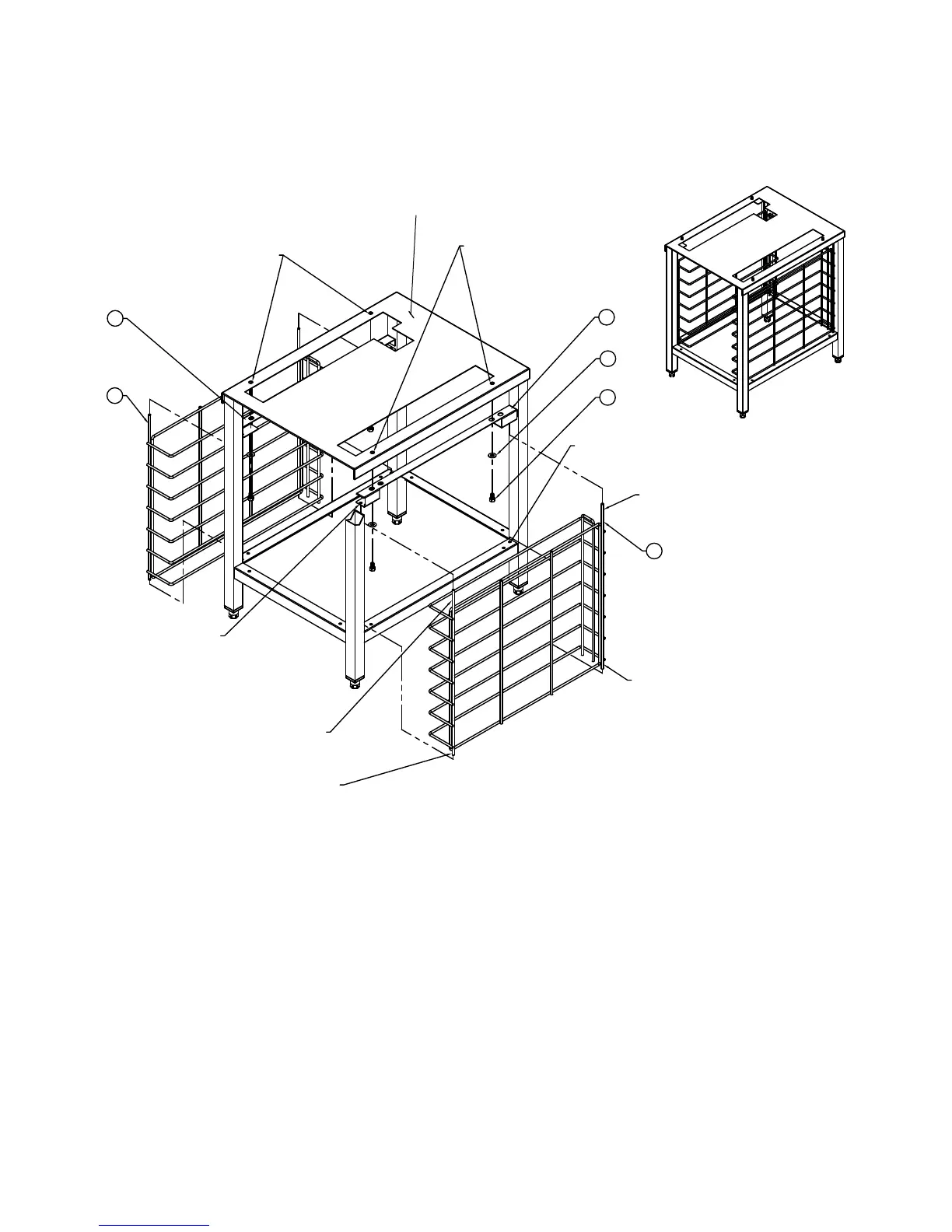

ASSEMBLY INSTRUCTIONS:
1. Unpack racks kit.
2. Identify parts.
3. Unscrew and remove screws #1 and washers #2 from the bottom of your steamer. Do not move the steamer.
This will allow the bottom threaded
holes to stay aligned with the holes on the stand.
4. Secure brackets #3 using screws #1 and washers #2 thru the holes on the stands and into the threaded holes
on the bottom of your steamer.
5. To place racks on stand, align wires from top of the rack with the corresponding holes in bracket #3. Push the
rack all the way up into the bracket.
Align bottom of the rack wires with the holes in the stand leg and allow
rack to fall in position.
OM-VRC-3E/VRC-6E
STAND, BULLET FEET OR CASTERS
4
2
1
3
TOP WIRE
BOTTOM WIRE
HOLES TO BE ALIGNED
WITH THREADED HOLES
ON THE BOTTOM OF STEAMER
HOLES TO BE ALIGNED
WITH THREADED HOLES
ON THE BOTTOM OF STEAMER
TOP WIRE
BOTTOM WIRE
BRACKET HOLE FOR
RACK TOP WIRE
STAND CROSS MEMBER HOLE
FOR RACK BOTTOM WIRE.
5
3
