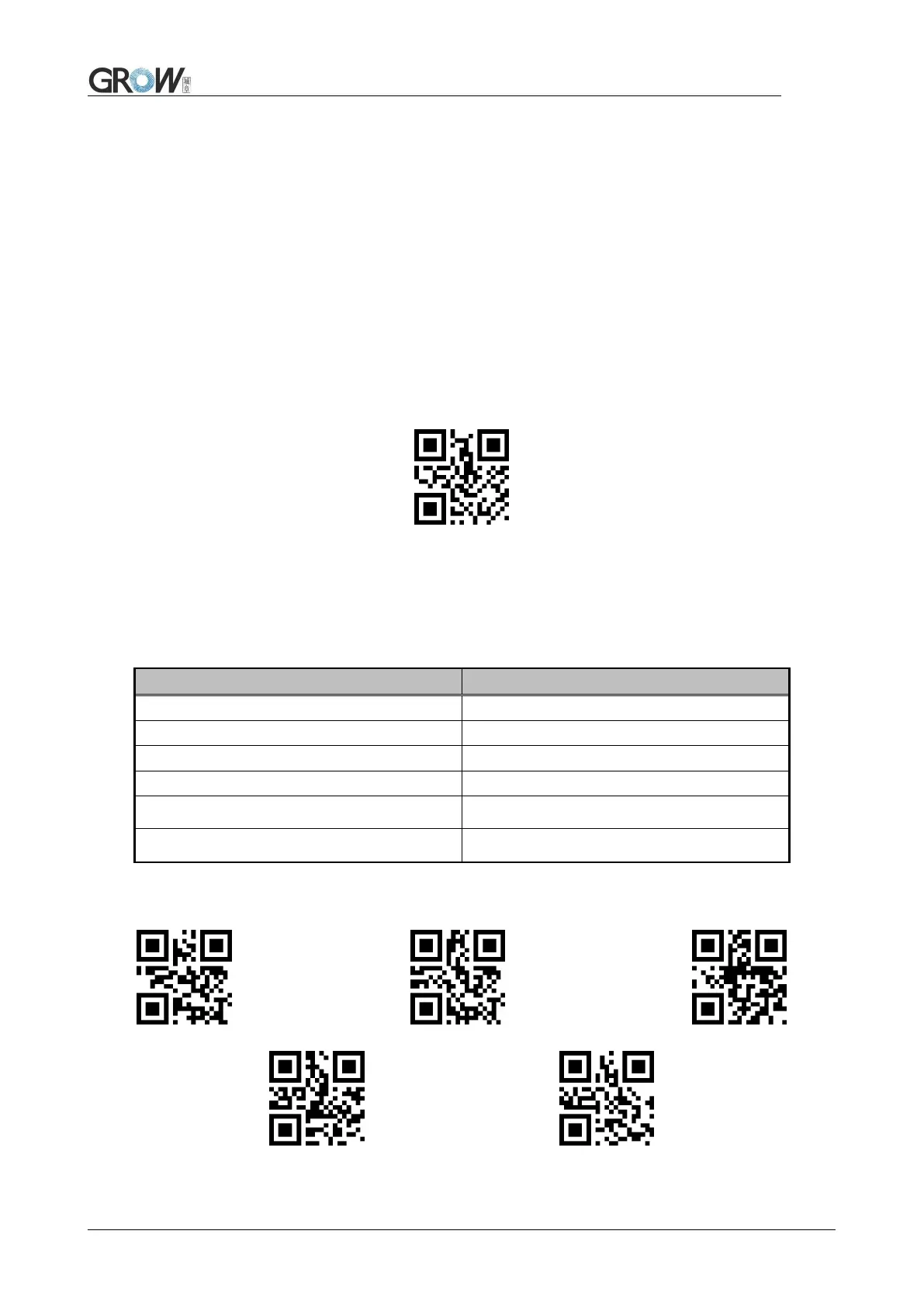

2 Communication interface
SD-MG1S02 can receive database, control module and set functional parameter by TTL - 232.
2.1 Series Communication Interface
It’s default and common to connect module and mainframe(such as PC, POS) by series
communication interface. Make sure communication parameter for module and mainframe are same,
then it will communicate smooth and correct.
Series Output
TTL-232 is used for series interface which suitable for most system. Required change-over circuit
for RS-232.
Default Parameter as form 2- 1. Only Baud Rate can be changed.
Form 2- 1 Default Parameters
Parameters
Default
Series communication interface
Standard TTL-232
Baud rate
9600
Verification
N
Data bit
8
Stop bit
1
CTSRTS
N
Baud Rate Settlement
1200bps 4800bps 9600bps(Default)
14400bps 19200bps
