Growatt SPF 3000T HVM-G2 User Manual

18
05

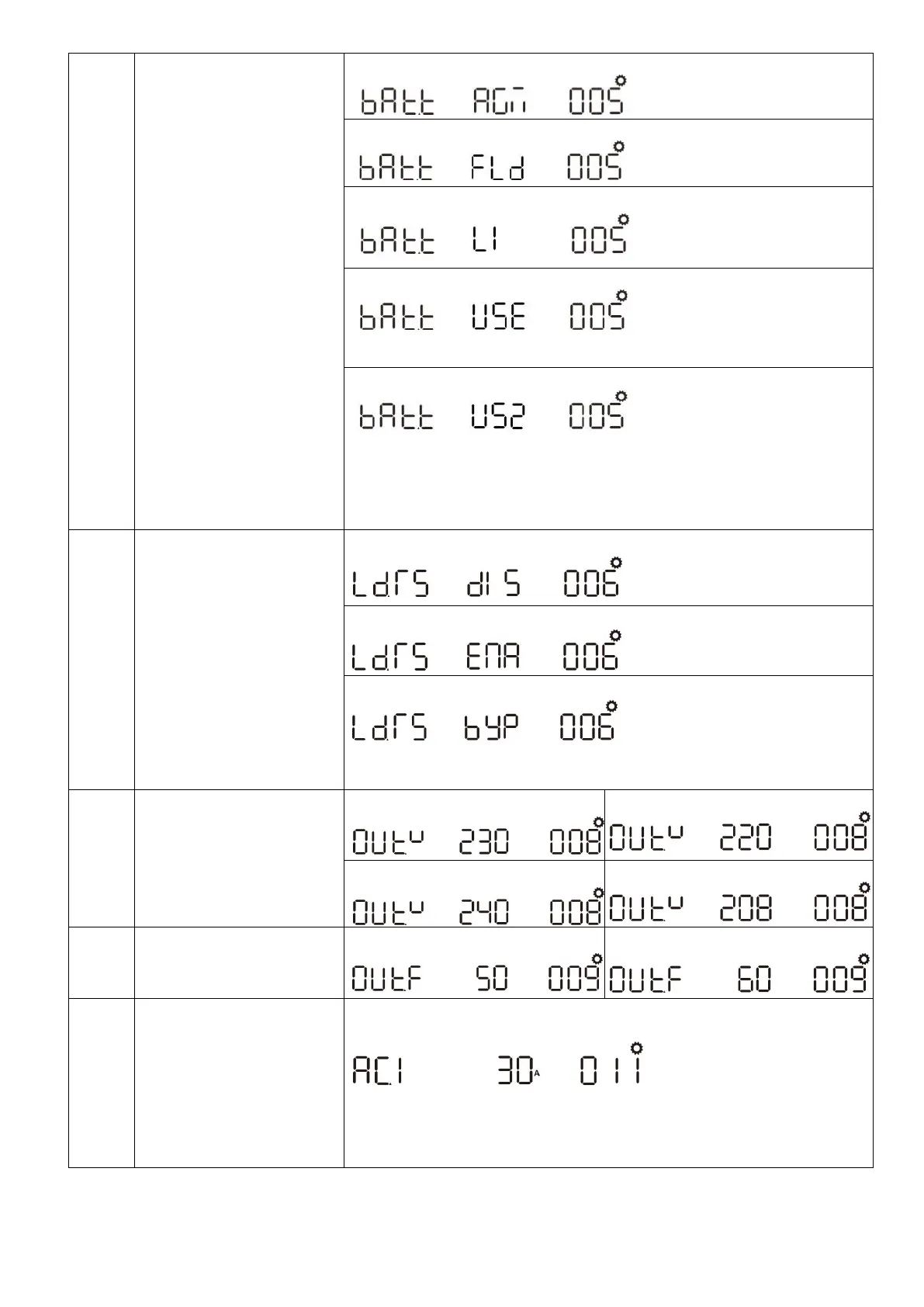

Battery type
AGM (default)
Flooded
Lithium (only suitable when communicated with BMS)
User-Defined
If “User-Defined” is selected, battery charge voltage and low DC cut-off
voltage can be set up in program 19, 20 and 21.
User-Defined 2 (suitable when lithium battery without BMS communication)
If “User-Defined 2” is selected, battery charge voltage and low DC cut-off
voltage can be set up in program 19, 20 and 21. It is recommended to set
to the same voltage in program 19 and 20(full charging voltage point of
lithium battery). The inverter will stop charging when the battery voltage
reaches this setting.
06
Auto restart when overload
occurs
Restart disable (default)
Restart enable
Restart bypass
When overload under battery mode
，
system will switch to bypass
automatically
08
Output voltage
230V (default)
220V
240V
208V
09
Output frequency
50Hz (default)
60Hz
11
Maximum utility charging
current
Note: If setting value in
Program 02 is smaller
than that in Program 11,
the inverter will apply
charging current from
Program 02 for utility
charger
Default 30A, 0A~40A Settable
(If LI is selected in Program 5, this program can’t be set up)

Growatt SPF 3000T HVM-G2 Specifications

General

Model	SPF 3000T HVM-G2
Category	Inverter
Rated Power	3000W
Input Voltage	230V AC
Output Voltage	230V AC
Frequency	50Hz/60Hz
Efficiency	93%
Max. PV Array Power	4000W
Max. Charging Current	80A
Max Solar Input Voltage	145V
Max Solar Input Power	4000W
Communication	RS232/USB
Operating Temperature	-10°C to 50°C
Dimensions	330 x 485 x 135 mm
Weight	12 kg
Protection	Overload, Short circuit, Over temperature
