Growatt SPH 6000 BL-UP - Page 25

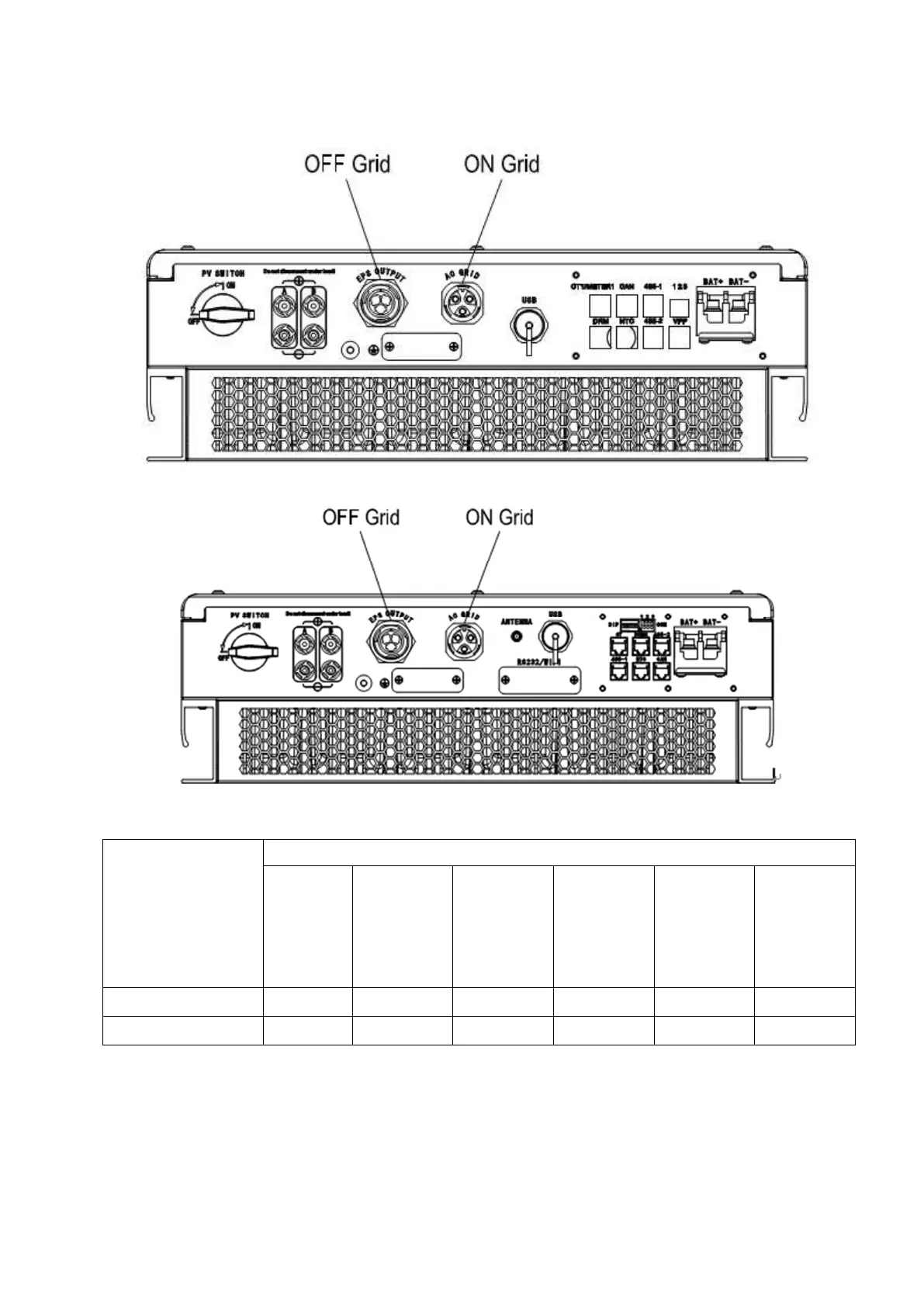

Chart 5.10.1 SPH3000-6000TL BL-UP
Chart 5.10.1 Growatt SPH3000-6000
Wire suggest length
Conductor cross
section
Max cable length
Growatt
SPH3000
& SPH
3000TL
UP
Growatt
SPH3600&S
PH 3600 TL
UP
Growatt
SPH4000&S
PH 4000 TL
UP
Growatt
SPH4600&S
PH 4600 TL
UP
Growatt
SPH5000&S
PH 5000 TL
UP
Growatt
SPH6000&S
PH 6000 TL
UP
5.2mm
2
10AWG 40m 33m 28m 26m 25m 23m
6.6mm
2
9AWG 50m 42m 36m 33m 32m 29m
AC output terminal connection steps as follow:
