Similar to the traditional inverter connecting, the input of PV panel energy can
be realized by using MC4 PV terminal, the detail steps are as follows：
，
Max PV voltage：550V (consider the lowest temperature)
≥
1.Turn off PV switch.
2.Insert PV panel positive and negative cables into MC4 terminal then connect
positive pole(+) of connection cable to positive pole(+) of PV input connector,
connect negative pole(-) of connection cable to negative pole(-)of PV input
connector, please pay attention to PV input voltage and current within
permission Limit:
Max PV input current: 12A
Max PV input power per string: 4000W.
Remark: 1.We suggest you use the cable 4mm2/12 AWG to connect.
2.Please do not connect to DC source!
5.5.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal,look down on the SPH from
the front,the terminal on the left (on grid) is grid outlet for connecting grid,the
terminal on the right is an emergency power outlet for connecting critical load.
Chart 5.12
Wire suggest length:
Max cable length
Conductor
cross
5.2mm 10AWG
2
6.6mm 9AWG
2
Growatt
SPH300
Growatt
SPH360
0
Growatt
SPH400
Growatt
SPH460
Growatt
SPH500
Growatt
SPH600
40m 33m
50m 42m
28m
36m
26m 25m
33m 32m
23m
29m
Chart 5.11
Chart 5.13

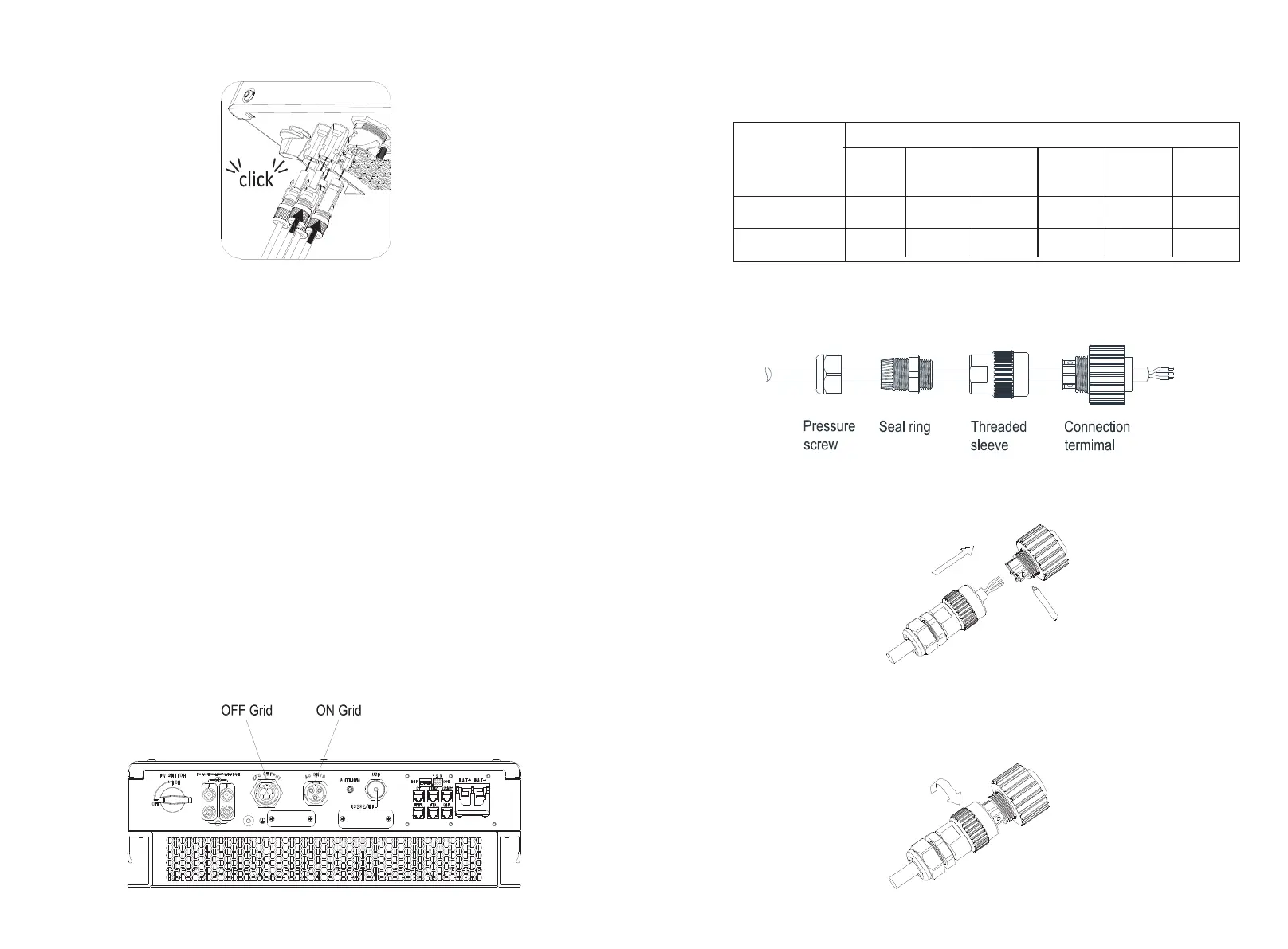

Step1: Uninstall the AC terminal as above chart.
Chart 5.14
Step 2: Thread cables through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to polarities indicates
on it and tighten the screws.
AC output terminal and EPS output terminal connection steps as follow (Except
for the Australian machine):
Chart 5.15
