Growatt SPH Series User Manual

21 22

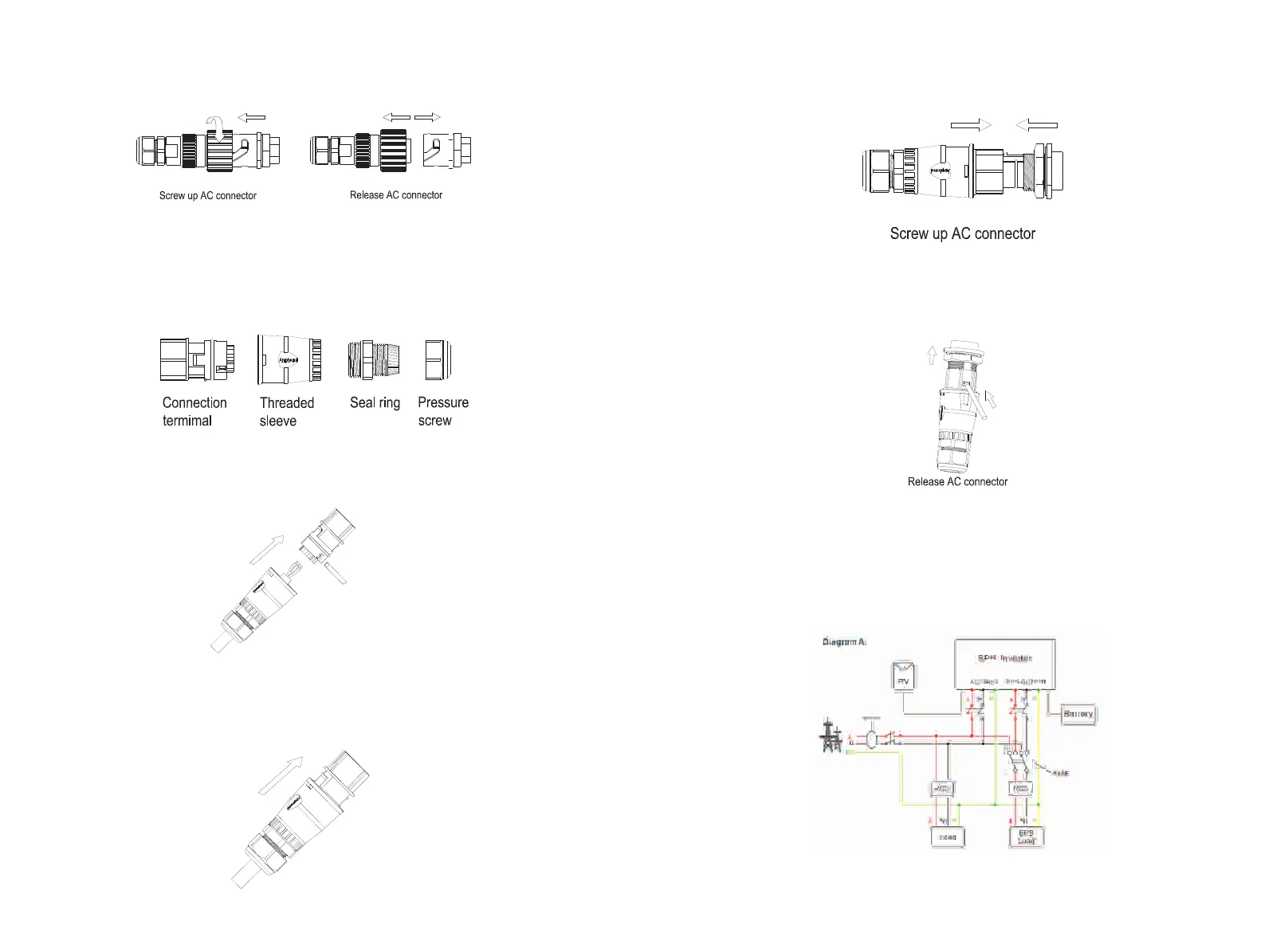

AC output terminal connection steps as follow:
Step 2.Thread cables through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to polarities
indicates on it and tighten the screws.
chart 5.18
chart 5.20
chart 5.19
chart 5.21
chart 5.17
Step 5:To remove the AC output terminal , press the bayonet out of the slot with
a small screwdriver and pull it out.
Note
machine connection steps are as follows, EPS output terminal connection steps
consistent with the above steps.
:The following diagram shows the AC output terminal of the Australian
Step 3:Push threaded sleeve on to connection terminal until both are locked tightly
Chart 5.16
Step 1: Uninstall the AC terminal as above chart.
Step 3: Push threaded sleeve on to connection terminal until both are locked
tightly.
Step 4: Align the bayonet of the AC output terminal to the slot of thread sleeve,
Plug the socket into AC output terminal.
The recommended wiring diagram is as follows:
Chart 5.22

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
