Growatt SPH4000 User Manual

1413
Chart 5.4
Chart 5.3

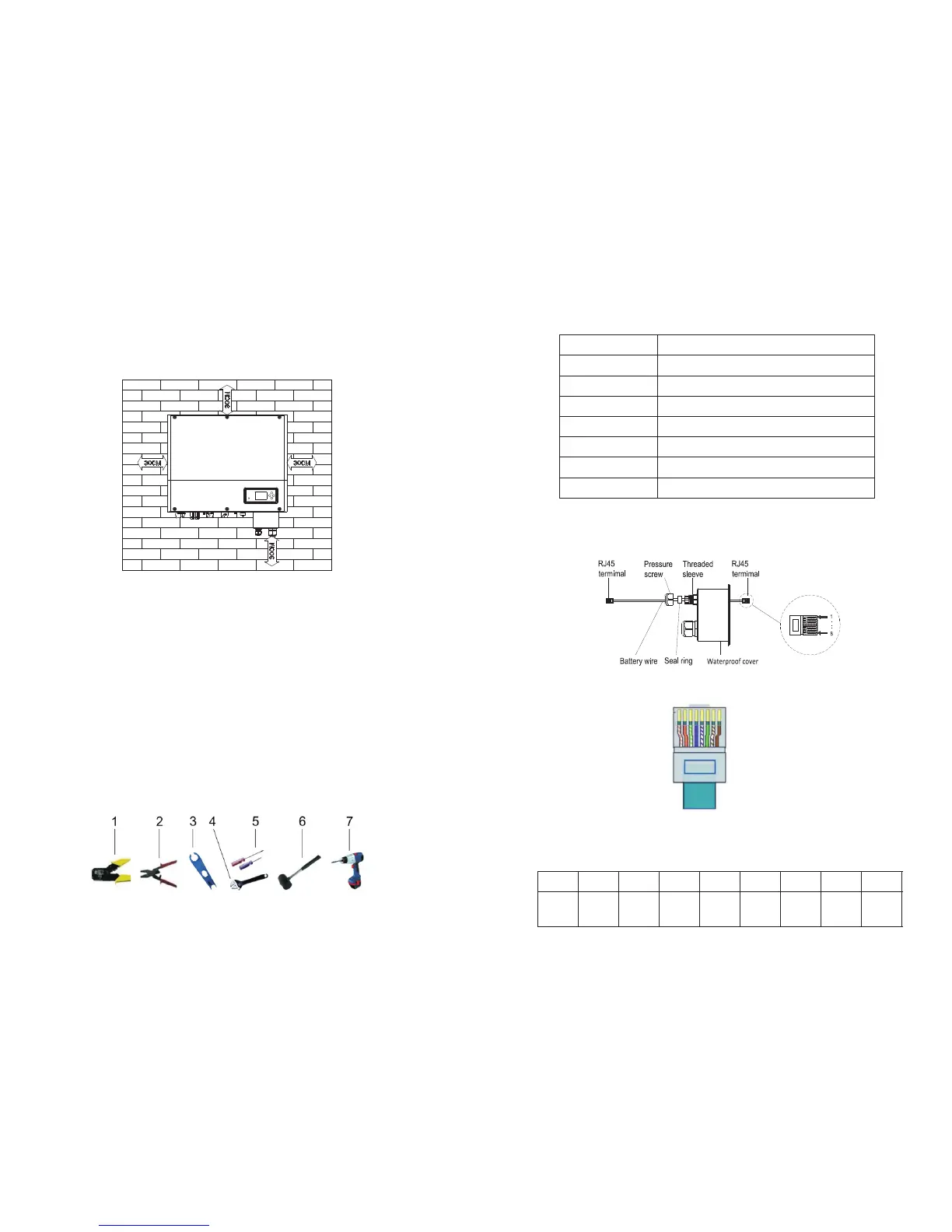

5.2 Installation requires tools and RJ 45 terminal sequence
of the LAN line
H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay
attention to provide adequate space for SPH, Please refer to below:
J. Do not install the machine near television antenna or any other antennas and
antenna cables
K. Don't install the machine in the living area
L. Be sure that the machine is out of the children's reach
M. Taking the battery fixing space into account, about the dimensions please
reference user manual
N. The Inflammable and explosive dangerous goods must not be placed around
battery in case of cause serious danger.
When installing，we need to use tools as follow，prepare the follow tools before
installing：
No
1
2
3
4
5
6
7
Description
Press the RJ45 terminal
Press battery terminal connector
Disconnect PV terminal
Unscrew nut
Unscrew screw
Knock explosion bolt
Drill holes on the wall
LAN line RJ45 sequence as follow：
Chart 5.5
Chart 5.6
PIN 1 2 3 4 5 6 7 8
color
White
orange
Orange
White
green
Blue
White
blue
green
White
brown
brown
LAN line 1-8 colors as below:

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
