Growatt SPH4000 User Manual

11 12

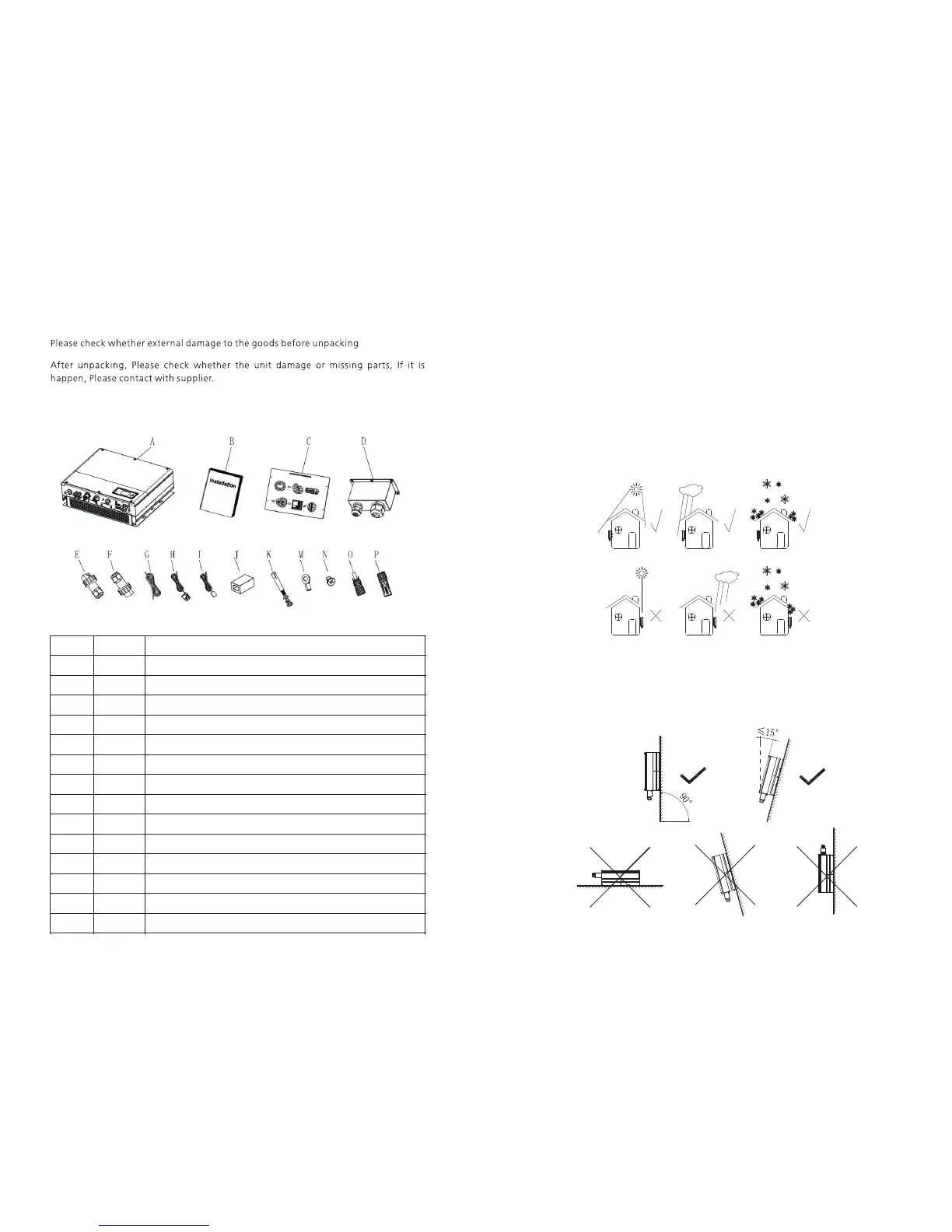

Unpacking4
Growatt SPH series and accessories as follows:
1
1
1
1
1
1
1
1
1
1
4
2
6
2/2
SPH inverter
User Manual
Paper board(installation guide)
Waterproof cover
AC Grid connector
EPS output connector
Communication cable
Current sensor
Lead-acid battery temperature sensor
RJ45 connector
M6 setscrew
Battery power terminal
Screw
MC4 connector
A
B
C
D
E
F
G
H
I
J
K
M
N
O/P
Item
Number Description
Chart 4.1
Installation 5
5.1 Basic installation requirements
Chart 5.2
E. Battery installation option is not far away from the position of SPH, the length
between SPH and battery should not be more than 1.5m.
F. The ambient temperature should be -25℃ ~ 60 ℃
G. SPH can be installed in vertical or lean back on plane, Please refer to the below
A. The installation location must be suitable for SPH's weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile
materials
D. The Ingress Protection rate is IP65 and the pollution degree is PD2. Please refer to
the below:
Chart 5.1

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
