Growatt SPH4000 User Manual

VDE 0126
GT4XXXXXX1
Queensland
GT4XXXXXX2
As4777
GT4XXXXXX3
CEI 0-21
GT4XXXXXX4
G59
GT4XXXXXX5
XINA1
GT4XXXXXX6
VDE-AR-N 4105
GT4XXXXXX7
G83
GT4XXXXXX8
Norway-EN50438
GT4XXXXXX9
CQC
GT4XXXXXXA
35 36

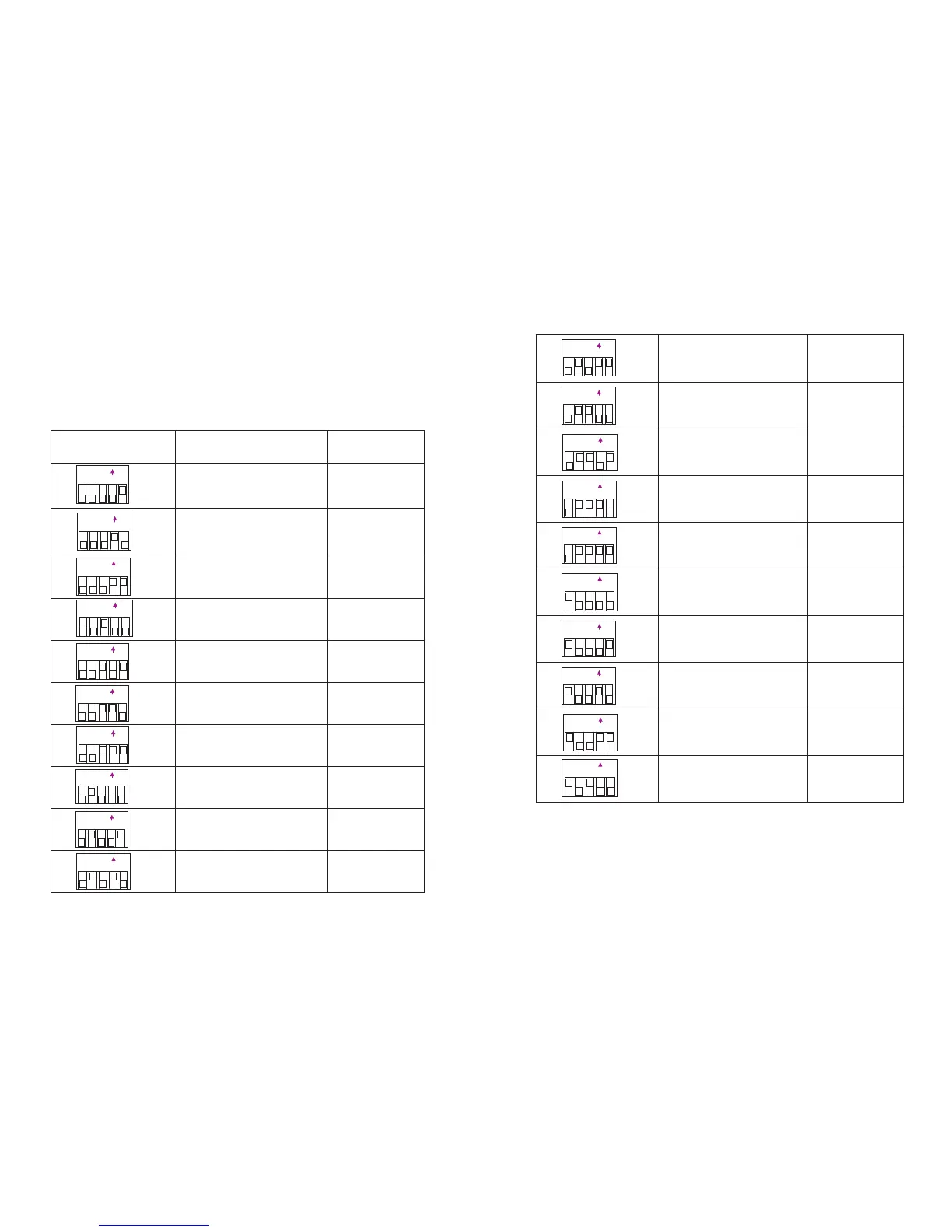

The DIP switch is composed of five-digit binary number PINS. The different
combination of the five PINS can represent different inverter's model, which is
corresponding to the local grid standard. Each small white PIN has two statuses,
when set upward to “ON”, its value turns to “1”, when set downward, its value
turns to “0”. Concerning the matching of the PIN status and the country safety
standard, please refer to the table below:
6.3.1 Switch to country table
Model display
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
Danmark-EN50438-1
GT4XXXXXXB
Hungary
GT4XXXXXXC
Belgium
GT4XXXXXXD
Thailand MEA
GT4XXXXXXE
Thailand PEA
GT4XXXXXXF
Sp1663
GT5XXXXXX0
CQC-1
GT5XXXXXX1
TAIWAN
GT5XXXXXX2
EN50438-Ireland
GT5XXXXXX3
TUV000
GT5XXXXXX4
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
Country/region / regulations
DIP switch status

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
