6.5.2 Use of RS232 port
RS232 port is mainly used for monitoring connection with PC, users can monitor ,set
parameters and update the software of the machine through RS232 connection with
machine and PC, using the shinebus software developed by Growatt.
About ShineBus software, when you needed, please download from official website
of Growatt.
About ShineBus software, when you needed, please download from official website
of Growatt.

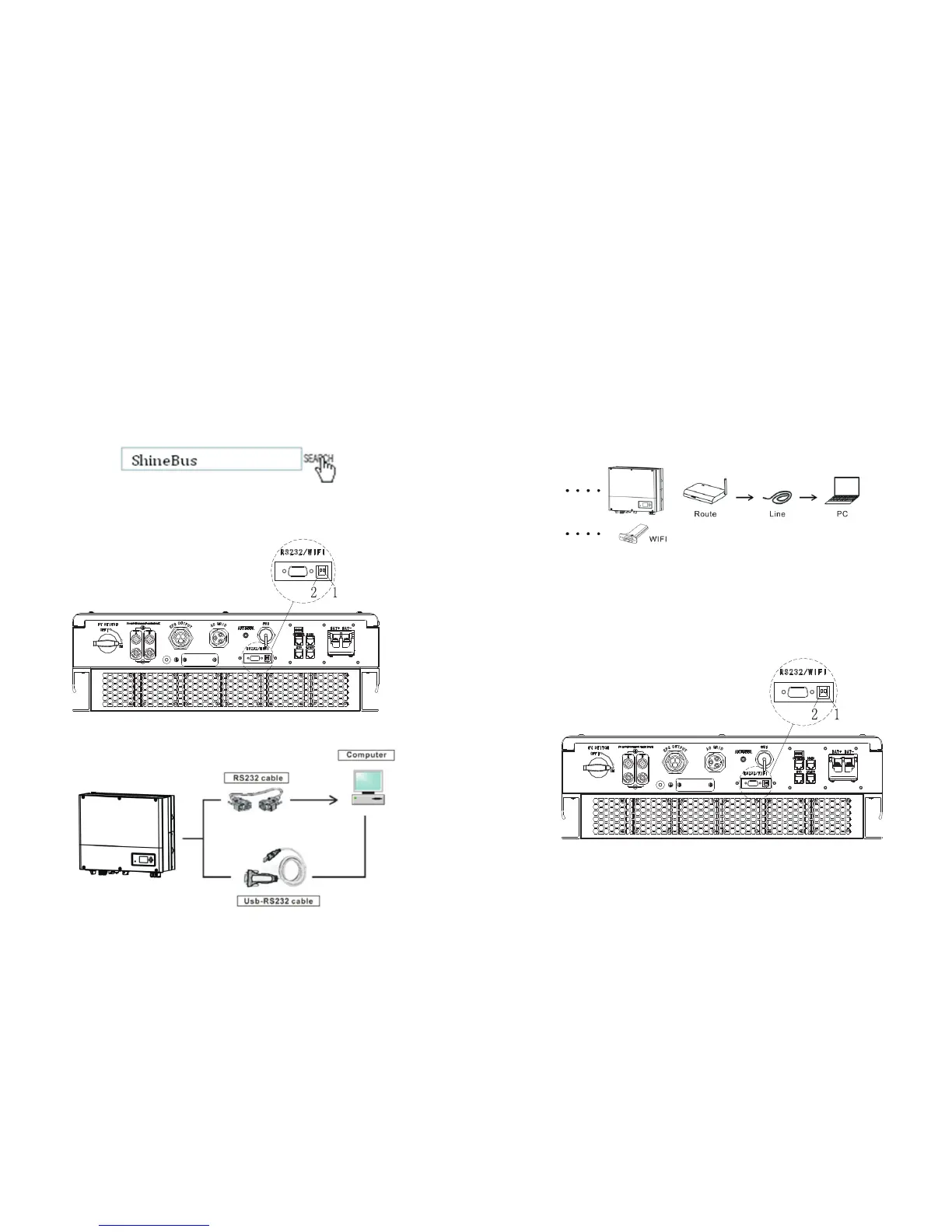

Chart 6.13
Before use RS232 communication, you should make sure the follow PIN1 and PIN2
are OFF:
Chart 6.14
The wiring diagram is as follows:
Chart 6.15
6.5.3 The SPH's monitoring
The SPH provide RS232 interface. Users can through the following communication
solution to monitor the SPH.
NOTE: this kind of monitoring, Can only be used by the monitor of Growatt's Shine
server software provided by the company.
Through RS232 interface connect to WIFI/3G, use computer terminal for data
monitoring.
Chart 6.16
Before use WIFI communication, you should make sure the follow PIN1 and PIN2
are ON:
Chart 6.17

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
