Growatt SPH4000 User Manual

5
6

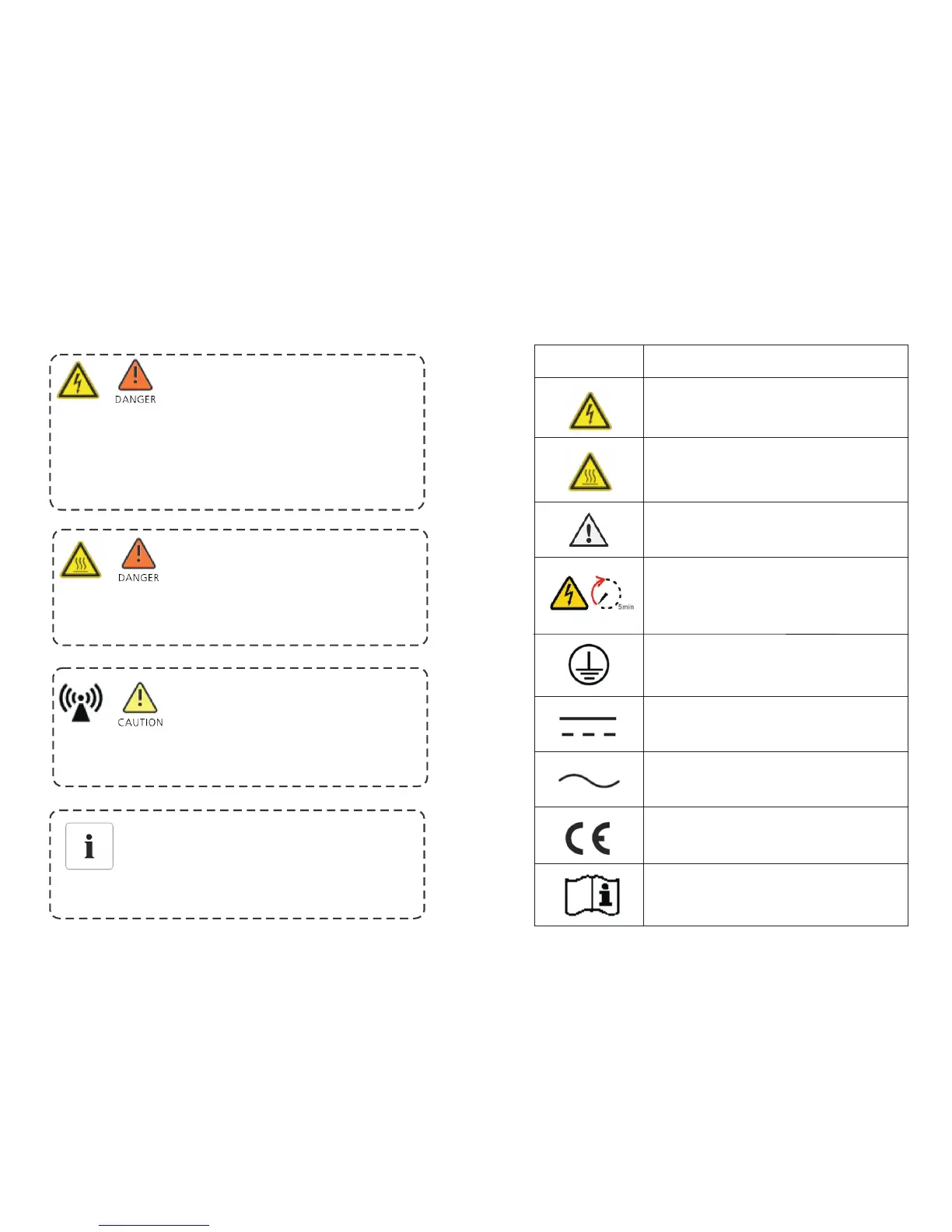

2.2 Safety Measure
2.3 Symbols introduction on the SPH inverter
·Relevant operation for professional personnel.
·Please notice children, disabled, laypeople do not close
·Supervise and make sure children don’t play near the
installation position of energy storage machine
Risk of high voltage！
Risk of burns on the parts shell of SPH inverter！
SPH inverter exists radiation maybe affect health！
Don’t stay a long time within 20cm from SPH inverter.
During the work, Cover, shell around, radiator is likely to be hot.
SPH inverter ground connection
Please ensure SPH inverter ground connection is reliable for make sure people's
safety.
Symbol
Description
Caution: Risk of electrical shock!
Caution : hot surface
Protective conductor terminal
Direct Current(DC)
Alternating Current(AC)
The inverter complies with the requirements of the
applicable CE guidelines
Caution: risk of danger
Danger to life due to high voltage in SPH
There is residual voltage in SPH, SPH requires 5 minutes
to discharge.
Please wait 5 minutes before you open the upper lid
or the DC lid.
Refer to the operating instructions.

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
