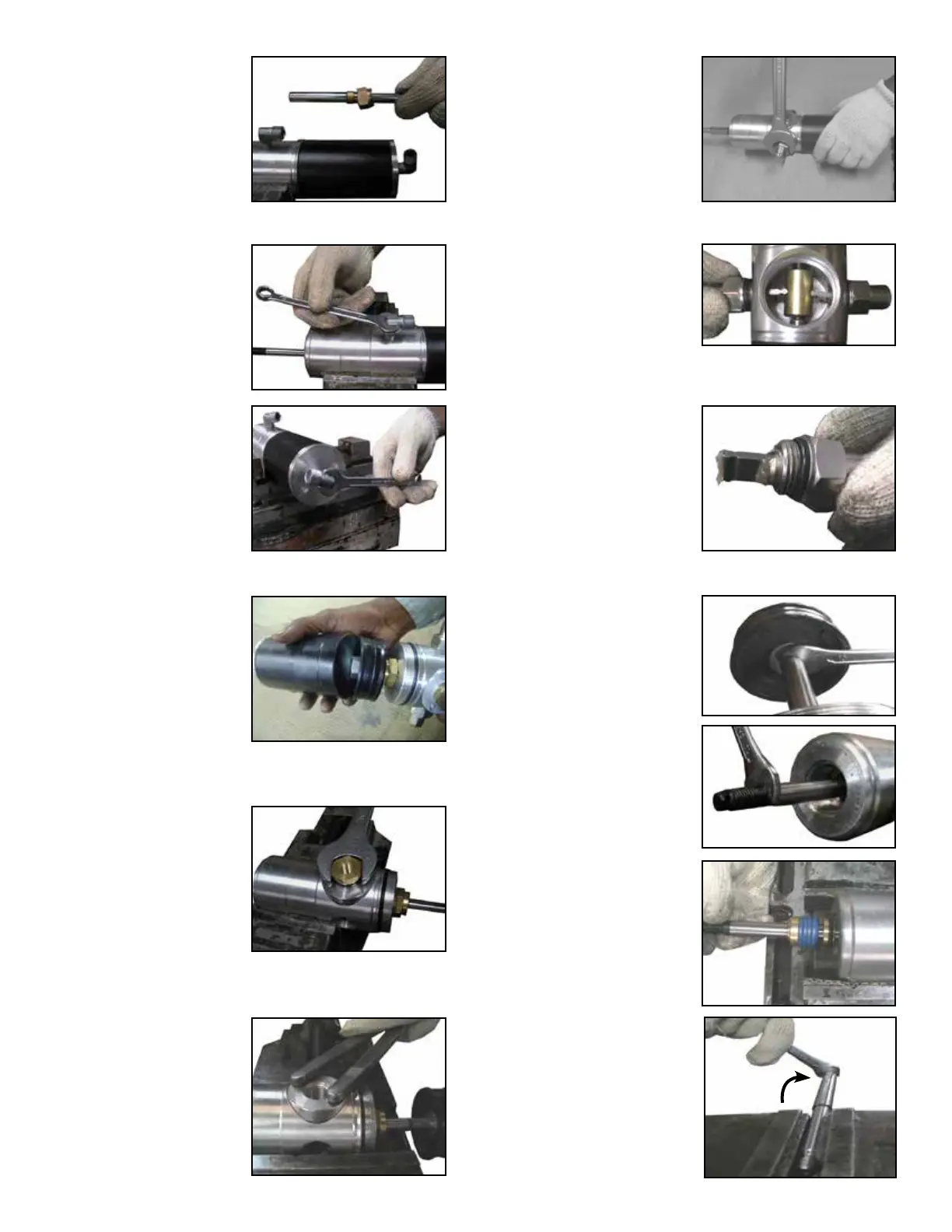

8. Remove Bend Pipe (1)
along with both Coupling
Nuts (2) & Sealing Rings
(3). Unscrew Exhaust Valve
(23) with an adjustable
wrench.
9. Unscrew both Bends (4)
using wrench (size 13
mm).
10. Lightly tap Cylinder (10)
with a plastic hammer &
unscrew it .
11. Unscrew Inlet Cover
Adapter (34) using wrench
(size 25 mm).
12. Connect a caliper wrench
into the holes on inlet
Cover (32) & unscrew it.
13. Unscrew both Pushers
(15) using wrench (size
25 mm).
14. Remove both Pushers
(15), Springs (17), Pusher
Nuts (18) & Pusher
Buttons (19).
15. Using two wrenches
(size 10 mm), hold
Plunger Rod (9) &
turn Connecting Rod
(43) anticlockwise.
This will unscrew
Connecting Rod (43).
16. Remove Connecting
Rod (43) along with
Washer (42), Spring (41),
Seal Support (40), Seals
(39) & Slider Guide (38).
If Connecting Rod (43) is
still attached to the inner
rod of Slider (30), hold
the inner rod in a vice &
unscrew Connecting Rod
(43) with wrench (size 10
mm).
