Start-up
48 | 84
BA-118940_en_035_GENODOS
-GP.docx
6.1.3 Set dosing capacity and stroke frequency
The dosing capacity (dosing volume H
2
O) is only allowed to be set
on the stroke length controller with the pump running (in operation)
according to the water pressure.
If the GENO-Baktox pump and the chlorine pump for DM-T sys-
tems are lead-sealed, the adjustment can be dispensed with.
► Adjust the dosing capacity (stroke and frequency) by measur-
ing volumetrically:
The adjustment of the dosing volume per stroke is continuously
variable from 0 – 100. The effective setting range is between 30
and 100.

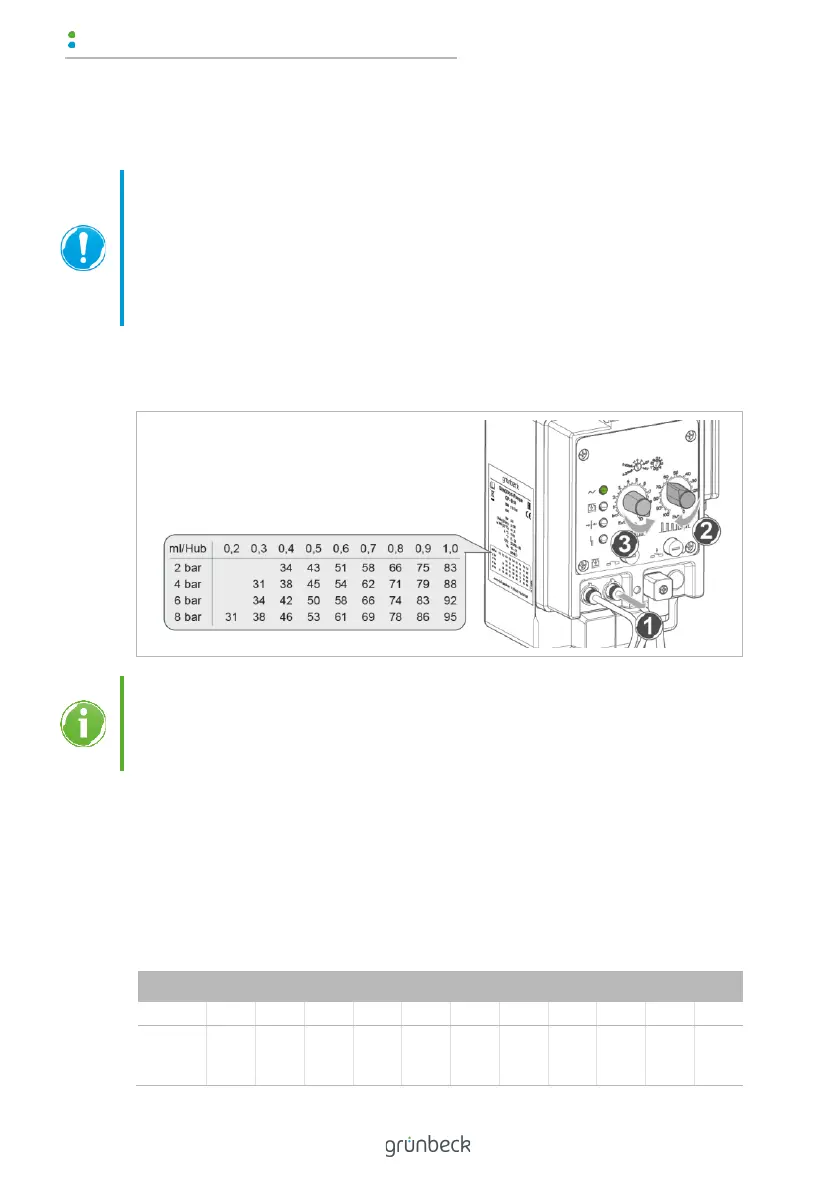

1. Disconnect the external connection.
2. Adjust the required dosing capacity at the stroke length con-
troller (only in operation) – refer to table on type plate.
3. Set the number of strokes/min (stroke frequency) with the in-
ternal control selector between 1 and 10 accordingly.
Internal control
Item
Int.
1
2
3
4
5
6
7
8
9
10
Stro-
kes/
min.
6
19
29
38
46
56
65
75
85
94
109
