Fig. 4 Example of a CIM 200 solution for Demand Driven
Distribution
3.3 CIM 260 3G/4G cellular Modbus
You can establish remote communication via CIM/CIU 260 by
using one of the following options:
• Modbus RTU protocol via a cellular call-up connection
• Modbus TCP protocol via a cellular data connection
• SMS commands from a mobile phone.

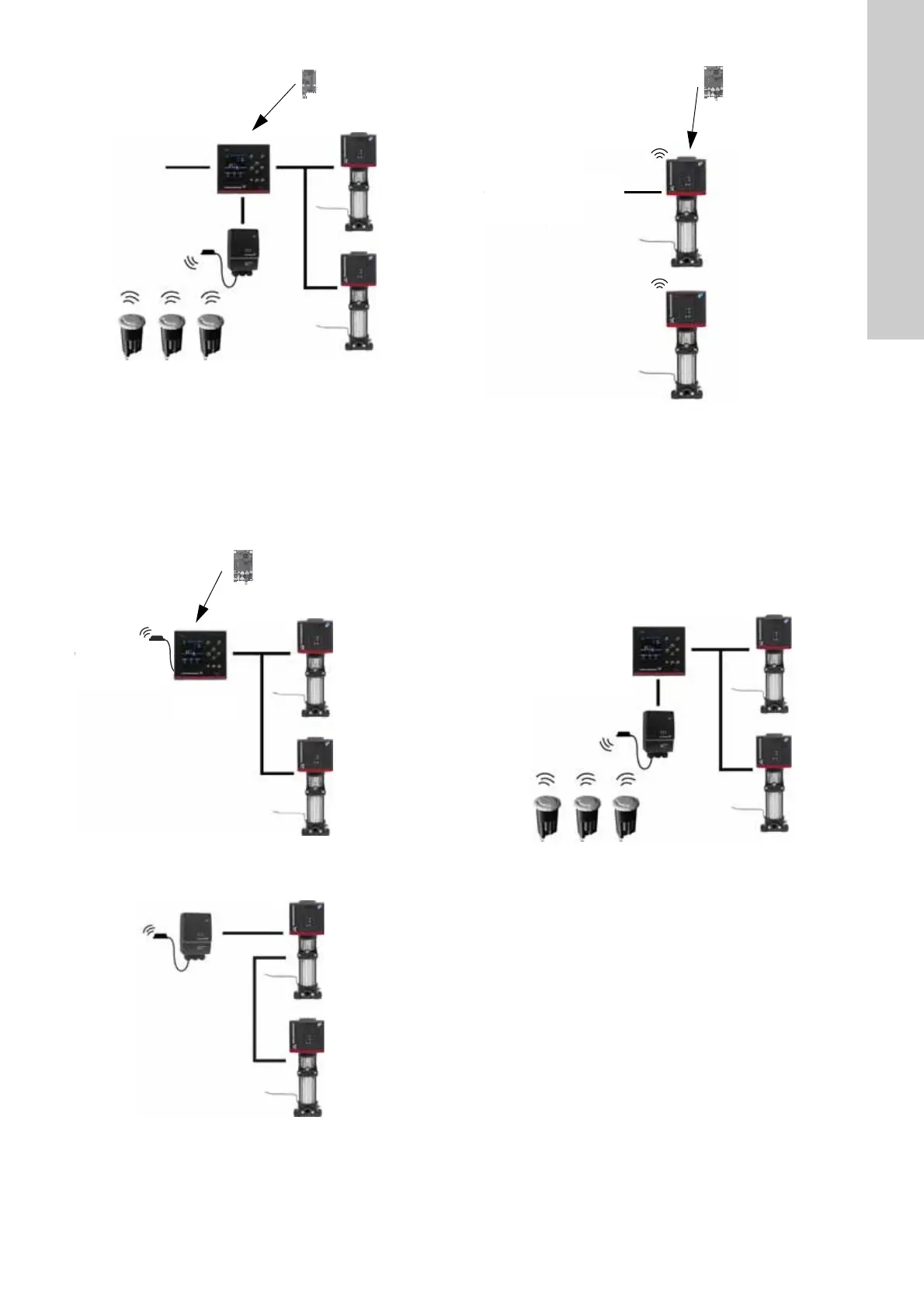

Fig. 5 Example of a CIM 260 solution. The module is
installed inside the CU 352 controller
Fig. 6 CIU 260 solution for Hydro Multi-E model G
Fig. 7 Example of a CIM 260 solution for Hydro Multi-E
model H and later. Pumps connected via built-in radio
communication (Grundfos Glowpan)
The example for Multi-E model H and later is identical for TPED
model H and later and MAGNA3-D. In all cases, mount the CIM
module in the master pump placed to the left.
For the purpose of redundancy, you can mount a second CIM
module in pump 2 for TPED and Multi-E (not MAGNA3-D). In that
case, all writings from the Modbus master must be sent to both
CIM modules.
Fig. 8 Example of a CIU 260 solution for Demand Driven
Distribution
TM05 9498 3913TM04 2297 3913TM04 9209 3913
Sub-
GENIbus
RS-485
Modbus RTU
RS-485
Service
port
CU 354
CIU 260 +
CIM 040
DDD sensors
CIM 200
1 2 345 67
8
9
Sub-
GENIbus
RS-485
Hydro MPC
(CU 352)
1
23 45
6
CIM 260
CIU 260
GENIbus
RS-485
Cellular
CRE with
Hydro Multi-E
add-on
Sub-GENIbus
RS-485
TM07 0146 4317TM05 9498 3913
CIM 260
1
23 45
6
Cellular
Sub-
GENIbus
RS-485
Service
port
CU 354
CIU 260 +
CIM 040
DDD sensors
Cellular
