English (GB)
14
7.4 Establishing connection to the webserver
You can configure CIM 500 using the built-in webserver. To
establish a connection from a PC to CIM 500, the following steps
are required:
• Connect the PC and CIM 500 using an Ethernet cable.
• Configure the PC Ethernet port to the same subnetwork as
CIM 500, for example 192.168.1.101, and the subnet mask to
255.255.255.0. See section A.1 How to configure an IP
address on your PC on page 61.
• Open a standard internet browser and type 192.168.1.100 in
the URL field.
• Log in to the webserver:

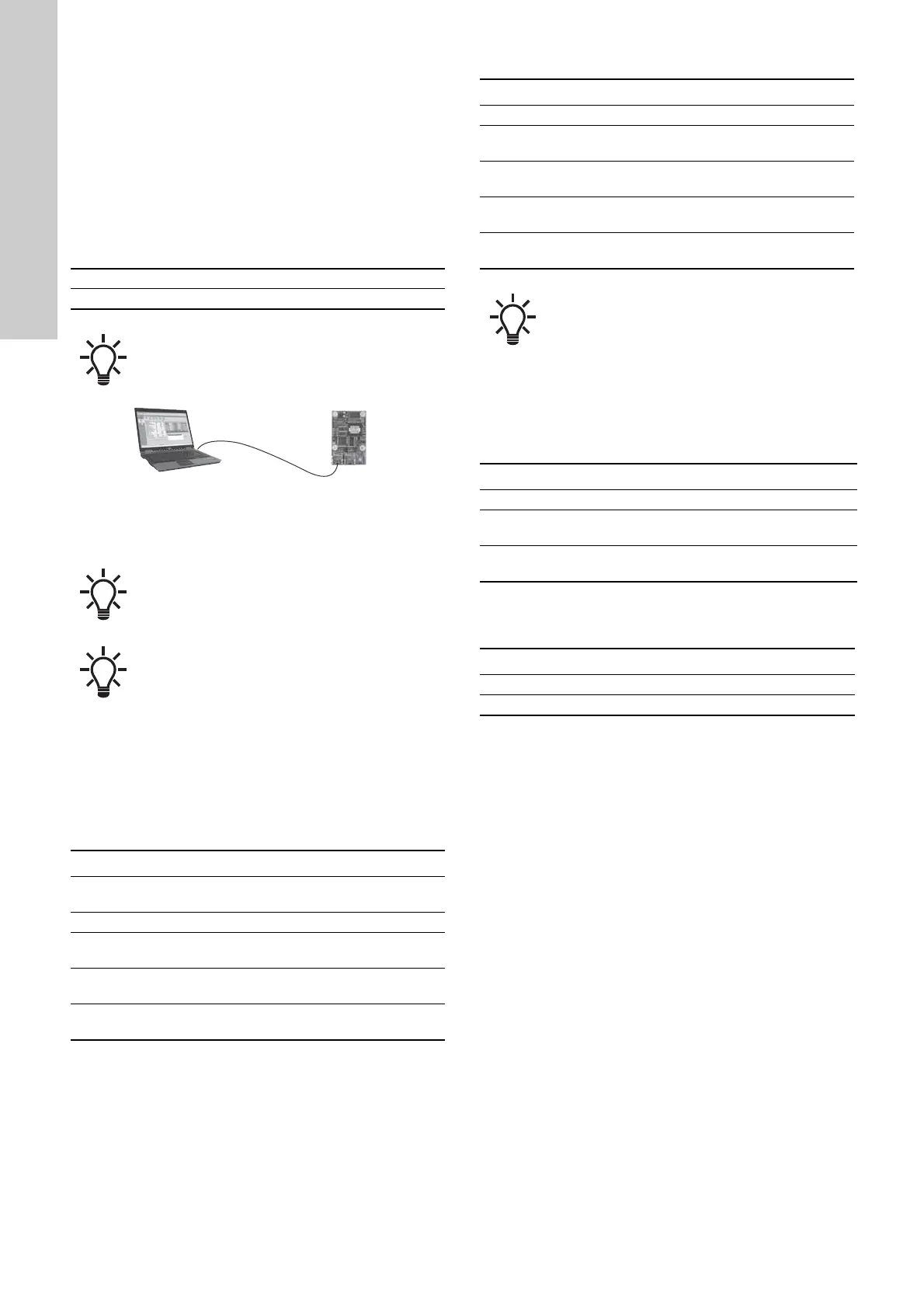

Fig. 26 CIM 500 connected to PC via Ethernet cable
For further information on how to use the webserver, see section
A.3 Login on page 62.
7.5 Status LEDs
The CIM 500 Ethernet module has two status LEDs: LED1 and
LED2. See fig. 24.
• Red and green status LED1 for Ethernet communication
• Red and green status LED2 for internal communication
between CIM 500 and the Grundfos product.
LED1
LED2
7.6 DATA and LINK LEDs
The CIM 500 Ethernet module has two connectivity LEDs related
to each RJ45 connector. See fig. 24.
DATA1 and DATA2
These yellow LEDs indicate data traffic activity.
LINK1 and LINK2
These green LEDs show whether the Ethernet cable is properly
connected.
Username Default: admin
Password Default: Grundfos
Username and password may have been changed
from their default values.
TM05 6436 4712
You can use both ETH1 and ETH2 to establish a
connection to the webserver.
You can access the webserver while the selected
Industrial Ethernet protocol is active.
Status Description
Off
No Modbus TCP communication or
switched off.
Flashing green Modbus TCP communication active.
Permanently red
CIM 500 module configuration fault.
See section 14.3.1 LED status.
Permanently red and
green
Error in the firmware download.
See section 14.3.1 LED status.
Flashing red and
green
Resetting to factory default.
After 20 seconds, CIM 500 restarts.
Status Description
Off CIM 500 is switched off.
Flashing red
No internal communication between CIM
500 and the Grundfos product.
Permanently red
CIM 500 does not support the Grundfos
product connected.
Permanently green
Internal communication between CIM
500 and the Grundfos product is OK.
Permanently red and
green
Memory fault.
During startup, there is a delay of up to 5 seconds
before LED1 and LED2 status is updated.
Status Description
Yellow off No data communication on the RJ45 connector.
Yellow
flashing
Data communication ongoing on the RJ45
connector.
Permanently
yellow
Heavy network traffic.
Status Description
Green off No Ethernet link on the RJ45 connector.
Green on Ethernet link on the RJ45 connector is OK.
