Grundfos CRE - Signal Relay Outputs

4.5.3 Connection of E-pump to LiqTec®
1
2
3
4
5
8
9
7
10
6
TM030437

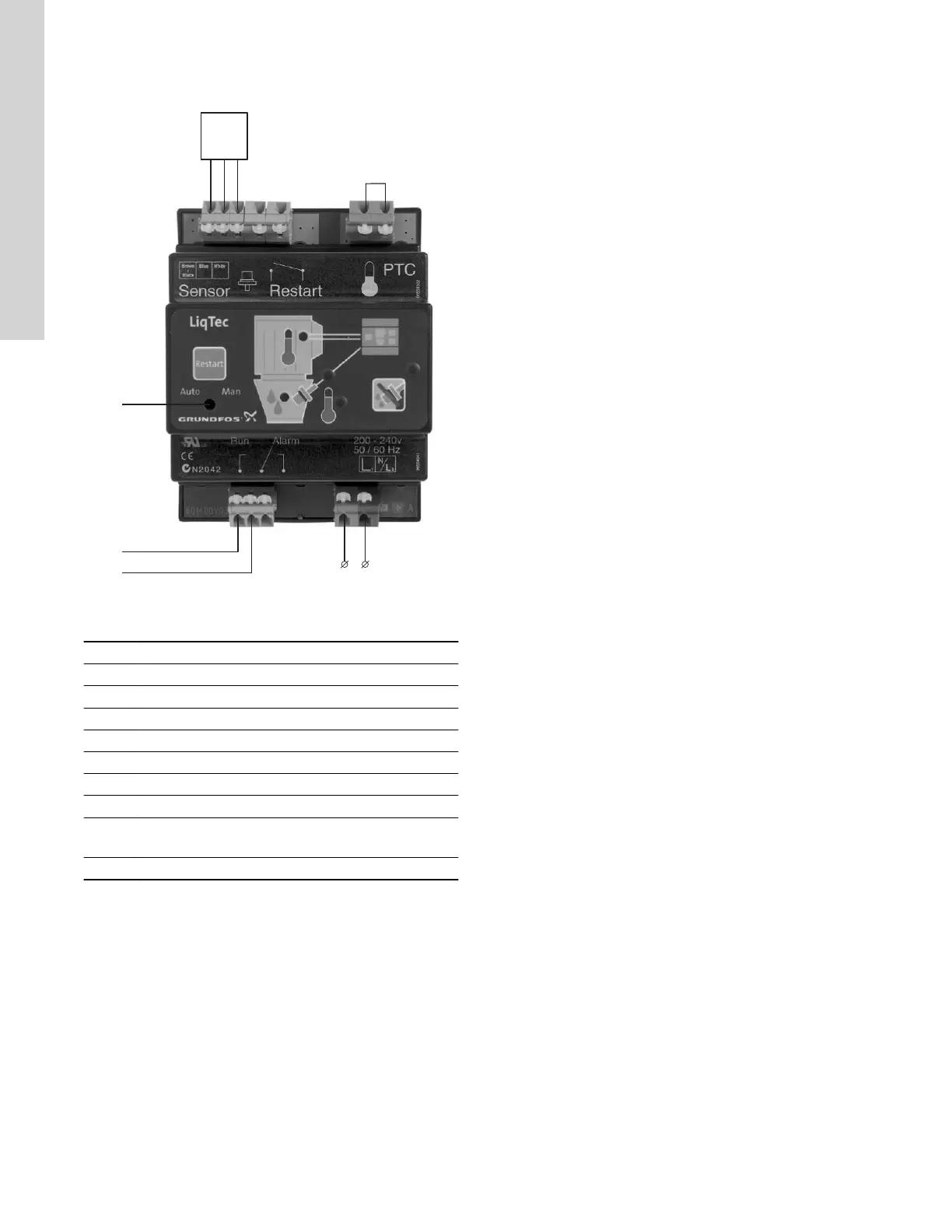

Connection of E-pump to LiqTec
Pos. Description
1 Dry-running sensor
4 Brown
5 Black
6 Blue
7 White
8 Jumper cable
9 Set to automatic resetting
10
Connection terminals on E-pump:
2 (Start/Stop) and 3 (GND)
11 1 x 200-240 VAC or 1 X 80-130 VAC
10
