0
10 V
0
20 mA
4
20 mA
1
2
3
4
B
A
TM028988

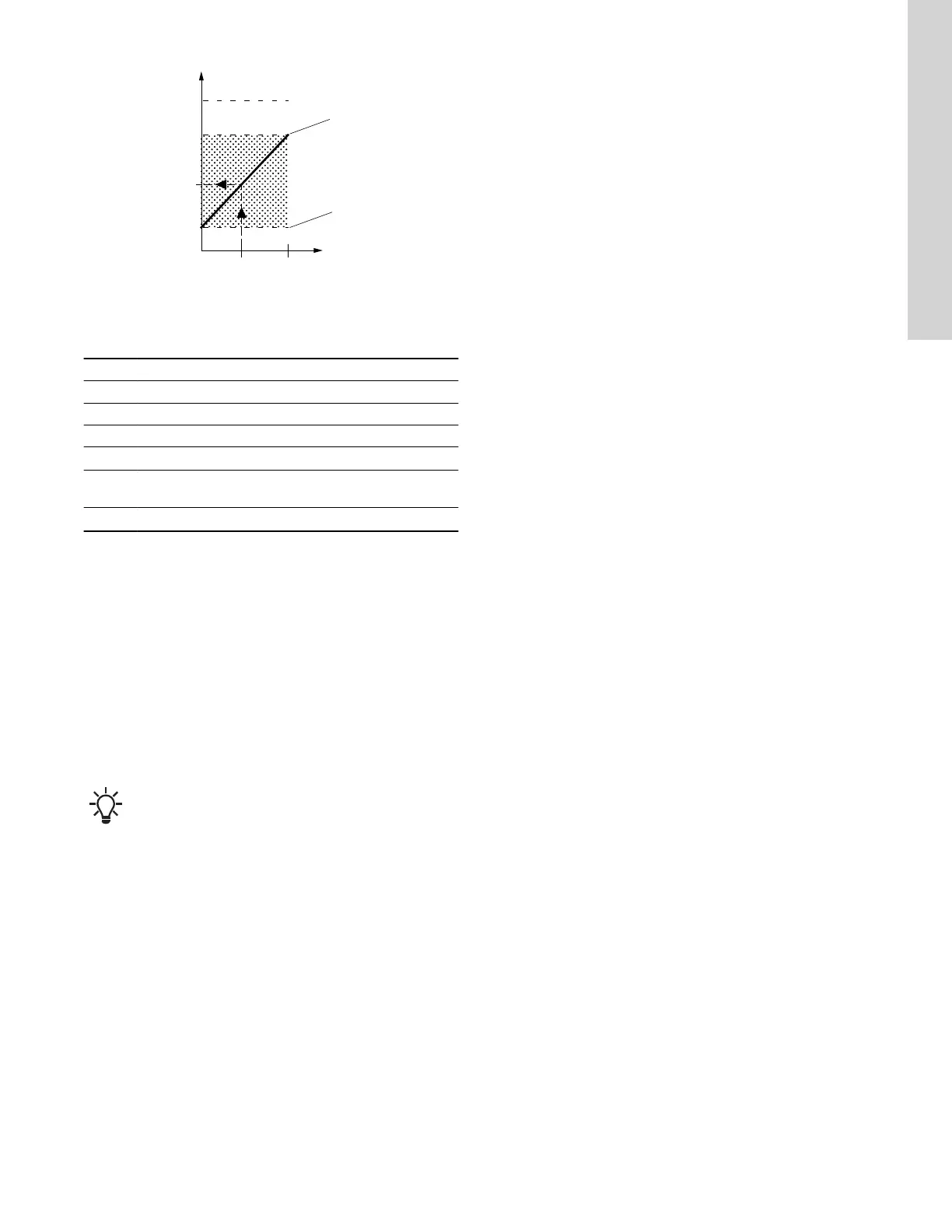

Relation between the actual setpoint and the external setpoint
signal in control mode uncontrolled
Pos. Description
A Actual setpoint
B External setpoint signal
1 Actual setpoint
2
Max
curve
3
Setpoint set by means of control panel, R100 or PC Tool
E-products
4
Min
curve
Related information
5.4.3 External setpoint
5.6 Typical display settings for analog-input E-pumps
5.9 Bus signal
The pump supports serial communication via an RS-485 input. The
communication is carried out according to Grundfos bus protocol,
GENIbus protocol, and enables connection to a building
management system or another external control system.
Operating parameters, such as setpoint, operating mode, etc. can
be remote-set via the bus signal. At the same time, the pump can
provide status information about important parameters, such as
actual value of control parameter, input power, fault indications, etc.
Contact Grundfos for further details.
If a bus signal is used, the number of settings available via
the R100 will be reduced.
5.10 Other bus standards
Grundfos offers various bus solutions with communication
according to other standards.
Contact Grundfos for further details.
25
English (US)

Grundfos CRE Specifications

General

Protection Class	IP55
Material	Stainless Steel
Applications	Water supply, pressure boosting, irrigation
Impeller Material	Stainless Steel
Pump Housing Material	Stainless Steel
Connection Size	DN32 to DN200 (depending on model)
Power Supply	3-phase
Control	Integrated frequency converter
