3.3.3 Connecting products without a cable
3.3.3 Connecting products without a cable
WARNING
Electric shock
Death or serious personal injury
‐ Power supply cables without a plug
must be connected to a supply
disconnecting device incorporated in
the fixed wiring according to the local
wiring rules.
Do not turn on the power supply until the
pump has been filled with liquid.
If the product is delivered without a cable, please
connect the pump to the power supply using one of
the following cable types:
Pump model Recommended cable type
JP 3-42 and JP 4-47 H05 RN-F
JP 4-54 and JP 5-48 H07 RN-F

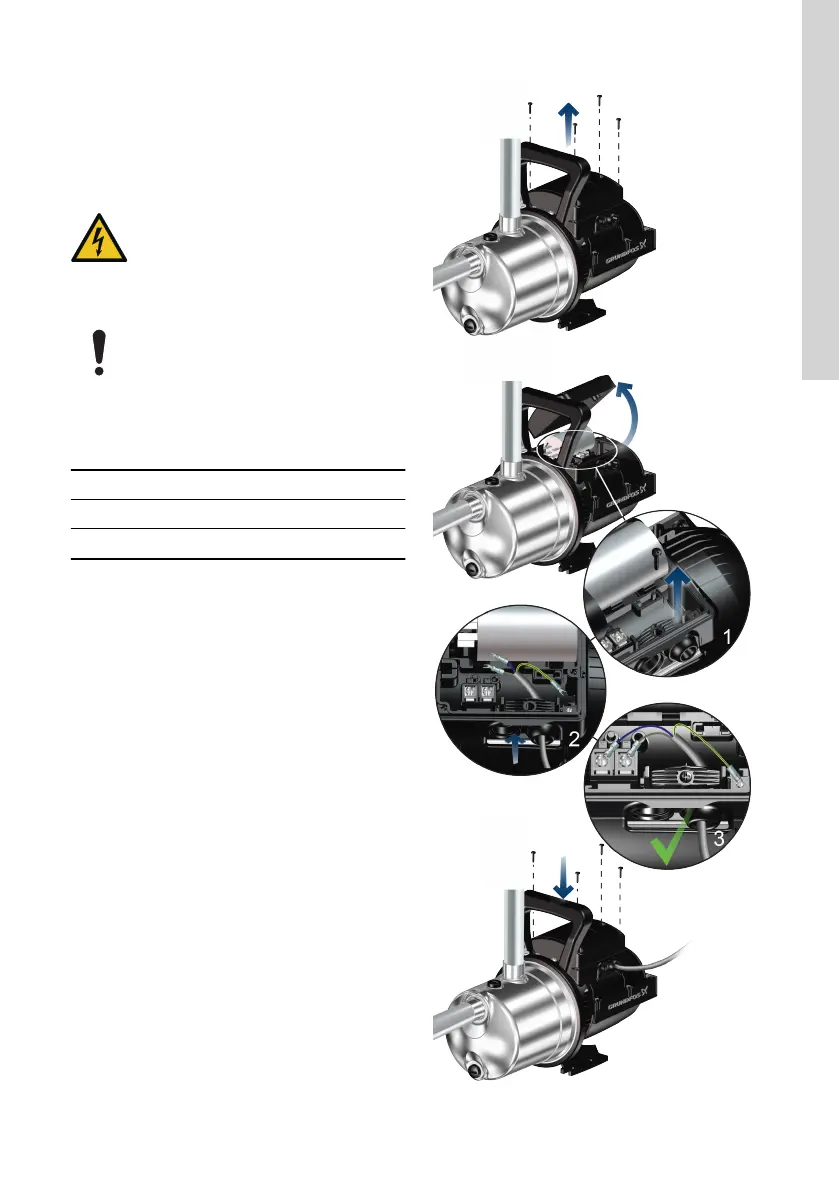

Do as follows to connect the cable to the pump:
1. Remove the top cover on the motor by loosening
the screws.
2. Locate the power-supply terminal and cable
clamp inside the terminal box.
3. Loosen the cable clamp.
4. Pull one end of the cable through the cable gland
located on the side of the terminal box.
5.
Strip the cable conductors and add cable shoes.
TM072423
11
English (GB)

Grundfos JP Specifications

General

Power supply	Electric
Material	Stainless Steel, Cast Iron
Applications	pressure boosting
Pump Type	Self-priming centrifugal pump
Horsepower	1.5 HP
Phase	Single-phase
Inlet Size	1 inch
Outlet Size	1 inch
