Grundfos KP 150 User Manual

4
CONTENTS
Page
1. General description 4
1.1 Applications 4
1.2 Operating conditions 4
1.3 Sound pressure level 5
2. Electrical connection 5
2.1 Checking of direction of rotation 5
3. Installation 5
3.1 Connection 5
3.2 Pump location 6
3.3 Adjustment of float switch 6
3.4 Vertical level switch 7
4. Operation and maintenance 7
4.1 Cleaning the pump 7
4.2 Replacement of parts 8
5. Fault finding chart 9
6. Disposal 9
Before beginning installation procedures,
these installation and operating instruc-
tions should be studied carefully. The in-
stallation and operation should also be in
accordance with local regulations and ac-
cepted codes of good practice.
1. General description

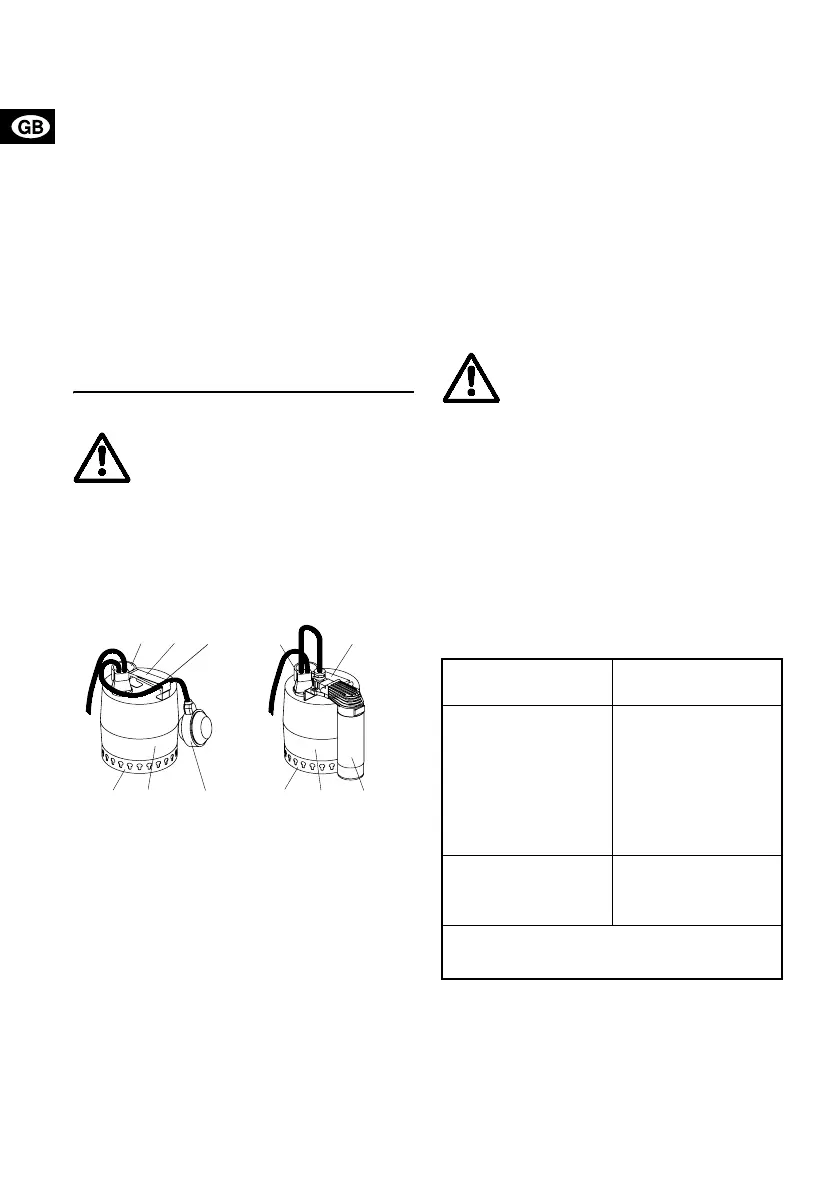

Fig. 1
1. Discharge port Rp 1¼.
2. Handle.
3. Clamp.
4. Suction strainer.
5. Outer casing.
6. Float switch.
7. Vertical level switch.
1.1 Applications
The GRUNDFOS KP 150, KP 250 and KP 350
pumps are single-stage submersible pumps de-
signed for pumping grey wastewater.
Pumps with float switch:
The pump is capable of pumping water which con-
tains a limited quantity of solids up to 10 mm in diam-
eter without being blocked or damaged.
The pump is suitable for automatic as well as manual
operation and can be installed in a permanent instal-
lation or used as a portable pump.
The pump is suitable for:
• pumping of wastewater from washing machines,
baths, sinks, etc. from low-lying parts of buildings
up to sewer level.
• drainage of cellars or buildings prone to flooding.
• pumping in draining wells.
• pumping in wells for surface water with inlets from
roof gutters, pits, tunnels, etc.
• emptying swimming pools, ponds or fountains.
Pumps with vertical level switch:
The pump must only be used for the pumping of
clean ground water and drain water.
General:
The pump is not suitable for pumping:
• liquids containing long fibres;
• inflammable liquids (oil, petrol, etc.);
• aggressive liquids.
Note: The pump contains approx. 70 ml of non-
poisonous motor liquid that may pollute the pumped
liquid if the pump should leak.
1.2 Operating conditions
Liquid temperature:
Minimum 0°C. The maximum liquid temperature
depends on the rated voltage of the pump, see the
table below.
* Voltage variant for KP 350
Storage
temperature: Not lower than –20°C.
Installation
depth: Maximum 10 metres below liquid
level.
1
2
3
1
2
45 6 45
7
TM01 1107 3797
With float switch
With vertical
level switch
The pump must not be used in or at swim-
ming pools, garden ponds, etc. when there
are persons in the water.
Voltage
Maximum
liquid temperature
1 x 100 V, 50 Hz
1 x 110 V, 50 Hz
1 x 100-110 V, 50 Hz*
1 x 220-230 V, 50 Hz
1 x 220-240 V, 50 Hz*
1 x 230-240 V, 50 Hz
1 x 100 V, 60 Hz
1 x 115 V, 60 Hz
1 x 220 V, 60 Hz
+35°C
+40°C
+40°C
+50°C
+50°C
+50°C
+35°C
+50°C (+45°C KP 350)
+40°C
3 x 200 V, 50 Hz
3 x 380-400 V, 50 Hz*
3 x 380-415 V, 50 Hz
3 x 200 V, 60 Hz
+35°C
+50°C
+50°C
+35°C
At intervals of at least 30 minutes, the pump is
allowed, however, to run at maximum +70°C for
periods not exceeding 2 minutes.

Grundfos KP 150 Specifications

General

Cable Length	10 m
Protection Class	IP68
Passage for Solids	10 mm
Frequency	50 Hz
Housing Material	Stainless steel
Voltage	230 V
Pump Type	Submersible
