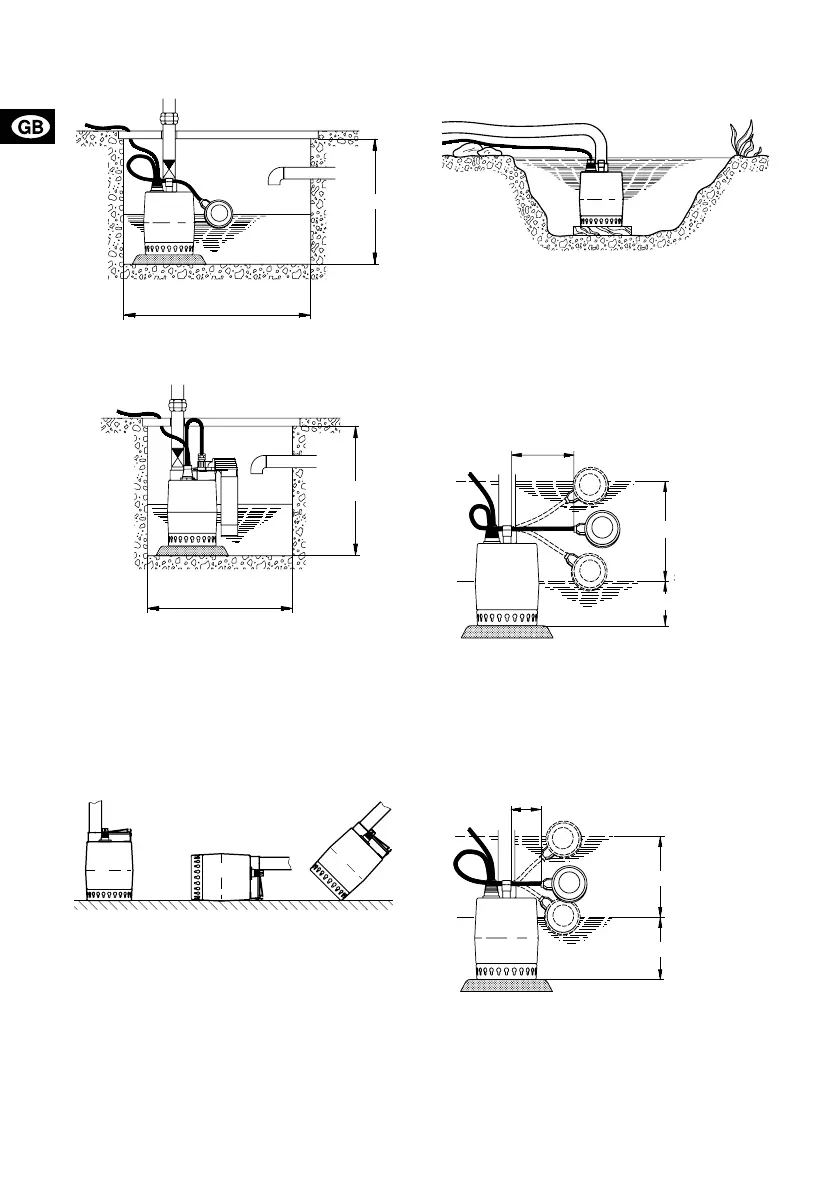

Fig. 4

Fig. 5

3.2 Pump location

Pumps without or with float switch can be used in

vertical position with the discharge port uppermost or

in horizontal or tilted position with the discharge port

as the highest point of the pump, see fig. 6.

Pumps with vertical level switch must be used in ver-

tical position.

Fig. 6

When the pipe/hose has been connected, the pump

is ready for use.

Note: Do not lift the pump by means of the electric

cable. Lift the pump by means of the discharge pipe/

hose or a wire secured to the handle of the pump.

Before positioning the pump, make sure that the suc-

tion strainer will not be blocked or partly blocked by

silt, mud or similar materials.

This can be avoided by positioning the pump on

bricks, an iron plate, etc., see fig. 7.

Fig. 7

3.3 Adjustment of float switch

The difference in level between start and stop can be

adjusted by changing the free cable length between

the handle of the pump and the float switch.

Large difference in level: long free cable. This ca-

ble length must not exceed 150 mm, see fig. 8.

Fig. 8

* For KP 350 the distance between the bottom of the

suction strainer and the lowest level of the float is

110 mm.

Small difference in level: short free cable. This ca-

ble length must at least be 70 mm, see fig. 9.

Fig. 9

* For KP 350 the distance between the bottom of the

suction strainer and the lowest level of the float is

150 mm.

‹

‹‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

ø 350 mm

400 mm

TM00 1547 1697

ø 350 mm

400 mm

With float switch

•

• • •

•

••

•

••

•

••

•

ø 250 mm

400 mm

TM01 1109 1098

With vertical level switch

400 mm

TM00 1548 0493

‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹

‹‹‹‹‹‹

‹‹‹‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

TM00 1549 0493

••••••••••••••

••••••••••••

•••••••••••

••••••••••••

•••••••••••

••••••••••

•••••••••••

••••••••••

•••••••••

••••••••

Max.

150mm

Start

Stop

100mm

225mm

TM00 1552 1697

225 mm

Start

100 mm (110 mm*)

Max.

150 mm

Stop

‹‹‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹‹

‹‹‹‹‹‹‹

Min.

70 mm

Start

Stop

150 mm

140 mm

TM00 1551 1098

150 mm

Start

140 mm (150 mm*)

Min.

70 mm

Stop

Cable Length	10 m
Protection Class	IP68
Passage for Solids	10 mm
Frequency	50 Hz
Housing Material	Stainless steel
Voltage	230 V
Pump Type	Submersible
