1. General
The LON module is an expansion module for circulator pumps GRUNDFOS
MAGNA Series 2000.
The LON module offers the possibility of connecting the pump to a LonWorks
network. The module is used for data transmission between a network and
pumps of the type GRUNDFOS MAGNA Series 2000.
For further information, see the documentation files on the floppy disk sup-
plied with the LON module.
2. Connection to network
Pumps fitted with a LON module are registered by the LonWorks network in
one of the following ways:
• Activate the “Service PIN” button on the module. Then the module trans-
mits a unique 48 bit ID-code (Neuron ID), which is registered by the net-
work.
• The bar code on the module or the additional label supplied is scanned
and registered by the network. The bar code is in Code 39 format. The ad-
ditional label can be attached to the building installation plan.
Before removing the terminal box module, these fitting instructions
should be studied carefully. The installation and operation should
also be in accordance with local regulations and accepted codes of
good practice.

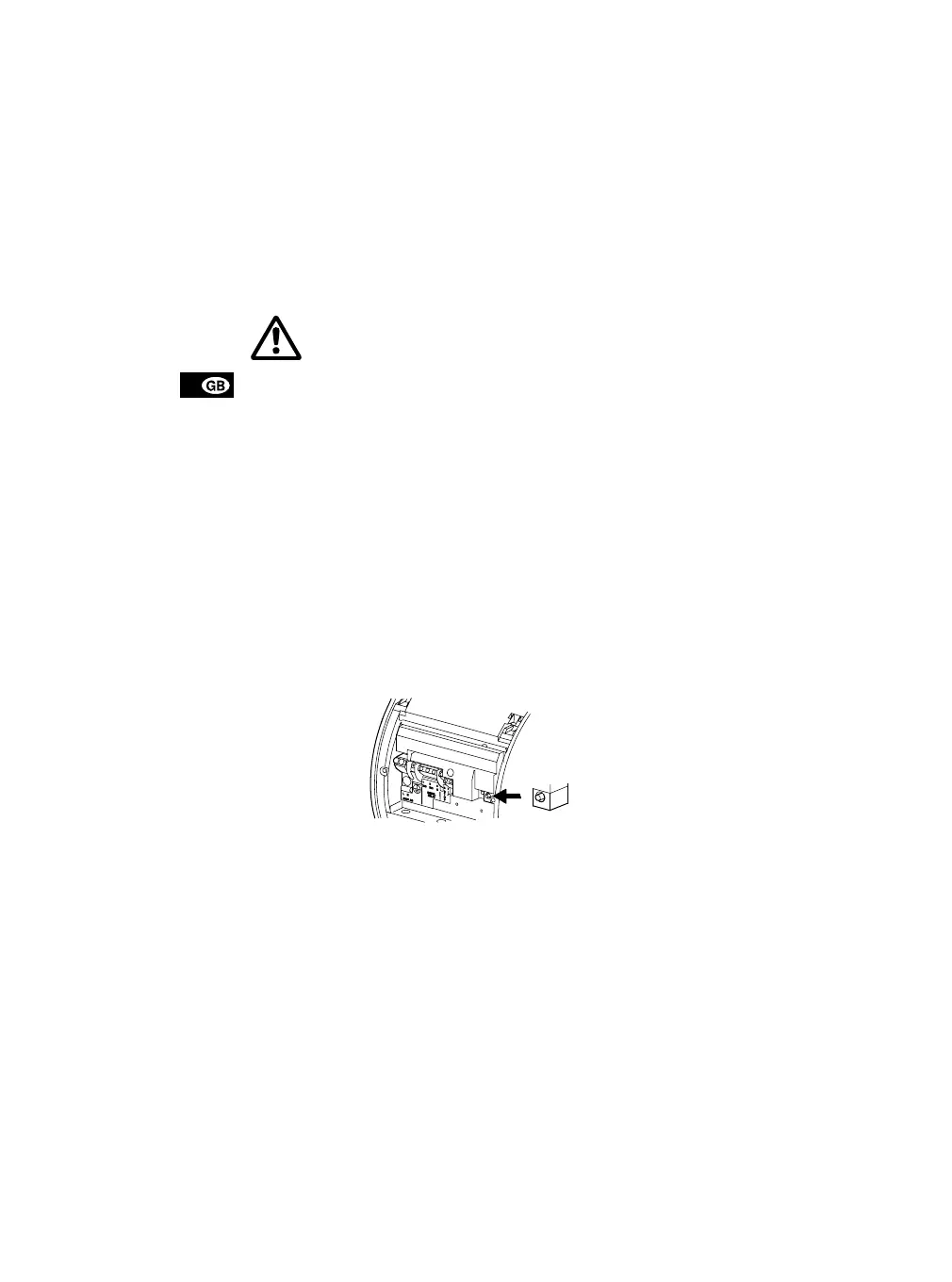

TM02 0244 0904
Service PIN
