2. Receiving the product
2.1 Inspecting the product
Check that the product is in accordance with the order.
Check that the voltage and frequency of the product match the
voltage and frequency of the installation site. See section
6.3.1 Nameplate.
2.2 Scope of delivery
2.2.1 Terminal-connected single-head pump

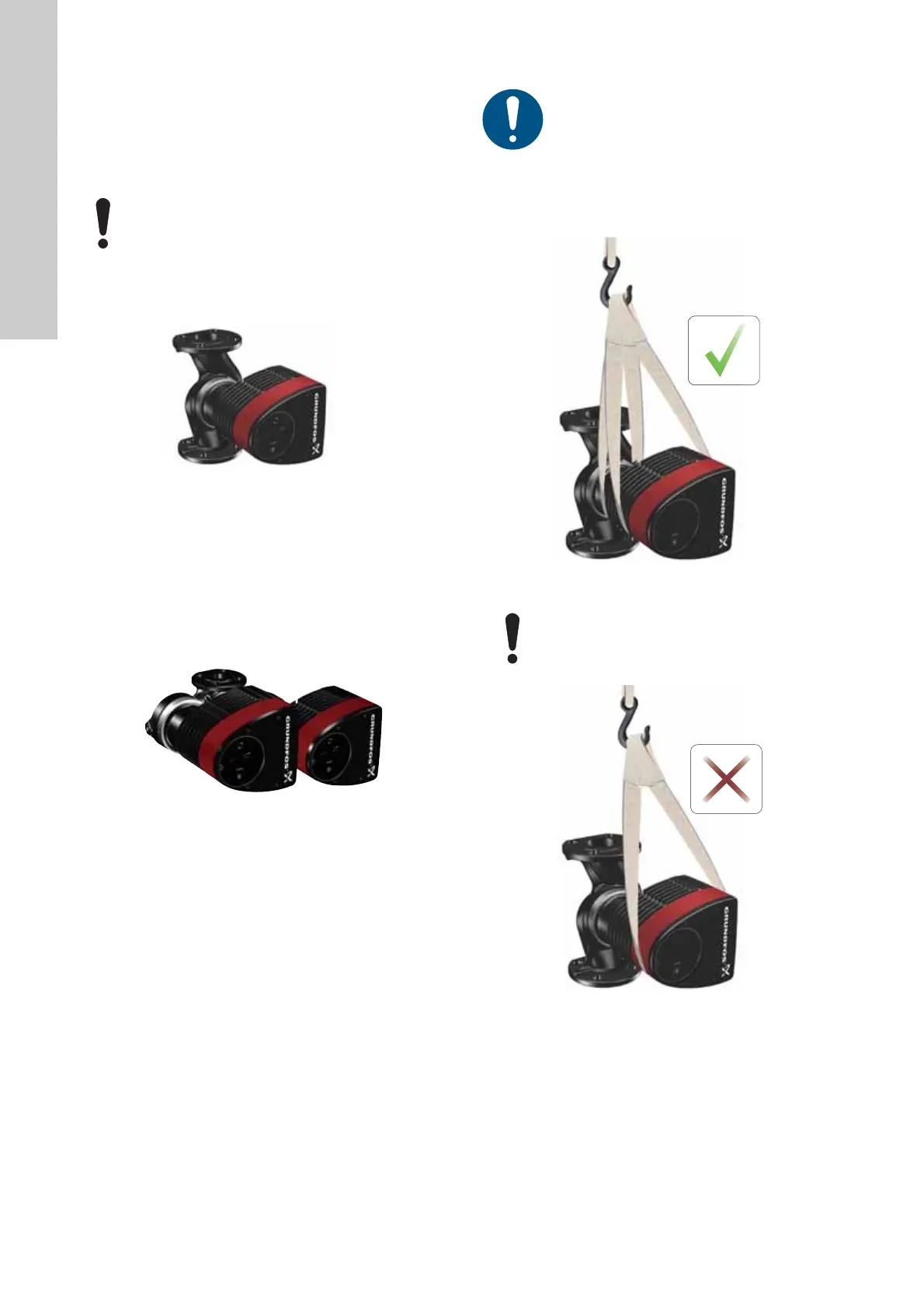

Fig. 1 Terminal-connected single-head pump
The box contains the following items:
• MAGNA1-pump
• insulating shells
•gaskets
• quick guide
• safety instructions
• box with terminal and cable glands.
2.2.2 Terminal-connected twin-head pump
Fig. 2 Terminal-connected twin-head pump
The box contains the following items:
• MAGNA1-pump
•gaskets
• quick guide
• safety instructions
• two boxes with terminal and cable glands.
2.3 Lifting the pump
Always lift directly on the pump head or the cooling fins when
handling the pump. See fig. 3.
For large pumps, it may be necessary to use lifting equipment.
Position the lifting straps as illustrated in fig. 3.
Fig. 3 Correct lifting of pump
Fig. 4 Incorrect lifting of pump
Pumps tested with water containing anticorrosive
additives are taped on the inlet and outlet ports to
prevent residual test water from leaking into the
packaging. Remove the tape before installing the
pump.
TM06 7223 3016TM06 6741 3016
Observe local regulations concerning limits for
manual lifting or handling.
TM05 5819 3016
Do not lift the pump head by the control box, i.e. the
red area of the pump. See fig. 4.
TM06 7219 3016
