English (GB)
16

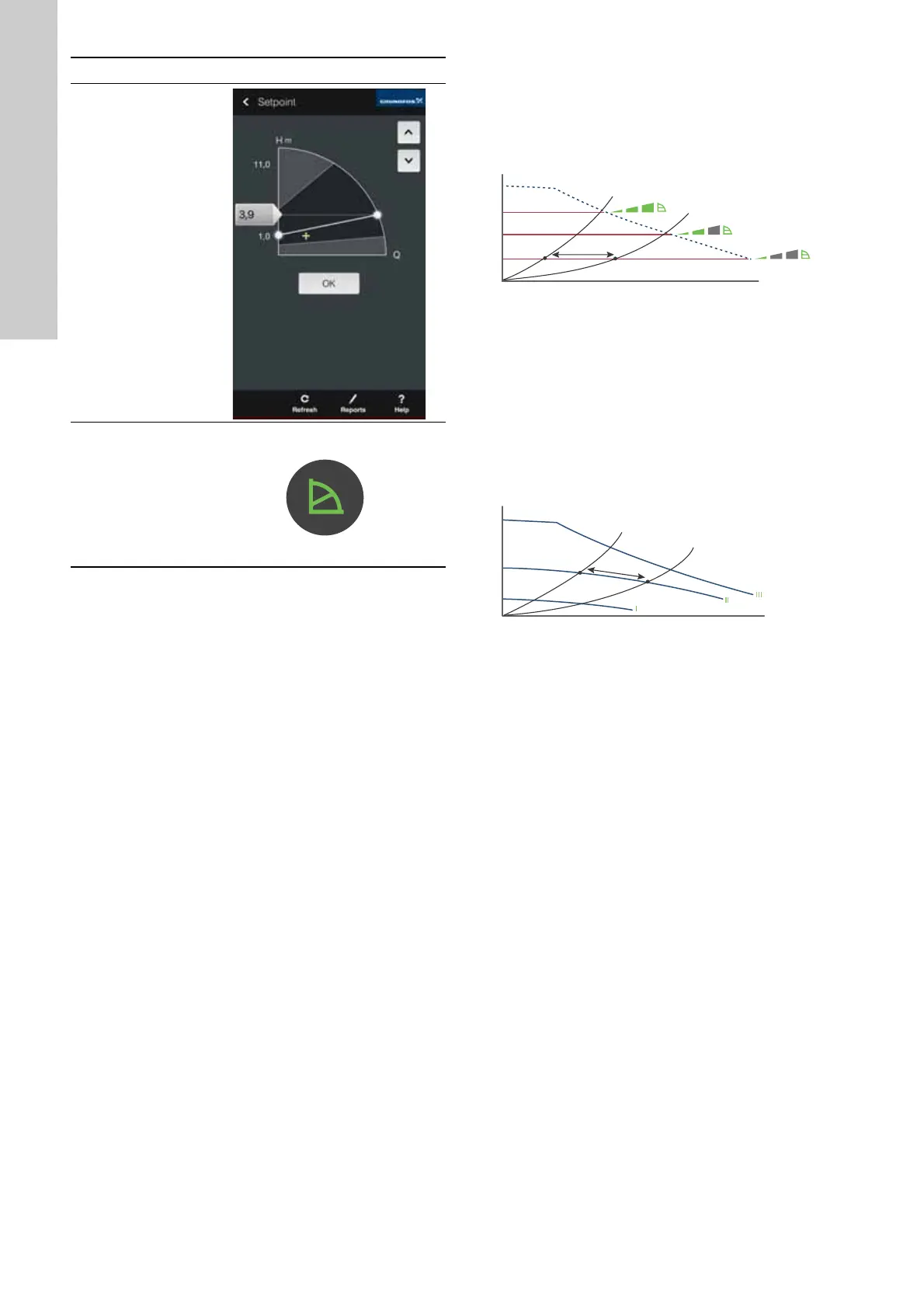

7.2 Constant-pressure curve (CP1, CP2 or CP3)
Constant-pressure control adjusts the pump performance to the
actual flow rate demand in the system, but the pump performance
follows the selected performance curve, CP1, CP2 or CP3. See
fig. 22 where CP1 has been selected. For further information, see
section 8. Fault finding the product.
Fig. 22 Three constant-pressure curves/settings
The selection of the right constant-pressure setting depends on
the characteristics of the system in question and the actual flow
rate demand.
7.3 Constant curve (I, II or III)
At constant-curve operation, the pump runs at a constant speed,
independent of the actual flow rate demand in the system. The
pump performance follows the selected performance curve, I, II
or III. See fig. 23 where II has been selected. For further
information, see section 8. Fault finding the product.
Fig. 23 Three constant-curve settings
The selection of the right constant-curve setting depends on the
characteristics of the system in question.
3
Use the arrows on
the top right of the
screen, or slide
the set point
indicator up and
down to adjust the
set point.
Press "OK".
TM06 8582 0817
4
When the pump
receives the set
point, the
proportional
pressure symbol
on the pump lights
up - none of the
level indicators
illuminate.
TM05 5554 3812
Step Action Illustration
TM05 5556 3812TM05 5557 3812
