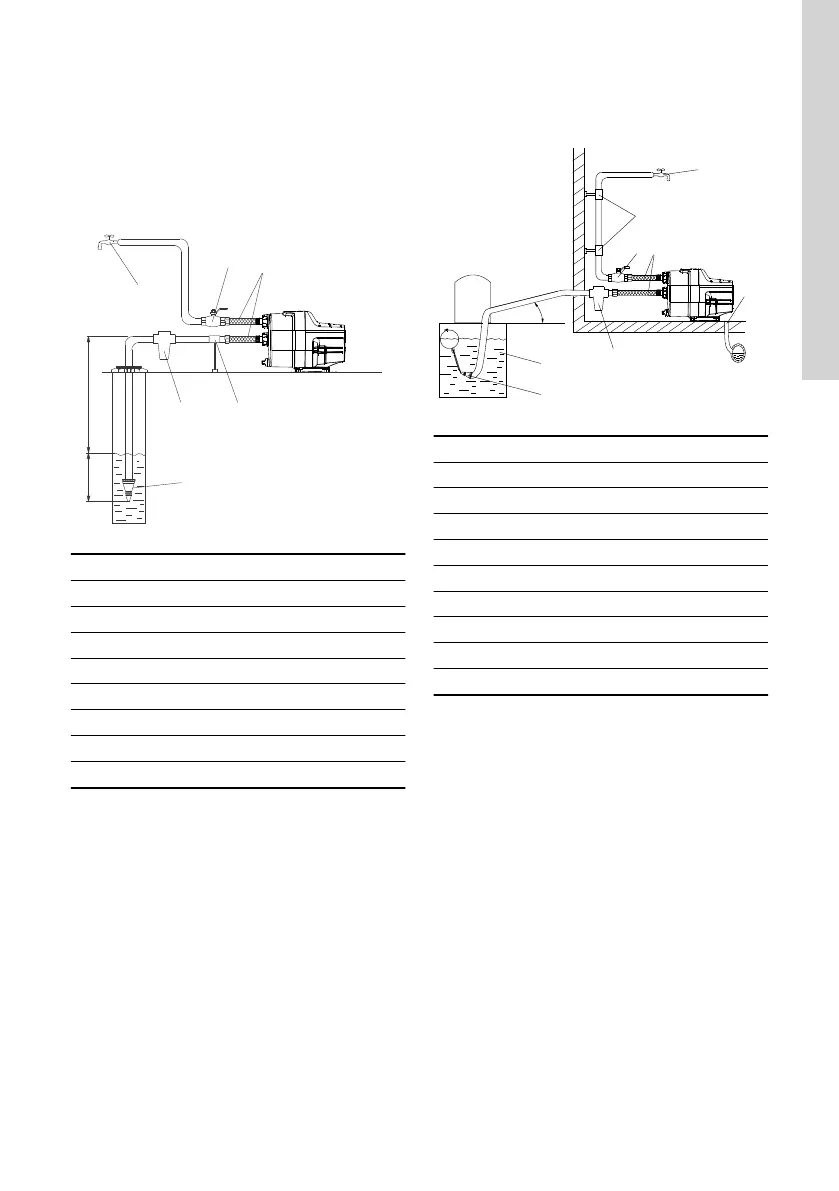

5.3 Installation examples
We recommend that you follow the installation
examples.
Valves are not supplied with the pump.
5.3.1 Suction from a well
6
5
4
2
3
1
H2
H1
TM075006
Pos. Description
1 Highest tapping point
2 Isolating valve
3 Flexible hoses
4 Pipe support
5 Inlet filter
6 Foot valve with strainer
H1 Maximum suction lift: 8 m
H2 Inlet pipe must be submerged at least 0.5 m
5.3.2 Suction from a tank
A
1
2
3
4
6
7
8
5
TM075007
Pos. Description
1 Highest tapping point
2 Pipe hangers
3 Isolating valve
4 Flexible hoses
5 Drain to sewer
6 Inlet filter
7 Freshwater tank
8 Foot valve with strainer
9 Minimum 1-degree inclination
11
English (GB)
