WARNING
Electric shock
Death or serious personal injury
‐ Do not use the product for aggressive
liquids. The product must only be used
for water.
WARNING
Toxic material
Death or serious personal injury
‐ Do not use the product for toxic liquids.
The product must only be used for
water.
If the water contains sand, gravel or other
debris, there is a risk of pump blockage
and pump damage. Install a filter on the
inlet side or apply a floating strainer to
protect the pump.
The product is suitable for pumping clean, thin, non-
aggressive and non-explosive liquids without solid
particles or fibres.
The product is designed for fresh water with a
maximum chloride content of 300 ppm and a free
chlorine content below 1 ppm.
Examples of liquids:
• drinking water
• rainwater.
2.4 Identification
2.4.1

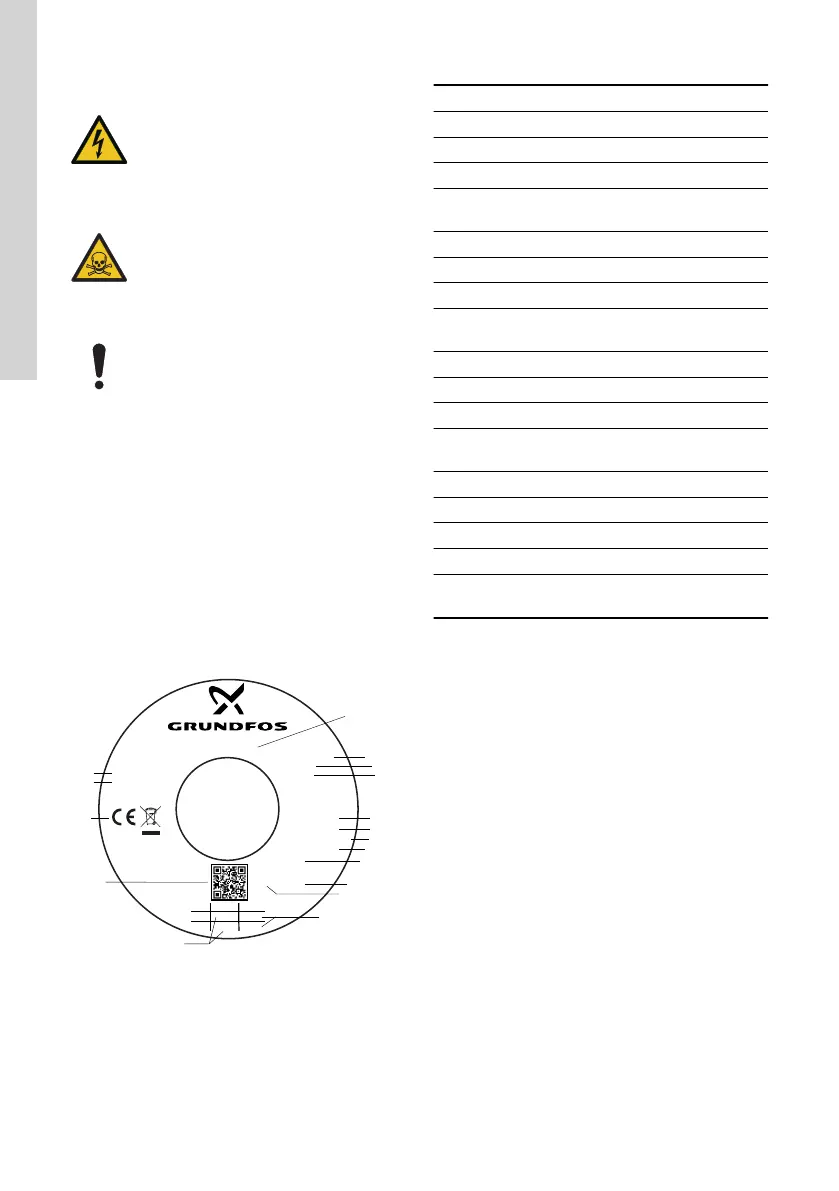

Nameplate for SCALA1
DK-8850 Bjerringbro Denmark
SCALA1 3-35
PN 99530404
Model A
1x230 V 50Hz
SN 00001
PC 19 36
Hmax
Hnom
Made in Hungary
Qnom
T.amb.max
Tliq.max/Psyst.max:
IP X4D
P1(W)I(A)
750
1,50,01Min.
Max.
3,3
45°C/0.8Mpa
35 m
20 m
3 m
3
/h
55 °C
1
2
3
4
5
6
7
8
9
10
11
12
17
16
13
14
15
TM075340
Example of nameplate
Pos. Description
1 Type designation
2 Product number
3 Serial number
4
Production code (year
and week)
5 Max. head
6 Nominal head
7 Nominal flow rate
8
Max. ambient
temperature
9 Enclosure class
10 Max. operating pressure
11 Max. liquid temperature
12
Minimum and maximum
rated power
13 Model
14 Voltage and frequency
15 Approvals
16 Product QR code
17
Minimum and maximum
rated current
6
English (GB)
