WARNING
Biological hazard
Death or serious personal injury
‐ Before the pump is used for supplying
drinking water, flush the pump
thoroughly with clean water.

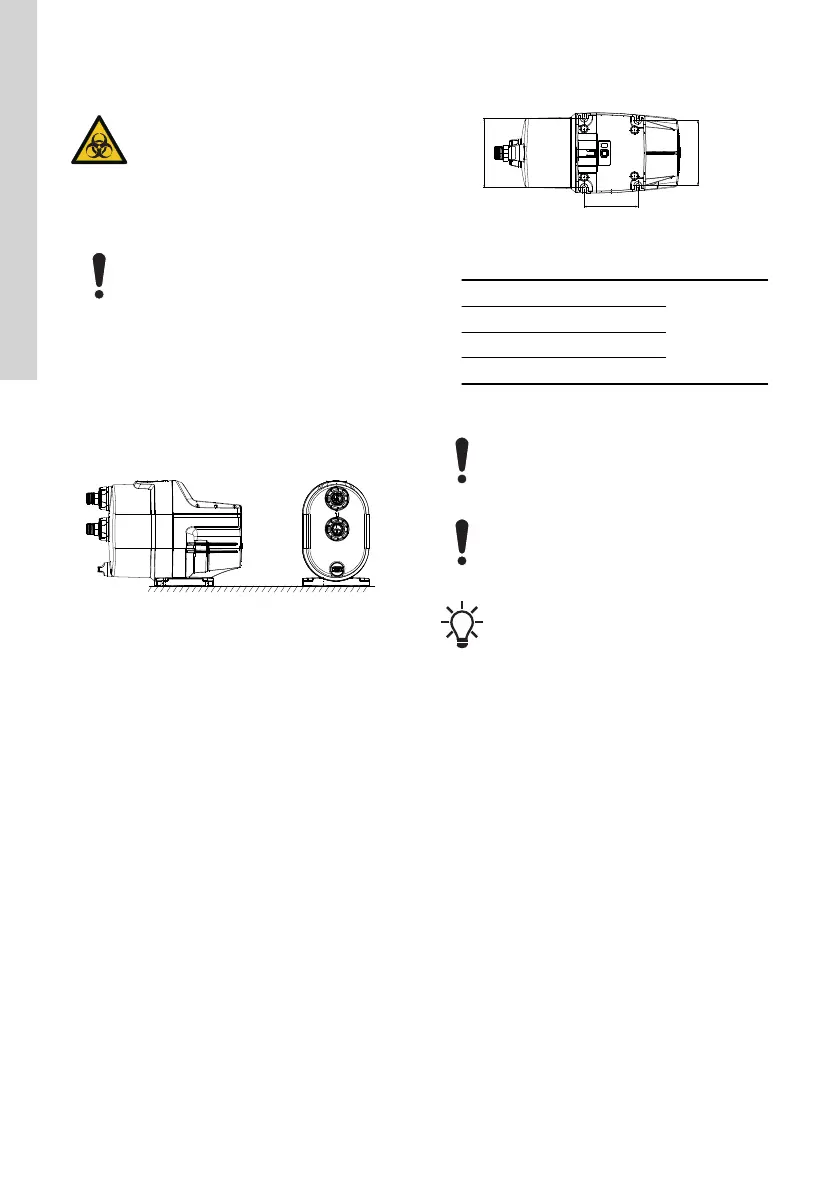

5.1 Positioning and mounting the product
Always place the product in a horizontal
position. A higher inclination can cause
electric shock due to condensation in the
electrical insulation inside the control box.
1. Place the product in a horizontal position with a
maximum inclination angle of ± 5 °. The base
plate must face downwards.
2. Fasten the product to a solid horizontal
foundation by means of screws through the holes
in the base plate.
TM075005
Horizontal foundation
TM075004
Base plate
[mm (in)]
A 135 (5.3)
B 163 (6.4)
C 174 (6.9)
5.2 Connecting the pipe system
Make sure that the pump is not stressed
by the pipe system.
Always loosen and tighten the union nuts
on the inlet and outlet ports by hand.
Damage to the inlet and outlet parts
increases the risk of leakage.
We recommend that you install isolating
valves on the inlet and outlet side of the
pump.
1. Turn the union nuts by hand to loosen the inlet
and outlet ports.
2. Seal the pipe fittings with thread sealing tape.
3. Carefully screw the inlet and outlet connections
onto pipe fittings using a pipe wrench or a similar
tool. Keep the union nut on the pipe fitting if you
have removed it from the pump. The pump is
equipped with flexible connections, ± 5 °, to
facilitate the connection of inlet and outlet pipes.
4. Fasten the connections to the inlet and outlet
ports by holding the connection with one hand
and tightening the union nut with the other hand.
8
English (GB)
