English (GB)
13
6.4 Identification
6.4.1 Nameplate

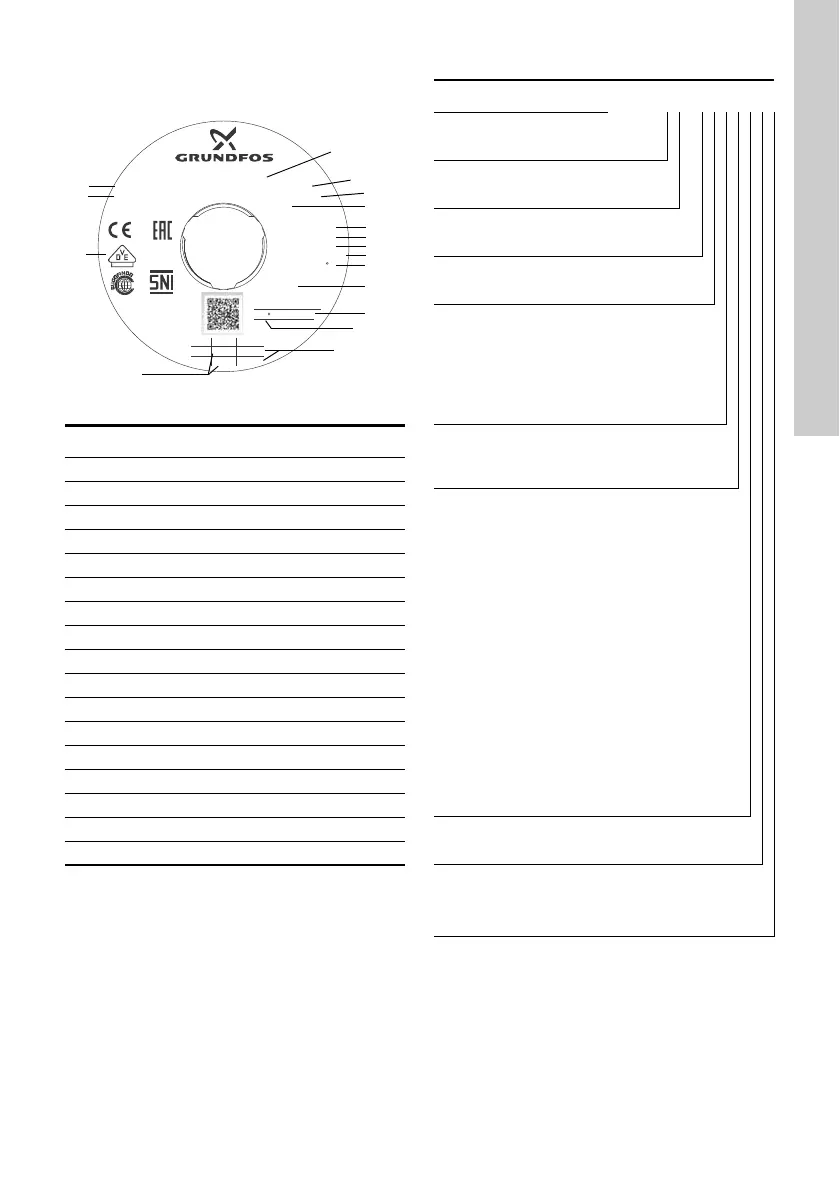

Fig. 13 Example of nameplate
6.4.2 Type key
TM06 4340 2015
Pos. Description
1 Type designation
2 Product number
3 Serial number
4 Production code, year and week
5 Maximum head
6 Minimum head
7 Rated head
8 Rated flow rate
9 Maximum ambient temperature
10 Enclosure class
11 Maximum operation pressure
12 Maximum liquid temperature
13 Minimum and maximum rated power
14 Model
15 Voltage and frequency
16 Approvals
17 Minimum and maximum rated current
DK-8850 Bjerringbro, Denmark
SCALA2 3-45 AKCHDE
Model A
200-240V 50/60Hz
Made in Serbia
P/N 99999999
S/N
P/C 1519
H
max
H
min
H
nom
Q
nom
45 m
16 m
27 m
3
m /h
3
45
C/
55
C
T
amb.max
IPX4D
I(A)
Min.
Max.
P1(W)
0.01
2.8 550
2
T
liq.max
/P
syst.max:
1MPa
NRP XXX-XXX-XXXXXX
PCS XXXXX.XX.XX 04-6292.2.41-2003
LSPr-022-IDN
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
12
SCALA2 3 -45 A KCHDE
Type range
SCALA2
Rated flow rate
3: [m
3
/h]
Maximum head
45: [m]
Material code
A: Standard
Supply voltage
K: 1 x 200-240 V, 50/60 Hz
M: 1 x 208-230 V, 60 Hz
V: 1 x 115 V, 60 Hz
W: 1 x 100-115 V, 50/60 Hz
Motor
C:
High-efficiency motor with frequency
converter
Mains cable and plug
A:
Cable with plug, IEC type I, AS/NZS3112,
2m
B:
Cable with plug, IEC type B, NEMA 5-15P,
6ft
C: Cable with plug, IEC type E&F, CEE7/7, 2 m
D: Cable without plug, 2 m
G: Cable with plug, IEC type G, BS1363, 2 m
H: Cable with plug, IEC type I, IRAM 2073, 2 m
J: Cable with plug, NEMA 6-15P, 6 ft
K: Cable with plug, IEC type B, JIS C 8302, 2 m
L:
Cable with plug, IEC type L, CEI 23-16/VII,
2m
O:
Cable with plug, IEC type O, TIS 166-2549,
2 m
Controller
D: Integrated frequency converter
Thread
E: R 1" composite material
F: NPT 1" composite material
