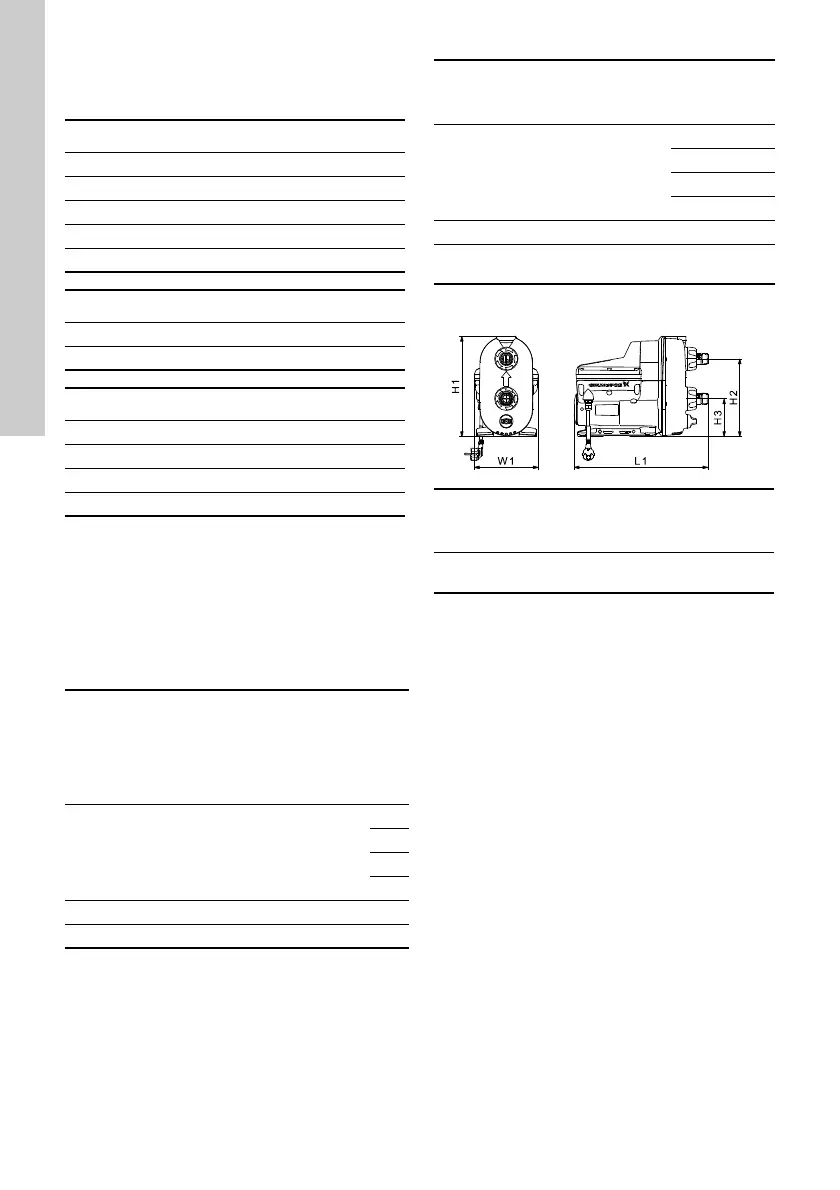

13. Technical data
13.1 Operating conditions
* 47 dB(A) is measured in a typical application with
pressure control mode (2.5 bar (36 psi) and 1
m
3
/h). In non-typical applications noise might
increase up to 58 dB.
13.2 Mechanical data
Pipe connections are R 1" or NPT 1".
13.3 Electrical data
13.4 Dimensions and weights
14. Disposing of the product
This product has been designed with focus on the
disposal and recycling of materials. The following
disposal values apply to all variants of Grundfos
SCALA2 pumps:
• minimum 85 % for recycling
• maximum 10 % for incineration
• maximum 5 % for depositing.
Values are percent of total weight.
This product or parts of it must be disposed of in an
environmentally sound way:
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.
See also end-of-life information on
www.grundfos.com/product-recycling.
Temperature [°C (°F)]
Maximum ambient temperature:
1 x 208-230 V, 60 Hz: 45 (113)
1 x 115 V, 60 Hz: 45 (113)
1 x 200-240 V, 50/60 Hz: 55 (131)
Maximum liquid temperature: 45 (113)
Pressure [bar (psi)]
Maximum system pressure: 10 (145)
Maximum inlet pressure: 6 (87)
Other operating data
Maximum head: 45 m (147 ft)
IP rating: X4D (outdoor installation)
Pumped liquid: Clean water
Noise level: < 47 dB(A)*
Type
Supply voltage
[V]
Frequency
[Hz]
I
max.
[A]
P1
[W]
Stand-by power
[W]
SCALA2 1 x 200-240 50/60 2.3 - 2.8 550
2
2
2
2
SCALA2 1 x 208-230 60 2.3 - 2.8 550 2
SCALA2 1 x 115 60 5 - 5.7 560 2
Type
Supply
voltage
[V]
Frequency
[Hz]
Plug
SCALA2 1 x 200-240 50/60
IEC, type E&F
IEC, type I
IEC, type G
None
SCALA2 1 x 208-230 60 NEMA 6-15P
SCALA2 1 x 115 60
IEC, type B,
NEMA 5-15P
TM06 3305 5114
Type
H1
[mm]
[inch]
H2
[mm]
[inch]
H3
[mm]
[inch]
W1
[mm]
[inch]
L1
[mm]
[inch]
Weight
[kg]
[lbs]
SCALA2
302
11.9
234
9.2
114
4.5
193
7.6
403
15.9
10
22
